STARTECH 2-PORT PCIE RS232SERIAL ADAPTER CARD, LTW PEX2S953
| SKU: | 384412 |
|---|---|
| MPN: | PEX2S953 Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.

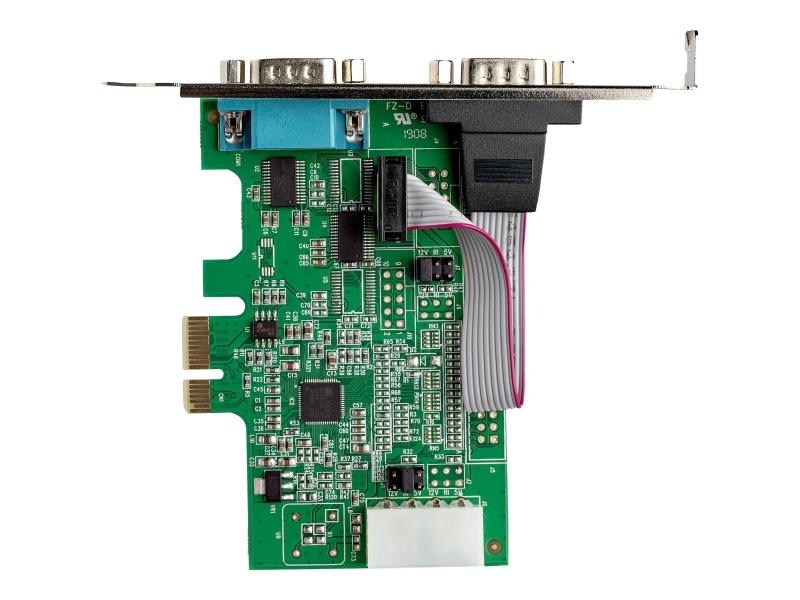

2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit | Upgraded version of our popular card PEX2S952
OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9; Each of the 2 ports are individually configurable
VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance
With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952.
Specifications
Warranty Information Warranty Lifetime
Connector(s) Connector Type(s) 1 - PCI Express x1 Internal Ports 1 - LP4 (4 pin; Large Drive Power) External Ports 2 - DB-9 (9 pin, D-Sub)
Environmental Operating Temperature -10°C to 80°C (14°F to 176°F) Storage Temperature -20°C to 100°C (-4°F to 212°F) Humidity 5~85% RH
Hardware Ports 2 Interface Serial Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Port Style Integrated on Card Chipset ID Asix AX99100
Packaging Information Package Height 1.2 in [3.0 cm] Package Length 5.6 in [14.2 cm] Shipping (Package) Weight 4.8 oz [136.0 g] Package Width 6.7 in [17.0 cm]
Performance Serial Protocol RS-232 Max Baud Rate 921.6 Kbps Data Bits 5, 6, 7, 8, 9 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2 MTBF 222,366 hours
Physical Characteristics Product Height 0.6 in [1.5 cm] Product Length 3.0 in [7.5 cm] Weight of Product 2.0 oz [56.0 g] Product Width 2.5 in [6.3 cm] Color Green Material Steel
Software OS Compatibility Windows® 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Linux 2.4.x to 2.6.x LTS Versions only Microsoft WHQL Certified Yes

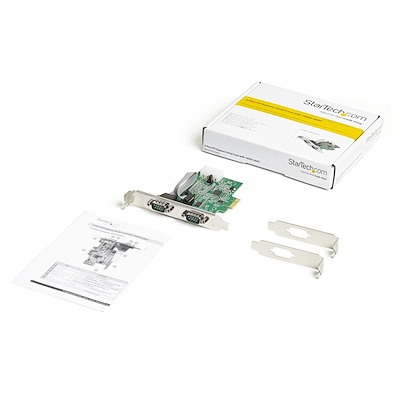

What's in the Box Included in Package 1 - Two Port Serial Card 2 - Low Profile Bracket 1 - Quick Start Guide
