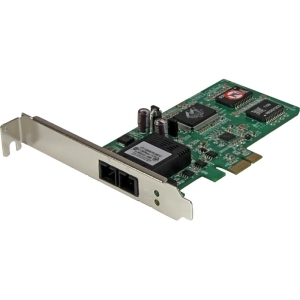

Startech Pci Express (pcie) Gigabit Ethernet Multimode Sc Fiber Network Card Adapter Nic - 550m
Description
Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.
With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.
Plus, the card is equipped with a standard profile bracket and includes a low-profile/half- height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Product Name | PCIE Geth MMF SC Network Card Adapter |
| Manufacturer Part Number | PEX1000MMSC2 |
| Packaged Quantity | 1 |
| Product Type | Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express x1 |
| Total Number of Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Network & Communication | |
| Network Technology | 1000Base-SX |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 4.6" |
| Depth | 4.6" |
| Thickness | 700 mil |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Device Supported | Computer |
| Green Compliant | Yes |
| Green Compliance Certificate / Authority | RoHS |
| Other Information | |
| Operating System Compatibility | Windows 8.1 Windows 8 Windows Vista Ultimate Windows XP Professional Windows 7 Ultimate Windows Server 2012 Windows Server 2003 Windows Server 2008 R2 Foundation Mac OS X 10.5 Leopard Mac OS X 10.9 Mavericks Linux 2.6.x Linux 2.4 |
| Certifications & Standards |
|
| System Requirements | Windows 10 |
| Platform Supported | PC Mac Linux |
| Stock Details | |
| Manufacturer | StarTech.com |
| Manuf Part# | PEX1000MMSC2 |
Specifications
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | Fiber Optic SC Duplex Female |
| Environmental | |
| Humidity | 5~95% RH (Non-Condensing) |
| Operating Temperature | 0?C to 45?C (32?F to 113?F) |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Realtek - RTL8168E Marvell - 88E1111B1 |
| Industry Standards | IEEE802.3z 1000BASE-SX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 |
| Interface | Fiber Ethernet |
| Ports | 1 |
| Indicators | |
| LED Indicators | Activity (Yellow) |
| Link (Green) | |
| Packaging Information | |
| Shipping (Package) Weight | 208 g [7.3 oz] |
| Performance | |
| Buffer Size | 48 KB |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 2000 Mbps (2 Gbps) - Full-Duplex |
| MTBF | 361, 978 hours |
| Physical Characteristics | |
| Product Height | 118 mm [4.6 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 66 g [2.3 oz] |
| Product Width | 18 mm [0.7 in] |
| Power | |
| Power Consumption (In Watts) | 3.2W Max |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X? 10.5 to 10.9 Linux 2.4.x to 4.11.x LTS Versions only Microsoft Hyper-V? |
| Special Notes / Requirements | |
| Note | Not compatible with 10/100 Mbps |
| What's in the Box | |
| Included in Package | 1 Port PCI Express Gigabit Fiber Network Card |
| Driver CD | |
| Instruction Manual | |
| Low Profile Bracket | |
Vendor Info
The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot.
Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.
With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.
Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
