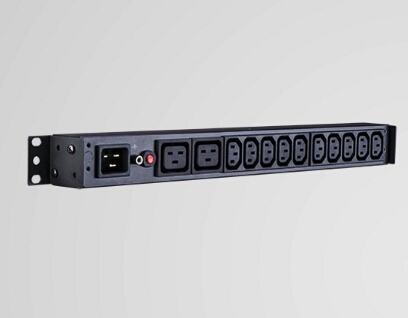

    Cyberpower- Basic Pdu (pdu20bhviec12ra) - 2 Years Advanced Replacement Warranty Pdu20bhviec12ra

    $204.00
    SKU:244313
    MPN:PDU20BHVIEC12Ra Link
    Manufacturer:https://www.cyberpower.com/
    Brand: Cyberpower
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    CyberPower PDU20BHVIEC12Ra power distribution unit provides outputs from a UPS unit, generator or utility power to enable multiple connected devices in datacenter environments. Designed with rugged, industrial-grade metal housing and an ultra-long input power cord, the product supports installation in demanding environments or where only distant power sources are available.

    FEATURES

    • Industrial-grade Metal Housing
    • Cord Retention Tray
    • Adjustable Mounting Brackets
    • External Site Ground Pin

    GENERAL

    Type
    Basic
    Phase
    Single Phase

    INPUT

    Nominal Input Voltage (Vac)
    200 ~ 240
    Input Frequency (Hz)
    50 / 60
    Maximum Input Current (A)
    16
    Input Connector Type
    IEC C20 x 1 　
    Power Cord Length (ft.)
    10
    Power Cord Length (m.)
    3.05

    OUTPUT

    Output Voltage (V)
    Depends on Input
    Overload Protection
    Circuit Breaker
    Over Current Protection (Each Bank) (A)
    16
    Outlet(s) - Total
    12
    Outlet(s) - Rear
    12
    Outlet Type
    IEC C19 x 2 　
    IEC C13 x 10 　

    PHYSICAL

    Installed Rack Height (U)
    1
    Form Factor
    1U Vertical Rackmount , 1U Horizontal Rackmount , Undercounter Installation Supported
    Enclosure Construction
    Steel
    Color
    Black
    Cord Retention Tray
    Yes
    External Site Ground Pin
    Yes
    Adjustable Mounting Brackets
    2 Set (L-short, L-long)

    PHYSICAL SIZE

    Dimensions (WxHxD) (in.)
    17.5 x 1.75 x 1.5
    Dimensions (WxHxD) (mm.)
    445 x 44.5 x 38.1
    Weight (lbs.)
    2
    Weight (kg.)
    0.9

    SHIPPING DIMENSIONS

    Dimensions (WxHxD) (in.)
    20.9 x 9.2 x 13
    Dimensions (WxHxD) (mm.)
    530 x 233 x 330
    Weight (lbs.)
    33
    Weight (kg.)
    15

    ENVIRONMENTAL

    Operating Temperature (°F)
    32 ~ 95
    Operating Temperature (°C)
    0 ~ 35
    Operating Relative Humidity (Non-condensing) (%)
    0 ~ 95
    Operating Elevation (feet/meters)
    0-10,000 feet (0-3,000 meters)
    Storage Temperature (°F)
    5 ~ 113
    Storage Temperature (°C)
    -15 ~ 45
    Storage Relative Humidity (Non-condensing) (%)
    0 ~ 95
    Storage Elevation (feet/meters)
    0-50,000 feet (0-15,000 meters)

    CERTIFICATIONS

    Certifications
    CE , UL60950
    RoHS
    Yes
    CyberPower- Basic PDU(PDU20BHVIEC12Ra) - 2 Years Advanced Replacement Warranty
