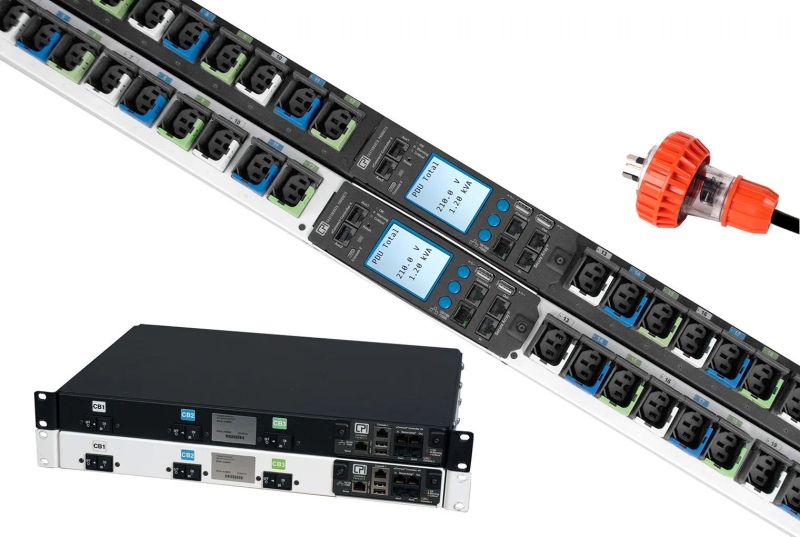

Enhance your data center's efficiency and security with the Chatsworth Monitored eConnect PDU. Designed for high-density racks, this intelligent power distribution unit provides real-time power monitoring with ±1% metering accuracy. Its integrated LCD display and Secure Array IP Consolidation allow seamless network management, while SNMPv1/v2/v3, RESTful API, CLI, and LDAP/Radius integration offer flexible remote access.

Equipped with (24) C13 locking outlets, this PDU ensures reliable power delivery while preventing accidental disconnections. The IEC 60309 15A input with a AS/NZS 3112 15A 3-Pin Flat inlet supports a 3.8kW power capacity, while 100% rated hydraulic magnetic breakers provide superior overload protection. Its tool-less vertical mounting simplifies installation in 42U and higher cabinets.

The field-replaceable controller enhances serviceability, while environmental sensor and electronic lock integration readiness add an extra layer of security. Operating at temperatures up to 149°F (65°C), this PDU is built for demanding IT environments.



FEATURES:

- Vertical PDU for 42U & higher cabinets
- (24) C13 locking outlets for secure connections
- Secure Array IP Consolidation for network efficiency
- ±1% metering accuracy with LCD display
- AS/NZS 3112 15A 3-Pin Flat inlet, 3.8kW capacity
- Onboard GUI, SNMPv1/v2/v3, RESTful API, and CLI support
- Environmental sensor & electronic lock integration ready
- 100% rated hydraulic magnetic breakers for protection
- Tool-less mounting for quick installation

SPECIFICATIONS:

- Input Type: AS/NZS 3112 15A 3-Pin Flat
- Outlets: (24) C13 locking outlets
- Maximum Power Capacity: 3.8kW
- Metering Accuracy: ±1%
- Communication: 10/100/1000MB port, SNMPv1/v2/v3, RESTful API, CLI
- Authentication: LDAP & Radius integration, HTTPs
- Operating Temperature: Up to 149°F (65°C)
- Breakers: 100% rated hydraulic magnetic
- Mounting: Vertical, tool-less installation
- Color: Black

PRODUCT SHOWCASE


WARRANTY:
1-Year Limited Warranty
