Startech 4 Port Pci Superspeed Usb 3.0 Adapter Card With Sata/ Sp4 Power - Quad Port Pci Superspeed
| SKU: | 190379 |
|---|---|
| MPN: | PCIUSB3S4 Link |
| Manufacturer: | http://www.startech.com/ |
| Brand: | Lexmark |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description

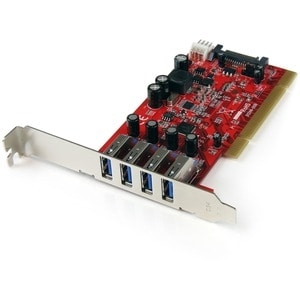

4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power - Quad Port
PCI SuperSpeed USB 3 Controller Card with SATA/SP4 Power
by Startech
Category: Cables
Sub Category: Computer Cables & Adapters
Product Type: Usb Cables & Adapters
Add 4 SuperSpeed USB 3.0 ports to a computer through a PCI slot. The PCIUSB3S4
4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed
USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using
USB 3.0 devices with this card will increase data transfer rates with up to 1.3
Gbps of available bandwidth (PCI bus limit) - more than doubling performance
compared to a USB 2.0 connection.
This versatile USB 3.0 adapter includes an optional SATA power connector which
allows each USB port to deliver up to 900mA of power to connected USB 3.0
devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI
expansion slots remaining, the card allows those systems to stay relevant and
up-to-date with the latest USB technology. The card is also backward compatible
with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0
devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.0 Card is backed by StarTech.com lifetime
warranty and free lifetime technical support.
Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI
Product Type: USB Adapter
Total Number of USB Ports: 4
Specifications
| Connector(s) | |
| Connector Type(s) | PCI / PCI-X (Universal 3.3 & 5V, 32-bit) |
| External Ports | USB Type-A (9 pin) USB 3.0 Female |
| Internal Ports | SATA Power (15 pin) Plug |
| SP4 (4 pin, Small Drive Power) Plug | |
| Environmental | |
| Humidity | 15% ~ 90% RH |
| Operating Temperature | 5?C to 50?C (41?F to 122?F) |
| Storage Temperature | -25?C to 70?C (13?F to 158?F) |
| Hardware | |
| Bus Type | PCI / PCI-X (5 / 3.3V) |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Renesas/NEC - ?PD720202 |
| Interface | USB 3.0 |
| Ports | 4 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Performance | |
| Maximum Data Transfer Rate | 1.3 Gbps (PCI Bus) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Red |
| Product Height | 65 mm [2.6 in] |
| Product Length | 133 mm [5.2 in] |
| Product Weight | 80 g [2.8 oz] |
| Product Width | 20 mm [0.8 in] |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI slot |
| Available SATA or Floppy power connector | |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low Profile Bracket | |
| PCI USB 3.0 Card | |
Vendor Info
The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.
This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.0 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
