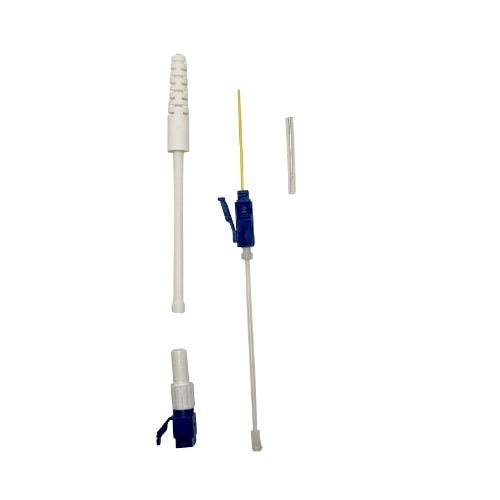

Achieve reliable, high-performance fibre terminations in the field with the LC Singlemode UPC Splice-On Connector. This innovative connector combines the precision of a fusion splice with the convenience of a pre-terminated connector, eliminating the need for epoxy, hand polishing, or crimping. Its design, featuring a factory-polished ferrule and a pre-cleaved fibre stub, ensures a quick, clean, and highly efficient installation process every time, dramatically reducing setup time and potential for error.

Engineered for excellence, this splice-on connector delivers superior optical performance with consistently low insertion loss and high return loss. This makes it an ideal solution for demanding applications, including Fibre to the Home (FTTH) networks, cable TV systems, and data centre installations. It provides a robust and stable connection that maintains signal integrity for long-term reliability.

The connector's versatility allows it to be used on 900µm buffered fibre and includes boots for terminating 2.0mm cables, providing flexibility for various field repair and installation scenarios. By simplifying the termination process without compromising on quality, this LC Splice-On Connector is an essential tool for any technician looking to streamline their workflow and deliver professional-grade results with confidence.

FEATURES
Field-terminable for on-site applications
Factory-polished ferrule eliminates hand polishing
No epoxy or crimping required for installation
Combines fusion splice reliability with connector simplicity
Fast, easy, and reliable termination process
Low insertion loss for optimal signal integrity
High return loss performance
SPECIFICATIONS
Connector Type: LC/UPC
Fibre Type: Singlemode (9/125µm)
Applicable Cable: 900µm buffered fibre, with boots for 2.0mm cable
Insertion Loss (IL): Typical ≤0.2dB, Max ≤0.5dB
Return Loss (RL): ≥55dB
Tensile Strength: >30N
Durability: ≤0.2dB typical change after 500 matings
Operating Temperature: -40 to +85°C
WARRANTY

1-Year Limited Warranty
