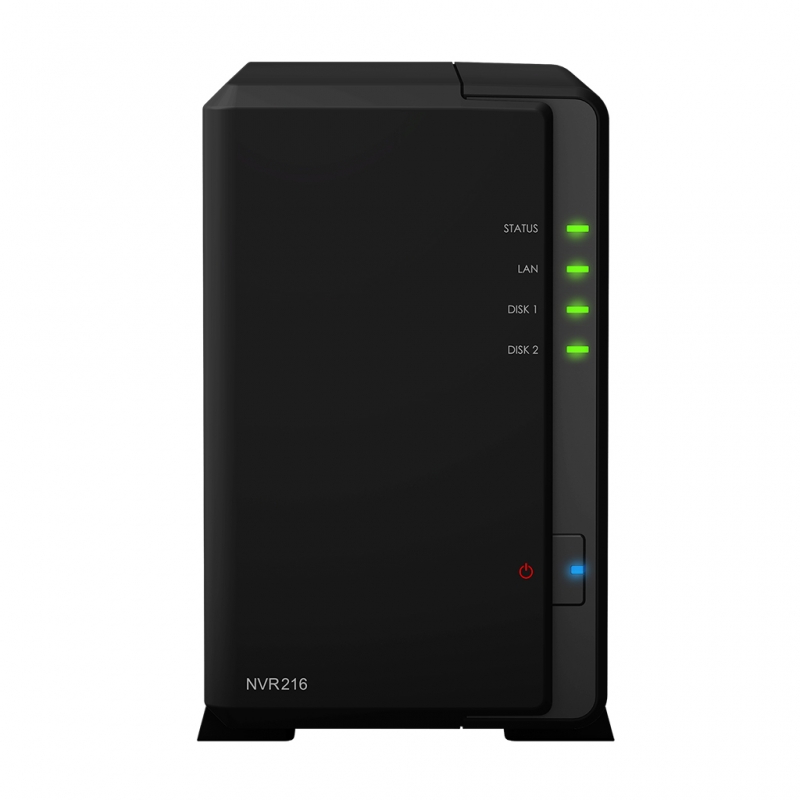

Synology NVR216 Network Video Recorder 4 Channel NVR216 4 Channel
Special Price $557.00 Regular Price $640.00
| SKU: | 210353 |
|---|---|
| MPN: | NVR216 4 Channel Link |
| Manufacturer: | https://www.synology.com |
| Brand: | Synology |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Synology Network Video Recorder NVS216 is the first PC-less , all in one , and enevery efficient private surveillance solution from Synology. Featuring a dedicated HDMI output to display 1080p surveillance station on a monitor without the need for a computer. NVR216 is available in 4 or 9 channels configuration with each camera configured at 720p/30fps.
Specification:
•CPU: Embedded NVR SoC dual-core 1.0Ghz
•RAM size : DDR3 1GB
•Compatible drive type : 3.5/2.5" SATA III/II x 2 ( HDD not included. Disk holder required for 2.5" )
•USB: 1 x USB 3.0 , 2 x USB 2.0 , eSATA x 1
•Video Output: HDMI x1
•Audio Output: 3.5mm Stereo Audio Jack x2
•Supported video output res : 1920 x 1080 (1080p) , 60Hz
•Size (HxWxD) (mm) : 130x130x32 mm
•Weight:0.9 kg
•LAN: Gigabit (RJ45) x 1
•AC Input Power Voltage: 100V to 240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Operating Temperature: 5
Specification:
•CPU: Embedded NVR SoC dual-core 1.0Ghz
•RAM size : DDR3 1GB
•Compatible drive type : 3.5/2.5" SATA III/II x 2 ( HDD not included. Disk holder required for 2.5" )
•USB: 1 x USB 3.0 , 2 x USB 2.0 , eSATA x 1
•Video Output: HDMI x1
•Audio Output: 3.5mm Stereo Audio Jack x2
•Supported video output res : 1920 x 1080 (1080p) , 60Hz
•Size (HxWxD) (mm) : 130x130x32 mm
•Weight:0.9 kg
•LAN: Gigabit (RJ45) x 1
•AC Input Power Voltage: 100V to 240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Operating Temperature: 5
Specifications
▼
| CPU | Embedded dual-core 1.0 GHz NVR SoC (32-bit) |
|---|---|
| SKU | NVR216 4 Channel |
| Brand | Synology |
| Model | NVR216 (4CH) |
| Ports | LAN: 1 x Gigabit Ethernet (RJ45) USB: 2 x USB 2.0, 1 x USB 3.0 HDMI: 1 x HDMI (1080p) eSATA: 1 x eSATA Audio In/Out: 1 x 3.5 mm input, 1 x 3.5 mm output |
| Power | Voltage: 100 to 240 VAC Frequency: 50/60 Hz, single phase Power Supply: 60 W Power Consumption: { "Access": "14.14 W", "HDD Hibernation": "5.09 W" } |
| Memory | 1 GB DDR3 |
| Weight | Product: 0.9 kg (2.0 lb) |
| Storage | Expansion: Supports Synology DX513 expansion unit (up to 7 drive bays total) Internal Drive Bays: 2 Internal Raw Capacity: Up to 16 TB (2 x 8 TB) Maximum Single Volume: 16 TB Supported Drive Types: [ "3.5\" SATA III / SATA II HDD", "2.5\" SATA III / SATA II HDD/SSD" ] Max Capacity With Expansion: Up to 56 TB (7 x 8 TB) |
| Category | Physical Security |
| Channels | 4 |
| Dimensions | Product (mm): 165.0 x 100.0 x 225.5 Product (inches): 6.5 x 3.9 x 8.9 |
| Mobile App | DS cam (iOS and Android) for live view, playback, PTZ control and notifications |
| Description | Synology NVR216 is a compact 4-channel network video recorder (NVR) that manages, records, and plays back IP camera streams via Synology DiskStation Manager (DSM) and the Surveillance Station package. It supports up to 5MP resolution, H.264/MJPEG/MPEG-4 compression, local HDMI output (1080p), two-way audio via 3.5 mm jacks, and mobile access through the DS cam app. The unit includes two internal SATA drive bays (supports 2.5"/3.5" SATA HDD/SSD) for up to 16 TB raw internal capacity and can be expanded with the Synology DX513 expansion unit to a total of 7 bays (up to 56 TB). Built on a dual-core 1.0 GHz SoC with 1 GB DDR3 memory, the NVR216 provides motion notifications, Wake-on-LAN support, and flexible RAID and file system options for small business or personal surveillance deployments. |
| PTZ Support | Yes (via compatible cameras and Surveillance Station) |
| File Systems | External Drives: [ "EXT4", "EXT3", "FAT", "NTFS", "HFS+ (read-only, max volume 2 TB)" ] Internal Drives: [ "EXT4" ] |
| Sub-Category | Video Surveillance |
| Cooling / Fan | Fan Size: 80 x 80 mm Fan Modes: [ "cool", "quiet" ] Noise Level: 19 dB |
| Product Title | Synology NVR216 4-Channel 5MP Network Video Recorder |
| Software / OS | Synology DiskStation Manager (DSM) with Surveillance Station package |
| Audio Features | Two-way audio support when paired with cameras that include mic/speaker |
| Network Features | Wake-on-LAN Gigabit Ethernet |
| Camera Compatibility | Broad IP camera compatibility via Surveillance Station camera packs (examples: D-Link, Axis, Foscam, Netgear and many others) |
| Supported RAID Types | Synology Hybrid RAID (SHR) Basic JBOD RAID 0 RAID 1 RAID 5 (with expansion unit) RAID 6 (with expansion unit) |
| Miscellaneous Features | Local monitor support via HDMI Public view monitor support Motion detection notifications via email, SMS or push Can function as a small NAS with DSM features (File Station, Hyper Backup, Cloud Sync, VPN/Firewall) |
| Supported Audio Codecs | PCM ADPCM G.711 G.726 AMR AAC |
| Supported Video Codecs | H.264 MJPEG MPEG-4 |
| Frames Per Second (examples) | H.264: [ "120 fps @ 720p (1280 x 720) - 4 channels", "120 fps @ 1080p (1920 x 1080) - 4 channels", "50 fps @ 3 MP (2048 x 1536) - 4 channels", "30 fps @ 5 MP (2591 x 1944) - 3 channels" ] MJPEG: [ "90 fps @ 720p (1280 x 720) - 4 channels", "40 fps @ 1080p (1920 x 1080) - 4 channels", "10 fps @ 3 MP (2048 x 1536) - 1 channel", "10 fps @ 5 MP (2591 x 1944) - 1 channel" ] |
| Maximum Supported Resolution | 5 MP (2591 x 1944) |
| Camera Licenses / Expandability | Ships as a 4-channel unit; additional camera licenses can be purchased to expand the number of managed cameras (models/configurations may allow up to 9 channels with added licenses) |
