Socomec: Netys Pr Rt 3300va Tower/ Rack Ups Npr-3300-rt
SKU: | 251392 |
---|---|
MPN: | 012.009.3300 Link |
Manufacturer: | https://www.socomec.com/ |
Brand: | Socomec |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
Details

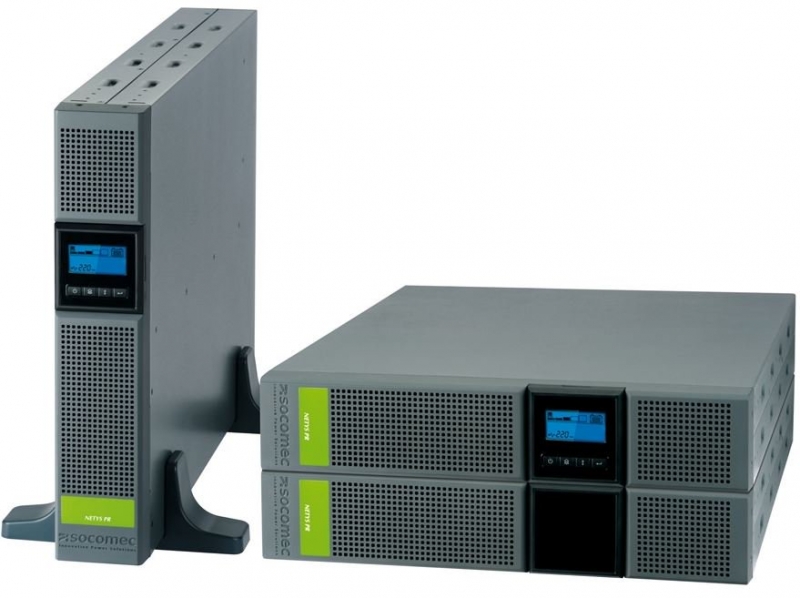

Socomec : NETYS PR RT 3300VA Tower / Rack UPS
The NETYS PR is a Line Interactive, true Sinewave Output 3300VA Universal tower / 2U rack UPS. It is a versatile, convertible high performance UPS solution for professional and IT equipment, servers and networking devices, CAD/ Graphic workstations with monitors and peripherals and control systems
Features
- A secure and professional supply continuity
- Ideal solution for protecting small servers, networking devices and peripherals.
- Assures service continuity to critical applications.
- Designed for professional applications: the sinevawe inverter technology assures full compatibility with any kind of load and power supply.
- Tailored to IT networking : The space and time-saving tower/rack conversion option means it can be installed easily either in tower mode or inside standard 19” rack cabinets depending on the user’s needs.
- Simple to install : No configuration needed on first startup.
- Compact footprint (2U/89 mm) for installation in rack cabinets.
- Attractive design for visible installation in offices.
- USB port and HID protocol as standard for direct interfacing with Windows systems®, without the need for additional specialist software.
- Protection for your data line: Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage.
- Meets practical needs: Optional battery extension modules (EBM) to meet all back-up time requirements, even after installation.
- Clear and uncluttered LCD interface, with buzzers that immediately indicate the operating status of the UPS, even for less specialist users.
- Simplified maintenance and Battery `hot swap’, without closing down other applications.
- Easy to use and to integrate
- Wide range of communication protocols available in options (including JBUS, TCP/ IP and SNMP) for integration into LAN networks or building management systems (BMS) · Easy connections to the applications
- Wide range of communication protocols available in options (including JBUS, TCP/ IP and SNMP) for integration into LAN networks or building management systems (BMS) · Easy connections to the applications (depending on power) via 8 or 8+1 IEC 320 (IT standard) sockets.
- Load segmentation function to prioritize loads and manage critical situations.
- EPO (Emergency Power Off) emergency stop.
- RS232 advanced connections for the management of the power supply and local/ remote shutdown of applications.
Standard and Option Feature
Standard communication features
• LOCAL VIEW: ideal UPS monitoring and shutdown point-to-point solution for Windows®, Linux and Mac OS X operating systems.
• HID: UPS management based on Windows® embedded service - USB interface.
• MODBUS/JBUS RTU (RS232).
Communication options
• NET VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems.
• Dry-contact interface.
Specifications
Specifications
- Line Interactive
- True Sinewave output
- 3300VA, Universal tower / 2U rack,
- 19" rails
- LCD Display
- USB + RS232 communications port + free slot for Netvision SNMP / ADC dry contact cards
- 8 x IEC outlets
- Iincludes 3 pin Aust input cord + 2 x IEC output cords
- EPO (emergency power off function)
- Local software included (Windows, Linux and Mac OS X)
- Internal batteries included
- Max 2 additional EBM (extra batteries)
UPS and internal batteries
|
|
Control panel
| 1. On / Off 2. Load present 3. Load level (5 steps) 4. General Alarm 5. Battery fault / Replace the battery 6. Overload 7. Battery capacity 8. Normal mode / Battery mode (flashing) 9. Automatic Voltage / Regulation active 10. Configuration 11. Programmable outlets 12. Input value 13. UPS test / Buzzer off 14. Navigator button 15. Enter |
Technical data
Sn | 1700 VA | 2200 VA | 3300 VA |
Pn | 1350 W | 1800 W | 2700 W |
Input / output | 1/1 |
Input | |||
---|---|---|---|
Rated voltage | 230 V | ||
Voltage tolerances | 161 V ±4% (selecting wide mode) -276 V ±4% | ||
Rated frequency | 50 / 60 Hz with automatic selection | ||
Mains connection | IEC320-C14 (10 A) | IEC320-C20 (16 A) |
Output | |||
---|---|---|---|
Automatic Voltage Regulation (AVR) | The AVR increases (boost 1) the output voltage by 14% when the input voltage drops below 90% of the nominal value. The AVR decreases (bucks) the output voltage by 12% when the input voltage rises above 106% of the nominal value. | ||
Rated voltage | 230 V ±5% | ||
Rated frequency | 50/60 Hz ±1% | ||
Wave form | Sine wave | ||
Protection | Normal Mode: overload (110% for 3 minutes) Battery Mode: overload (110% for 30 seconds); shortcircuit protected | ||
Sockets | 8 (10 A) x IEC 320 | 8 (10 A) x IEC 320 1 (16 A) x IEC 320 |
Batteries | ||||
---|---|---|---|---|
Type | Sealed lead-acid maintenance free - expected life 3/5 years | |||
Back-up time (1) | 6 min | 8 min | 6 min |
Communication | |||
---|---|---|---|
Interface | RS232 - USB NET VISION (TCP/IP & SNMP) optional card | ||
Local communication software | Local View | ||
Data line protection | NTP data line suppressor: RJ45 10 Base T |
UPS Cabinet | |||
---|---|---|---|
Dimensions (W x D x H) [mm] | 440 x 436 x 87 mm | 440 x 608 x 87 mm | |
Weight | 18 kg | 28.2 kg | 31.5 kg |
Standards | |||
---|---|---|---|
Safety | EN 62040-1, AS 62040-1 | ||
EMC | EN 62040-2, AS 62040-2 | ||
Product declaration | CE, C-Tick (N876) |
(1) @ 75% of load
