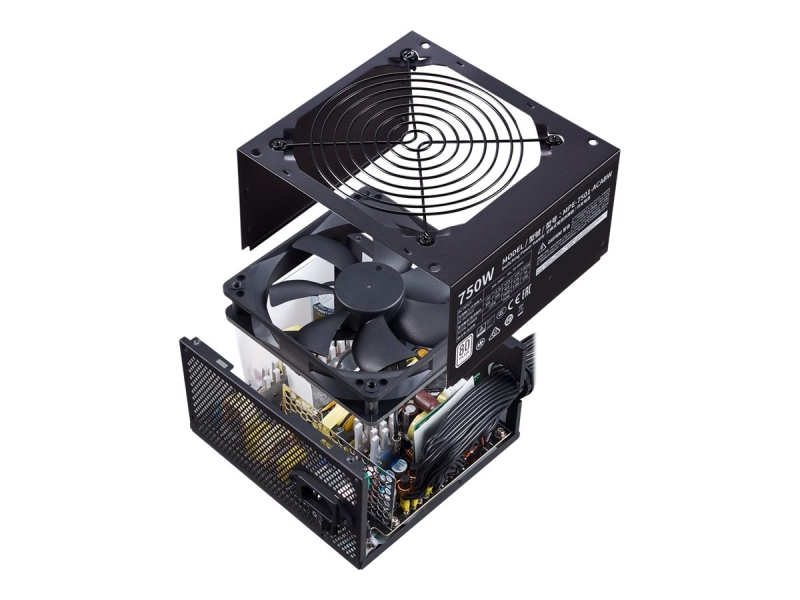

    Cooler Master Mwe White 230V 750W 80Plus Single +12V Rail 120Mm Hdb Fan Mpe-7501-Acabw-Au

    $102.00
    SKU:279814
    MPN:MPE-7501-ACABW-AU Link
    Manufacturer:https://www.coolermaster.com
    Brand: Coolermaster
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    Untitled 1
    MODEL
    MPE-7501-ACABW
    ATX VERSION
    ATX 12V Ver. 2.52
    PFC
    Active PFC
    INPUT VOLTAGE
    200-240Vac
    INPUT CURRENT
    6A
    INPUT FREQUENCY
    50-60Hz
    DIMENSIONS (L X W X H)
    140 x 150 x 86 mm
    FAN SIZE
    120mm
    FAN BEARING
    HDB
    FAN SPEED
    2400 RPM
    NOISE LEVEL @ 20%
    11.12 dBA
    NOISE LEVEL @ 50%
    20.3 dBA
    NOISE LEVEL @ 100%
    39.5 dBA
    EFFICIENCY
    85% Typically
    80 PLUS RATING
    80 PLUS Standard 230V EU
    ERP 2014 LOT 3
    Yes
    OPERATING TEMPERATURE
    40°C
    POWER GOOD SIGNAL
    100-500ms
    HOLD UP TIME
    >14ms at 100% full load@230Vac
    MTBF
    >100,000 Hours
    PROTECTIONS
    OVP, OPP, SCP, UVP, OTP
    REGULATORY
    CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB
    ATX 24-PIN CONNECTORS
    1
    EPS 4+4 PIN CONNECTORS
    1
    EPS 8 PIN CONNECTOR
    1
    SATA CONNECTORS
    6
    PERIPHERAL 4-PIN CONNECTORS
    3
    PCI-E 6+2 PIN CONNECTORS
    4
    SERIE
    MWE Series
    80 PLUS
    Standard
    MODULAR
    Non Modular
    WATTAGE
    500 to 750W
