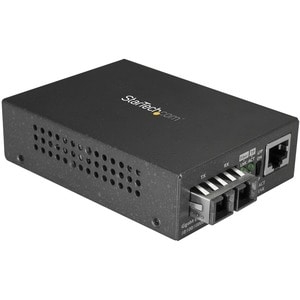

Startech Media Converter - Fiber 1000base-lx Sm Mcmgbscsm10
| SKU: | 271574 |
|---|---|
| MPN: | MCMGBSCSM10 Link |
| Manufacturer: | https://www.startech.com |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
This fiber media converter converts and extends a Gigabit Ethernet fiber (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| General Information | |
|---|---|
| Brand Name: | StarTech.com |
| Manufacturer Part Number: | MCMGBSCSM10 |
| Manufacturer Website Address: | http://www.startech.com/au |
| Manufacturer: | StarTech.com |
| Packaged Quantity: | 1 |
| Product Name: | Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km |
| Product Type: | Transceiver/Media Converter |
| Interfaces/Ports | |
|---|---|
| Network (RJ-45): | Yes |
| Number of Network (RJ-45) Ports: | 1 |
| Number of SC Ports: | 1 |
| SC Port Type: | Duplex |
| Total Number of Ports: | 2 |
| Media & Performance | |
|---|---|
| Fiber Mode Supported: | Single-mode |
| Fiber Optic Wavelength: | 1310 nm |
| Maximum Distance Supported: | 10 km |
| Media Type Supported: | Optical Fiber |
| Twisted Pair | |
| Miscellaneous | |
|---|---|
| Environmentally Friendly: | Yes |
| Network & Communication | |
|---|---|
| Ethernet Technology: | Gigabit Ethernet |
| Network Technology: | 1000Base-LX |
| 1000Base-T | |
| Physical Characteristics | |
|---|---|
| Depth: | 71.1 mm |
| Form Factor: | Wall Mountable |
| Height: | 25.4 mm |
| Weight (Approximate): | 195.6 g |
| Width: | 104.1 mm |
| Power Description | |
|---|---|
| Power Source: | AC Adapter |
Vendor Info
| Marketing Text | This fiber media converter converts and extends a Gigabit Ethernet fiber (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks. The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. |
| PI Date | Oct 2018 |
| Brand Name | Startech |
| Manufacturer Web Site | http://www.startech.com |
| Product Type | Media Converter |
| Converter Type | Gigabit Ethernet |
| Mode | Full Duplex |
| Fiber Supported | Single Mode |
| Depth (mm) | 70.0 |
| Height (mm) | 26.0 |
| Width (mm) | 105.0 |
| Weight (Kg) | 196.0 |
| Power Consumption | 5Watt |
| Operating Temperature | 0 to 50°C |
| Other Features | * Provides a cost-effective Ethernet to fiber/copper to fiber link * Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection) * Maximum Data Transfer Rate: 1000 Mbps (1 Gbps) |
