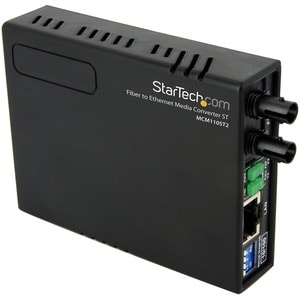

StarTech.com Transceiver/Media Converter - Taa Compliant - 2 Port(s) - 1 X Network (Rj-45) - 1 X St - DuplexST Port - Optical Fiber, Twisted Pair - Multi-mode - 1310 Nm Fiber - Fast Ethernet - 10Base-T, 100Base-FX, 100Base-FX - 2 Km - Ac Adapter - Extern
al MCM110ST2
$127.00
| SKU: | 201026 |
|---|---|
| MPN: | MCM110ST2 Link |
| Manufacturer: | http://www.startech.com/au |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone. The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability. Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Specifications
▼
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 2 km |
| Power Source | AC Adapter |
| Form Factor | External |
| Network Technology | 100Base-FX, 10Base-T |
| Brand Name | StarTech.com |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| TAA Compliant | Yes |
| Manufacturer Part Number | MCM110ST2 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km |
| Fiber Optic Cable Wavelength | 1310 nm |
| Additional Information | • Plug Type: M • Fiber Operating Mode: Half/Full-Duplex |
| Environmentally Friendly | Yes |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/mcm110st2_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/mcm110st2_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/mcm110st2_weee.pdf |
| Weight (Approximate) | 82.2 g |
| Height | 20.3 mm |
| Width | 76.2 mm |
| Depth | 94 mm |
| Power Consumption | 2.40 W |
| Plug/Connector Type | Type M |
| Shipping Dimensions | Height 6.4, Width 14.6, Length 17.6, Shipping Weight 0.3 KG |
Vendor Info
▼
StarTech.com Transceiver/Media Converter - TAA Compliant - 2 Port(s) - 1 x Network (RJ-45) - 1 x ST - DuplexST Port - Optical Fiber, Twisted Pair - Multi-mode - 1310 nm Fiber - Fast Ethernet - 10Base-T, 100Base-FX, 100Base-FX - 2 km - AC Adapter - External
