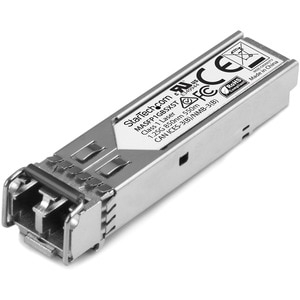

StarTech.com Sfp (mini-GBIC) - 1 X Lc Duplex 1000Base-SX Network - 1 Each - For Data Networking, Optical Network - Optical Fiber - Multi-mode - Gigabit Ethernet - 1000Base-SX - Hot-pluggable, Hot-swappable MASFP1GBSXST
MM LC - 550m (1804ft) - 850nm - Mini-GBIC MASFP1GBSXST
Special Price $56.00 Regular Price $64.00
| SKU: | 245568 |
|---|---|
| MPN: | MASFP1GBSXST Link |
| Manufacturer: | http://www.startech.com/au |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft). Technical Specifications: Wavelength: 850nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550m (1804 ft) MTBF: 1,967,709 hours Power Consumption: Less than 1.2 Watts Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. More from the Manufacturer More from the Manufacturer
Specifications
▼
| Product Type | SFP (mini-GBIC) |
| Form Factor | Hot-swappable, Hot-pluggable |
| Network Technology | 1000Base-SX |
| Brand Name | StarTech.com |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 1 |
| Manufacturer Part Number | MASFP1GBSXST |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Connector Type | LC |
| Fiber Mode Supported | Multi-mode |
| Compatibility | • MSA Compliant Cisco Meraki Switches: • MS225 • MX400 • MS250 • MS350 • MX84 |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/masfp1gbsxst_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/masfp1gbsxst_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/masfp1gbsxst_weee.pdf |
| Weight (Approximate) | 14.2 g |
| Height | 12.7 mm |
| Width | 12.7 mm |
| Depth | 55.9 mm |
| Application/Usage | Optical Network, Data Networking |
| Shipping Dimensions | Height 3.3, Width 9.4, Length 11.5, Shipping Weight 0.04 KG |
Vendor Info
▼
StarTech.com SFP (mini-GBIC) - 1 x LC Duplex 1000Base-SX Network - 1 Each - For Data Networking, Optical Network - Optical Fiber - Multi-mode - Gigabit Ethernet - 1000Base-SX - Hot-pluggable, Hot-swappable
