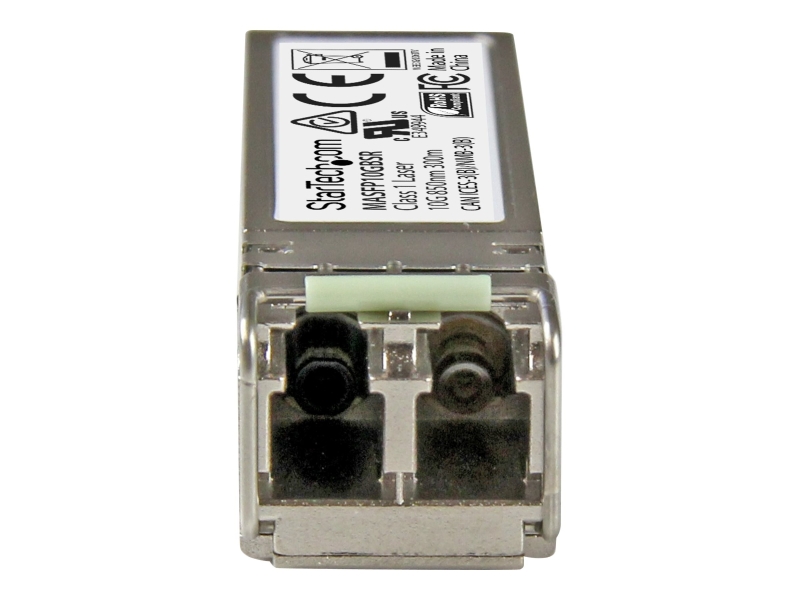

STARTECH CISCO MERAKI MA-SFP-10GB-SR COMP. SFP+ - 10GBE MMF TRANSCEIVER LTW MASFP10GBSR

Special Price $351.00 Regular Price $404.00
SKU:383640
MPN:MASFP10GBSR Link
Manufacturer:https://www.startech.com
Brand: Startech
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate
  • The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).

    Technical Specifications:

    • Wavelength: 850nm
    • Maximum Data Transfer Rate: 10 Gbps
    • Type: Multi Mode Fiber
    • Connection Type: LC Connector
    • Maximum Transfer Distance: 300 m (984 ft)
    • MTBF: 1,967,709 hours
    • Power Consumption: Less than 1.2 Watts
    • Digital Diagnostics Monitoring (DDM): Yes

    This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Warranty Information
Warranty
Lifetime


Color
Silver
Material
Aluminum
System and Cable Requirements
MSA or Cisco compliant SFP+ port

Connector(s)
Local Unit Connectors
1 - Fiber Optic LC Duplex

Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5~95% RH

Hardware
Compatible Brand
Cisco Meraki
WDM
No
Industry Standards
IEEE 802.3ae 10GBASE-SR

Packaging Information
Package Height
1.3 in [34.0 mm]
Package Length
3.7 in [93.0 mm]
Shipping (Package) Weight
1.7 oz [47.0 g]
Package Width
4.6 in [11.7 cm]

Performance
Maximum Data Transfer Rate
10 Gbps
Max Transfer Distance
300 m (984 ft)
Type
Multi Mode
Wavelength
850nm
Fiber Operating Mode
Full-Duplex
DDM
Yes
Compatible Networks
10 Gbps
MTBF
1,967,709 hours
Power Consumption (In Watts)
< 1.2 W

Physical Characteristics
Weight of Product
0.6 oz [18.0 g]
Product Length
2.1 in [54.0 mm]
Product Width
0.5 in [13.9 mm]
Product Height
0.5 in [1.3 cm]

Special Notes / Requirements
Note
For use in 10 Gigabit fiber networking equipment and media converters

What's in the Box
Included in Package
1 - SFP+ transceiver
STARTECH CISCO MERAKI MA-SFP-10GB-SR COMP. SFP+ - 10GBE MMF TRANSCEIVER LTW
