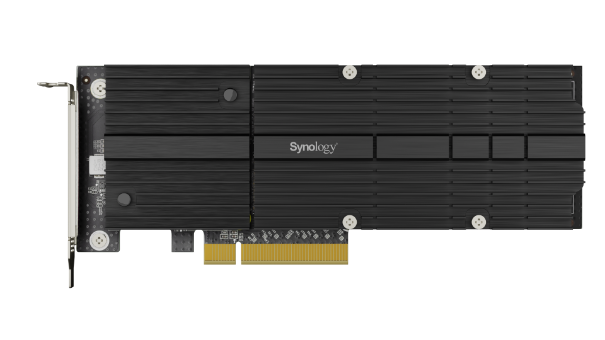

Synology M2D20 PCIe Adapter Card Supporting Synology SNV3400 And SNV3500 Only. M2D20
$319.00
| SKU: | 298157 |
|---|---|
| MPN: | M2D20 Link |
| Manufacturer: | https://www.synology.com |
| Brand: | Synology |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Synology PCIe Gen2 x8 adapter card for dual M.2 SSD slot.
Support form factor:
For both SATA & NVMe: Broadwell-DE :FS1018, DS3018xs.
Denverton: RS2818Rp+, RS2418+( RP+),DS2419+, DS1819+,DS1618+
SATA only :
Avoton: RS1218+. RS818+(RP+) , DS1517+.
SATA after DSM 6.2, NVMe after DSM 7.0 : FS2017 , RS18017xs+, RS4017xs+, RS3617RPxs ;, RS3617xs+, RS3618xs , DS3617xs.
Support form factor:
For both SATA & NVMe: Broadwell-DE :FS1018, DS3018xs.
Denverton: RS2818Rp+, RS2418+( RP+),DS2419+, DS1819+,DS1618+
SATA only :
Avoton: RS1218+. RS818+(RP+) , DS1517+.
SATA after DSM 6.2, NVMe after DSM 7.0 : FS2017 , RS18017xs+, RS4017xs+, RS3617RPxs ;, RS3617xs+, RS3618xs , DS3617xs.
Specifications
▼
| UPC | 846504003907 |
|---|---|
| ASIN | B089RHBVVG |
| Brand | Synology |
| Model | M2D20 |
| Notes | Provides dedicated M.2 cache slots to free primary drive bays for data storage and accelerate latency-sensitive workloads. Model specifications and compatibility are subject to change; refer to Synology documentation for the definitive compatibility and DSM requirements. |
| Cooling | No active cooling (passive) |
| Category | Storage |
| Warranty | 5 year limited warranty |
| Description | The Synology M2D20 is a dual-slot M.2 NVMe SSD adapter card that provides cache acceleration for compatible Synology NAS systems. It installs in a PCIe 3.0 x8 slot and accepts two M.2 NVMe SSDs (M-key, 22110 or 2280) to boost random I/O performance and responsiveness for latency-sensitive workloads such as photo indexing, file search, virtualization, and VMs. The card ships with a low-profile/full-height bracket and is backed by a 5-year limited warranty. DSM version requirements apply for certain NAS models. |
| Form Factor | Plug-in PCIe card (full-height / low-profile) |
| Item Weight | 0.73 lb (≈330 g) |
| Intended Use | Dual-slot M.2 SSD adapter card for cache acceleration in Synology NAS systems |
| Product Type | M.2 NVMe to PCIe Adapter Card (SSD cache card) |
| Sub-Category | Drive Controllers |
| Product Title | Synology M2D20 M.2 NVMe Adapter Card (PCIe 3.0 x8, Dual M.2 2280/22110) |
| TAA Compliant | Yes |
| Bracket Height | Low-profile and full-height (included) |
| Country of Origin | Taiwan |
| Relative Humidity | 5% to 95% RH |
| Storage Interface | PCIe NVMe |
| Host Bus Interface | PCIe 3.0 x8 |
| Compatibility Notes | Designed for select Synology NAS models. DSM 6.2.3-25426 or later generally required; certain models require DSM 7.0.1 or later (see Synology compatibility list). |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Included Accessories | Low-profile bracket Synology 5 Year Limited Warranty documentation |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (L x W x H) | 7.16 x 2.82 x 0.62 inches (181.9 x 71.75 x 15.8 mm) |
| DSM Version Requirement | DSM 6.2.3-25426 or later; DSM 7.0.1 or later required for select models (see compatibility details) |
| Manufacturer Part Number | M2D20 |
| Supported M.2 Form Factors | 22110 2280 |
| Max Installed Storage Devices | 2 |
| M.2 Connector Type and Quantity | M-key, 2 slots |
| Selected Compatible Synology NAS Models (examples) | SA6400, SA3610, SA3600, SA3410, SA3400 RS2825RP+ RS2423RP+, RS2423+ RS822RP+, RS822+ DS3622xs+, DS2422+ RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ RS820RP+, RS820+ DS2419+II, DS2419+, DS1819+ RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+ RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs |
Vendor Info
▼
Synology M2D20 PCIe Adapter card supporting Synology SNV3400 and SNV3500 only.
