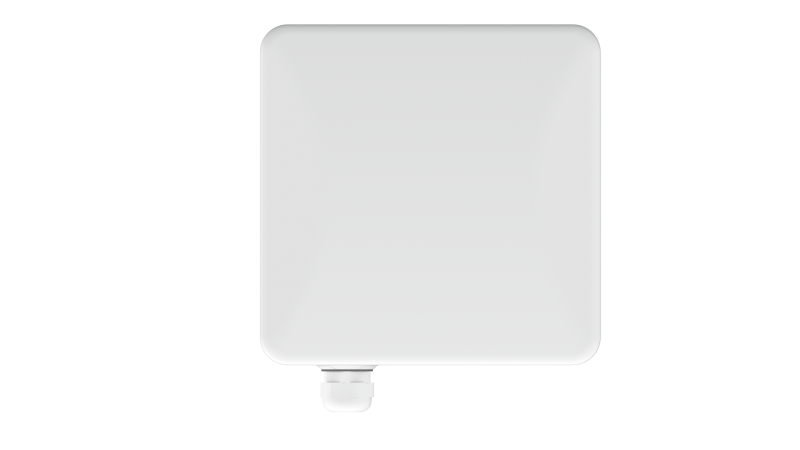

LigoWave LigoDLB 5-20ac Wireless 5GHz Outdoor Device with 20dBi Antenna for Short-to-Mid Range PTP/PTMP Scenarios

Experience high-performance wireless connectivity with the LigoWave LigoDLB 5-20ac, engineered for short-to-mid range point-to-point (PTP) and point-to-multipoint (PTMP) applications. Leveraging advanced 802.11ac technology and a proprietary iPoll protocol, this device delivers over 500Mbps throughput, ensuring reliable and efficient data transmission for demanding applications.

Equipped with a powerful 20dBi directional antenna, the LigoDLB 5-20ac provides extended coverage and robust signal strength, making it ideal for outdoor deployments. Its rugged IP66-rated enclosure ensures durability in various weather conditions, maintaining consistent performance in challenging environments.

The device features a Gigabit Ethernet port with passive PoE support, simplifying installation and reducing the need for additional cabling. Its innovative mounting bracket allows for easy alignment and deployment, enhancing installation efficiency and flexibility.

Key Features
High-capacity 500+ Mbps throughput with 802.11ac technology
Integrated 20dBi directional antenna for extended coverage
Proprietary iPoll protocol for enhanced performance in PTMP scenarios
Rugged IP66-rated enclosure for outdoor durability
Gigabit Ethernet port with passive PoE support
Innovative mounting bracket for easy installation and alignment
Technical Specifications
Frequency Range: 5.150–5.850GHz (country-dependent)
Transmit Power: Up to 30dBm (country-dependent)
Channel Sizes: 5, 10, 20, 40, 80MHz
Modulation Schemes: 802.11a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK); 802.11ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
Antenna Gain: 20dBi
Distance Recommendation: PTMP mode: up to 10km; PTP mode: up to 15km
Ethernet Port: 1 x Gigabit Ethernet with passive PoE support
Enclosure Rating: IP66
Operating Temperature: –40°C to +65°C
Dimensions: 305mm x 305mm x 50mm
Weight: 1.2kg
