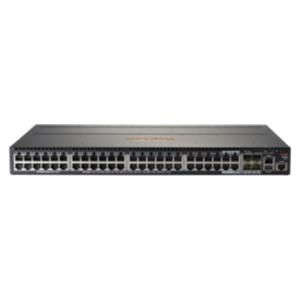

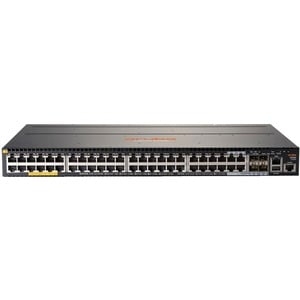

Hpe Aruba 2930m 48g With 1-slot Switch Jl321a
SKU: | 252455 |
---|---|
MPN: | JL321A Link |
Manufacturer: | http://www8.hp.com/us/en/ |
Brand: | Hp |
Warranty: | Standard Manufacturer's Warranty |
Availability: | Preorder 2-3 weeks |
Fright Estimate |
Description
These Layer 3 access switches are easy to deploy, provision and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central.
Power and grow your network with high performance stacking, resilient PoE+ power and multi-gigabit Ethernet.
Enhanced security with Tunnel Node for a secured tunnel to Aruba Controller for unified policy enforcement for traffic from both wired and wireless devices.
-
802.11ac-ready wired network
Multi-gigabit Ethernet with PoE+ for high speed 802.11ac APs using existing cabling.
-
Power and performance
10 chassis stacking, 40GbE uplinks, up to 1440W PoE+ and up to 24 Smart Rate ports.
-
Simple deployment
With Zero Touch Provisioning and support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support.
Specifications
Basic | |
---|---|
Brand Name: | Aruba |
Layer Supported: | 2 |
Product Type: | Ethernet Switch |
Miscellaneous | |
---|---|
Environmental Certification: | WEEE |
Environmentally Friendly: | Yes |
Network & Communication | |
---|---|
Layer Supported: | 2 |
Vendor Info
Marketing Text | The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. |
PI Date | May 2017 |
Brand Name | HPE |
Manufacturer Web Site | http://www.hpe.com |
Form Factor | 1U |
Product Model | 2930M-48G |
Product Type | Gigabit Switch |
Switching Fabric | 176Gbps |
Forwarding Rate | 112Mpps |
Packet Buffer | 12.38MB |
Mac Address | 32768entries |
Routing Table | 10Kentries |
Jumbo Frame Size | 9220Bytes |
No. of Units per Stack | 1 |
Expansion Ports | 4 x Dual-personality ports |
Gigabit Ethernet Port | Yes |
No. of Ports | 44 |
Type | 10/100/1000 |
Console Ports | 1 |
No. of Expansion Slots | 2 |
Output Power | 36Watt |
Depth (mm) | 324.3 |
Height (mm) | 43.9 |
Width (mm) | 174.2 |
Weight (Kg) | 4.6 |
Layer Support | 3 |
Management Type | Managed |
Management Features | * Aruba AirWave Network Management * IMC - Intelligent Management Center * Command-line interface * Web browser * Configuration menu |
Memory | 1GB |
Network Technology | 10/100/1000 |
VLAN | * VLAN Support and Tagging supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously |
Security Features | * Multiple user authentication methods * TPM-based Security * Authentication flexibility |
Quality of Service (QoS) | * Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels mapped to eight queues * Layer 4 prioritization enables prioritization based on TCP/ UDP port numbers * Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ |
Other Features | * Differentiator: Aruba 24-port 1 Gigabit PoE+ Layer 3 switch with dual modular power supplies, uplink module and stacking module support |
