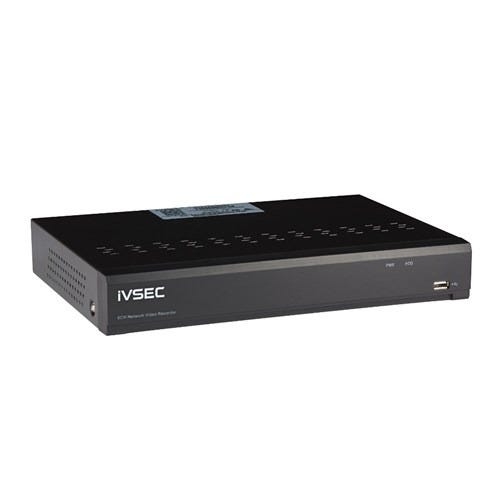

The IVSEC NR308XC is a robust 8-channel Network Video Recorder (NVR) designed for reliable video surveillance. It supports up to a 12MP maximum video resolution with a 128Mbps bandwidth, ensuring high-quality, clear video streaming. With a single HDD bay that can accommodate up to a 16TB hard drive, this NVR provides substantial storage for extensive footage retention. It's built with 8 Power over Ethernet (PoE) ports for easy plug-and-play installation with IVSEC X range cameras and is also ONVIF compatible for third-party camera integration.

This NVR features advanced H.264+ and H.265+ video compression technology, which significantly reduces the amount of storage space needed without compromising video quality. This allows for longer recording periods on the same hard drive. The system also includes a variety of intelligent video analytics features, such as perimeter intrusion, face recognition, and human and vehicle detection, which are dependent on the connected camera. These intelligent features help streamline security monitoring and alert you to specific events.

The NR308XC offers multiple search methods to quickly find specific footage, including event-triggered searching by IVS filtering, snapshot searching, and a general timeline search. For remote access and management, it supports a free Video Management System (VMS) for PCs and a powerful mobile app, "IVSEC X". The NVR also supports two-way audio streaming and includes both HDMI and VGA video outputs for local monitoring.

To download the IVSEC X app and access support resources, please visit the IVSEC support page.

FEATURES
8 Channels
Maximum 12MP video resolution support
128Mbps bandwidth for smooth video streaming
Intelligent video analytics (camera dependant) including Perimeter Intrusion, Face Recognition, and Human & Vehicle Detection
Advanced H.264+ and H.265+ compression to save storage space
Plug-and-play with IVSEC X range cameras
ONVIF Profile S/G/T for third-party camera compatibility
Multiple search methods including event-triggered and snapshot searching
Two-way audio streaming
Remote access via free VMS for PCs and "IVSEC X" mobile app

SPECIFICATIONS
Maximum Channels: 8
Maximum Video Resolution: 12MP
Bandwidth: 128Mbps
Video Compression: H.264, H.264+, H.265, H.265+, MJPEG
Video Output Resolution: 4K, HD-1080p, HD-720p, 1.3MP, D1, VGA
Storage Potential: Up to 16TB
HDD Bays: 1 x 3.5" SATA HDD slot (up to 16TB)
PoE Ports: 8 ePoE ports
Power Supply: DC 48V, 2A
Power Consumption: 5W (without HDD)
Operating Environment: 0°C to 40°C, 20%-80% RH
Net Weight: 1.70kg
Gross Weight: 2.00kg

IVSEC products are designed to work together to form a comprehensive security system that can be integrated with Control4 smart home systems. For the full list of features and the most current technical specifications, you can download the necessary drivers and view the installation guide here.

WARRANTY

2 Years Parts
