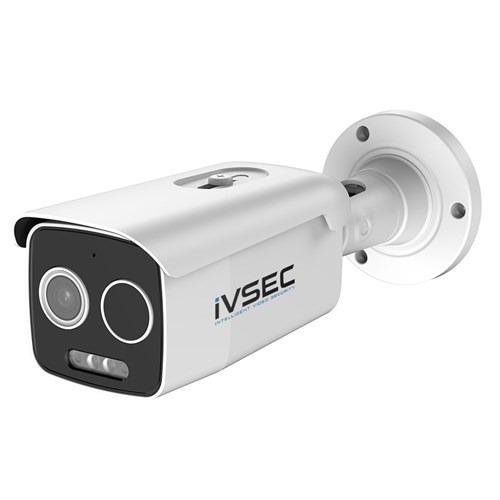

The IVSEC NC630ADX is a cutting-edge thermal IP camera designed to provide exceptional surveillance in various environments. With its bi-spectrum technology, it seamlessly combines a 5MP colour camera with a 1MP thermal camera to provide comprehensive monitoring solutions. This unique dual-sensor design allows the camera to capture detailed visual information as well as thermal data, making it a powerful tool for detecting potential threats, even in challenging conditions with low visibility or complete darkness.

This advanced camera is built for outdoor use, boasting a durable IP67 and vandal-resistant rating to withstand the elements and potential tampering. It also comes equipped with Intelligent Video (IVS) analytics, including face detection, human and vehicle detection, and perimeter intrusion detection. These features help reduce false alarms and provide accurate, targeted alerts, ensuring that you're notified of real threats.

Additional intelligent features, such as fire detection and temperature measurement, make the NC630ADX a versatile solution for a wide range of security applications. The camera also includes red and blue flashing lights, as well as a white LED, providing an active deterrent to intruders. Its Power over Ethernet (PoE) capability simplifies installation, allowing for both power and data to be transmitted through a single Ethernet cable.

The NC630ADX offers a wide range of image enhancement options, including 3D noise reduction and defog, ensuring clear and sharp footage at all times. It supports multiple video streams and various compression formats like H.265+, H.265, H.264+, and H.264 for flexible and efficient video management. For added convenience, the camera also supports edge recording via a microSD/SDHC card and can be set up with Dropbox for cloud storage, providing flexible data backup options.

To download the IVSEC X app and access support resources, please visit the IVSEC support page.

FEATURES
Bi-spectrum technology for combined colour and thermal imaging
Intelligent Video (IVS) features including Human & Vehicle Detection, Face Detection, and Perimeter Intrusion Detection
Active deterrent with red and blue flashing lights, and white LED
Vandal-resistant and IP67 weather-resistant rating
Supports Power over Ethernet (PoE) for simplified installation
Wide operating temperature range of -30°C to 60°C
MicroSD/SDHC card slot for edge recording
ONVIF (Profile S/G/T) compatible for easy integration
Dropbox cloud option for camera only
Multiple streams (3 for colour, 2 for thermal)

SPECIFICATIONS
Camera Type: Thermal
Image Sensor: 1/2.8" Progressive CMOS
Maximum Video Resolution: 5MP 2592x1944 (Colour), 1MP 1280x720 (Thermal)
Frames Per Second (FPS): 25
Lens: 3.2mm Fixed
Pixel Pitch for Thermal Camera: 12µm
Spectral Range for Thermal Camera: 8-14µm
Thermal Sensitivity for Thermal Camera: ≤40mk@25°C F1.0, 25Hz
Thermal Reflective Temperature: -20-150°C
Maximum Night IR Distance: 30m
LED: Red & Blue, White
Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
Connectors: RJ-45, DC Power Input, Audio In, Audio Out, Alarm in or out*1, reset button, SD card slot
Power Consumption: <14W
Operating Environment: -30°C to 60°C
Dimensions (H×W×L): 301×108×108mm
Weight (Net): 0.80kg
Weight (Gross): 0.50kg
In The Box: Free Software, quick user guide, installation template, mounting screws and plugs

IVSEC products are designed to work together to form a comprehensive security system that can be integrated with Control4 smart home systems. For the full list of features and the most current technical specifications, you can download the necessary drivers and view the installation guide here.

WARRANTY

3-Year Limited Warranty
