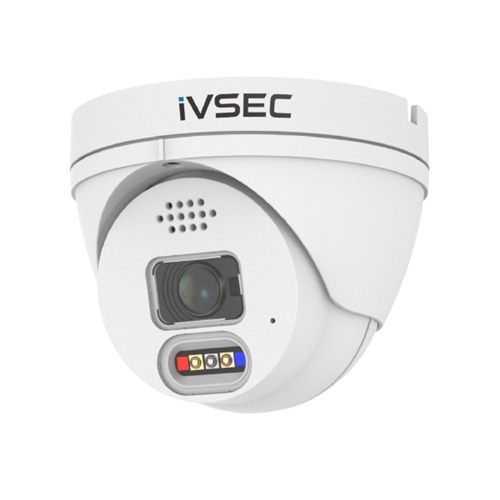

The IVSEC NC323ADX-BLK is a high-performance 8MP (4K) turret security camera designed for both indoor and outdoor use. Featuring a 1/2.8" Progressive CMOS sensor, this camera captures clear, detailed video at a maximum resolution of 3840x2160 pixels at 30 frames per second. Its 2.8mm fixed lens provides a wide 106° horizontal field of view, making it ideal for general wide-angle surveillance. The camera is equipped with Smart IR and full-colour night mode, ensuring excellent visibility even in low-light conditions.

This camera includes advanced deterrent features, such as red and blue strobing lights and a siren, which can be activated remotely via the mobile app. It also supports two-way audio with a built-in microphone and speaker, allowing for direct communication. The NC323ADX-BLK incorporates intelligent video (IVS) analytics, including face recognition, human and vehicle detection, and perimeter intrusion detection, providing proactive security alerts.

Built to withstand the elements, the camera has an IP66 rating for outdoor use and is vandal-resistant. It supports multiple video compression formats, including H.265+ and H.264+, to optimise storage and bandwidth. With Power over Ethernet (PoE) and a compact, turret design, it is easy to install and integrate into existing security systems. The camera also supports edge recording via a microSD/SDHC card for local storage backup.

To download the IVSEC X app and access support resources, please visit the IVSEC support page.

FEATURES
8MP (4K) video resolution at 30 frames per second
Advanced deterrent features with red/blue strobing lights and siren
Full-colour night mode and Smart IR with up to 25m night vision distance
Built-in microphone and speaker for two-way audio communication
Intelligent Video (IVS) analytics including human and vehicle detection, face recognition, and line crossing detection
Vandal-resistant and IP66-rated for outdoor use
Supports multiple video streams and various video compression formats (H.265+, H.264+)
Power over Ethernet (PoE) support for simple installation
Edge recording to microSD/SDHC card

SPECIFICATIONS
Camera Type: Turret
Image Sensor: 1/2.8" Progressive CMOS
Maximum Video Resolution: 3840x2160
Frames Per Second (FPS): 30
Lens: 2.8mm fixed lens (H.FOV: 106°)
Maximum Night IR Distance: 25m
LED: IR, Red & Blue, White
Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
IP Rating: IP66
Vandal Resistant: Yes
Day/Night Mode: Full color (Auto)
Intelligent Video (IVS): Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection
Edge Recording: Micro SD/SDHC Card
Multiple Streams: 3 Streams
Audio Streaming: Yes (microphone and speaker included)
Ethernet: 10/100 Base-T
Power Supply: PoE IEEE 802.3af, DC12V
Power Consumption: <14W
Operating Environment: -35~+60°C / ≤95% RH
Weight (Net): 0.44kg
Dimensions (HxWxL): 100x100x100mm

IVSEC products are designed to work together to form a comprehensive security system that can be integrated with Control4 smart home systems. For the full list of features and the most current technical specifications, you can download the necessary drivers and view the installation guide here.

WARRANTY

3 Year Warranty
