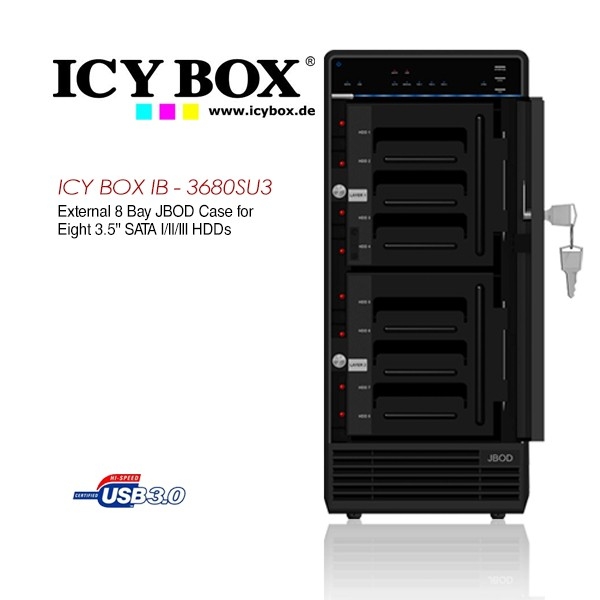

IB-3680SU3

External 8 Bay JBOD Case for eight 3.5 inch SATA l/ll/lll HDDs

For up to 192TB with (8 x 24TB) installed
Silent operation by thermal controlled fan
Energy saving by supporting sleep modus
Easy assembling by trayless design
HDD capacity unlimited
External data interface: USB 3.0, eSATA
Plug & Play and Hot Swap
Windows 7/8.x, MAC OS X > 10.5
JBOD (Single)

The external JBOD enclosure can accommodate a total of eight SATA I / II / III hard drives or SSDs. It consists largely of aluminium and is therefore stable and dissipates heat very well. The cooling of the drives is achieved due to two temperature controlled 80mm fan on the back and corresponding air-inlets support below the drive bays on the front. The door of the enclosure can be locked.

The display of the JBOD system informs through various LEDs about operation, fan, interfaces and disk usage. As a huge JBOD data storage system can provide its full function. Except the existing external interfaces USB 3.0 and eSATA the ability to use hard drives without any capacity constraints play a big role as well as .

Among the capabilities of the JBOD enclosure are various other convenient functions. Such as, for example, the strapless hard disk installation and energy-saving standby mode. As well as hot-swap capability, plug & play and support for both Windows and MAC systems.

For users with larger demands the ICY BOX IB-RD3680SU3 enclosure provides support of RAID Level 0 (striping) / 10/5/50 / BIG (Spanning).

Specifications:
Material: Aluminium / Plastic
HDD size (inch): 8 x 3.5 inch
HDD size (cm): 3.5 inch
HDD interface: SATA I/II/III
HDD capacity: Unlimited
Hot Swap: Yes
Plug & Play: Yes
External data interface: USB 3.0 / eSATA
Operating system: Windows 7/8, MAC OS X
Transfer rate:USB 3.0 up to 5 Gbit/s, eSATA up to 3.0 Gbit/s
Power switch: Yes
Lock: Yes
LED: Power, fan, interface, HDD in use, access and error (RAID)
Power connector: Internal power supply, Input: AC 100 - 240 V, 2 A Output: 5 Vsb/3 A, 12 V/6 A, 12 V/6 A
Packing content: 1x device, 1x power supply cable, 1x USB 3.0 cable, 1x eSATA cable, 8x handles, 1x set of screws, 1x quick installation guide
Gross weight (incl. packing): 5.7 kg
Net weight: 5 kg
Dimension of packing box: 98x234x240 mm
Dimension of article: 253x155x352 mm
