Description

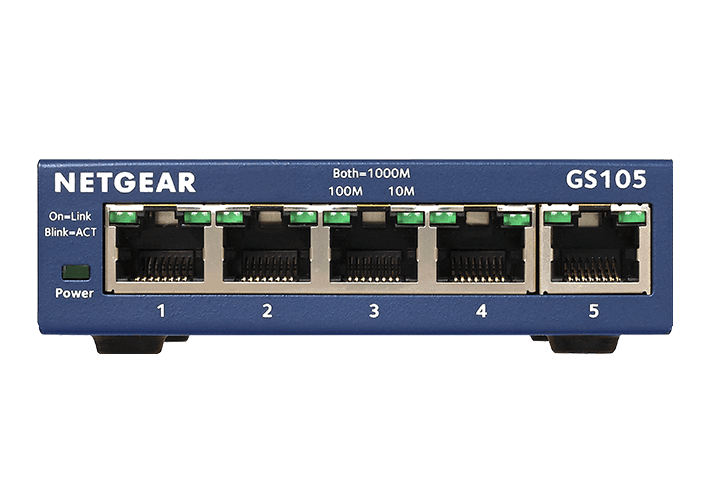

GS105 ProSafe 5 Port Gigabit Switch Desktop 10/100/1000MbpsBW 10Gbps Unmanaged
NETGEAR Code UPC Weight
GS105AU 606449029666 00.550
Product Information
HIGH SPEED, AUTO-SWITCHING , GIG E'NET SWITCH
PI DATE: Oct 2003
PORTS: 5 x Auto-speed sensing UTP ports
COMPLIANCE: IEEE 802.3I, 802.3u , 802.3z , Win, MacOS, Netware, Linux
Bandwidth: 10 Gbps (non-blocking)
MAC ADDRESSES: 8,000
QUEUE BUFFER MEMORY: 12 Kbytes per port
FORWARD RATE: 14,800 packets/sec (10 Mbps port)
148,000 packets/sec (100 Mbps port)
1,480,000 packets/sec(1000 Mbps port)
Network Latency (100 to 100 Mbps): 20 s (max)
Network Latency (1000 to 1000 Mbps): 10 s (max)
Mean Time Between Failure (MTBF): 87,600 hours (10 years)
DIMENSIONS: 158 x 105 x 25 mm
* Store-and-Forward
* 256K On-Chip Packet Buffering
* LEDs embedded in RJ-45 jacks make for easy monitoring.
Provides noiseless operation
* Integrates 10, 100, and 1000 Mbps devices on the same network
Sys Reqs : UTP Cat 5cables+ ; NIC for each PC/Server
