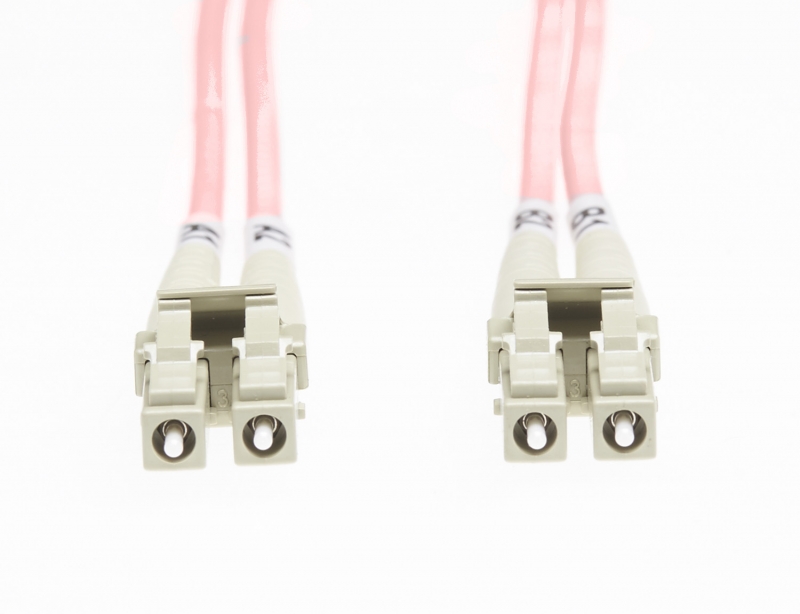

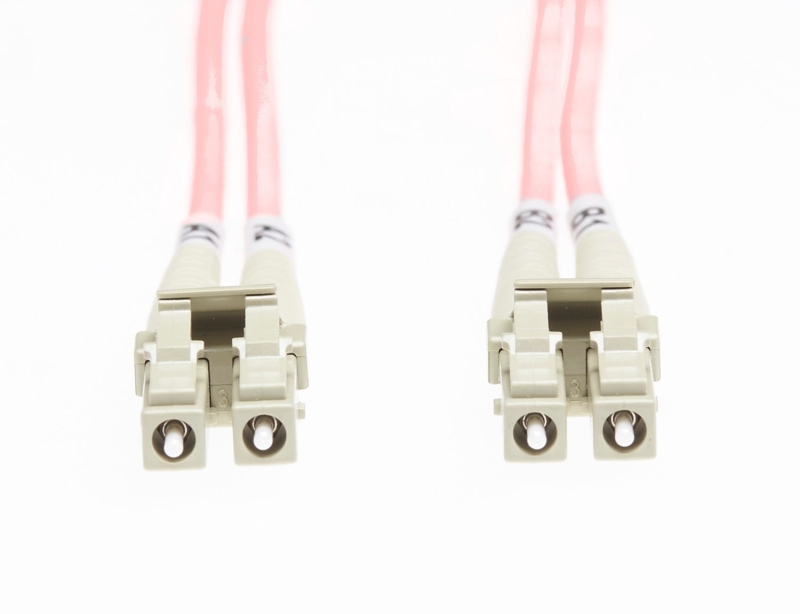

4cabling 2m Lc-lc Om4 Multimode Fibre Optic Cable: Salmon Pink Fl.om4lclc2mp

$18.00
SKU:248987
MPN:FL.OM4LCLC2MP
Manufacturer:https://www.4cabling.com.au/customer/account/
Brand: 4cabling
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate

l equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telecordia standards.

Applications include:

  • Termination enclosure to equipment patching
  • Equipment to equipment patching
  • Cross-connect patching



    FEATURES

    • OM1, OM3, OM4 & OS1 fibre patch leads conform to ITU-651, TIA/EIA492AAAD
    • Individually labelled for lead tracing
    • Low smoke zero halogen (LSZH) cable
    • Manufactured with stringent quality control
    • All leads are supplied with a factory test report
    • Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
    • All ends are polished and individually inspected for correct polishing
    • Supports high speed multi-channel data, voice & video applications

    FIBRE SPECIFICATIONS

    • Mode: OM4 Multimode
    • Fibre Terminations: LC-LC
    • Length: 2m
    • Colour: Salmon Pink
    • Oversleeving: 2mm

    WARRANTY

    3-year limited warranty.

  • Specifications

    Crush (N) 1000
    Simplex/Duplex Duplex
    Strength Member Aramid
    Typical Insertion Loss <0.20 dB
    Max. Insertion Loss <0.25 dB
    Tensile Load 7.0kg
    Bend Radius 3.8cm
    Operating Temperature (C°) minus 20° to 60°
    Attenuation (dB) 2.8 @ 850nm/0.8 @ 1310nm
    Bandwidth OFL (MHz x km) 1500 @ 850nm/500 @ 1310nm/2000 @ 1310nm
    IL RL<0.25dB
    UPC Singlemode >55dB
    UPC Multimode RL>36dB
    APC RL>60
    2m LC-LC OM4 Multimode Fibre Optic Cable: Salmon Pink - 2mm OversleevingFibre optic cables are the thin, flexible fibres of glass that carry telephone conversations and emails all over the world in a matter of seconds with much less interference than copper cables. Fibre-Optic cables need less amplification to boost signals so they travel better over longer distances.4Cabling's LC-LC OM4 Multimode Fibre Optic Patch Leads provide connection for 10Gb high speed and legacy networks like Gigabit Ethernet, Fast Ethernet and Ethernet and are immune to EMI/RFI. They are mainly used on patch panels for the connection between outlets and terminal equipment. The multimode optical fibre cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telecordia standards.Applications include:Termination enclosure to equipment patchingEquipment to equipment patchingCross-connect patching FEATURESOM1, OM3, OM4 & OS1 fibre patch leads conform to ITU-651, TIA/EIA492AAADIndividually labelled for lead tracingLow smoke zero halogen (LSZH) cableManufactured with stringent quality controlAll leads are supplied with a factory test reportDuplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leadsAll ends are polished and individually inspected for correct polishingSupports high speed multi-channel data, voice & video applicationsFIBRE SPECIFICATIONSMode: OM4 MultimodeFibre Terminations: LC-LCLength: 2mColour: Salmon PinkOversleeving: 2mmWARRANTY3-year limited warranty.WHY 4CABLING?Australia’s leading importer & wholesaler of 19” server racks, copper, fibre & structured networking productsISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplierSecure online shopping 24/7A loyal customer base of 100k+ who trust us for their data & electrical needsOver 3000 quality products in stock ready to goAll products are approved as per local Australian standardsWarranty & peace of mind return policyLightning fast delivery nationwideExpert adviceProudly 100% Australian owned & operated NEED HELP?Email [email protected] or phone 1300 855 235 to talk with one of our expert advisers.
