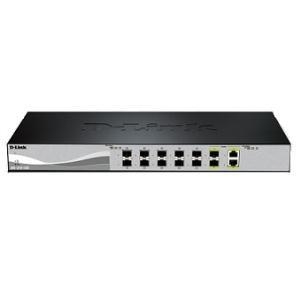

D-link 12-port 10 Gigabit Websmart Switch With 12 Sfp+ Ports And 2 10gbase-t (combo) Ports Dxs-1210-12sc

$2,404.00
SKU:245256
MPN:DXS-1210-12SC Link
Manufacturer:http://shop.us.dlink.com/
Brand: D-link
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate

D-Link’s DXS-1210 series 10 Gigabit Ethernet Smart Switches are cost effective 10 GbE switches capable of servicing a range of network needs in any business. Supporting 10GBASE-T/ SFP+ combo ports, they provide connection flexibility across a network allowing easier network integration. With high performance and low latency, these switches can fulfill the needs for virtualization, cloud services and server-to-server applications, making it perfect for SMB customers.

DXS-1210 series switches offer 10GbE copper and fiber ports. The 10GBASE-T copper ports utilize RJ45 interfaces and support 10 Gigabit speeds over CAT6a/CAT7 LAN cabling up to 100m. The 10GbE fiber ports can be connected to other 10GbE ports with low cost Direct Attach Copper (DAC) cables, or with SFP+ optical transceivers over multimode or singlemode fiber optic cabling.

Energy Saving

Incorporating D-Link Green technology, the switches are capable of power-saving without sacrificing operational performance or functionality. They feature built-in smart fans; internal heat sensors monitor and detect temperature changes, and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switch’s power consumption and noise. Link status drastically reduces power consumption by automatically toggling ports without a link to sleep mode. DXS-1210 switches take the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.

Extensive Management and Layer 2 Features

Equipped with a complete lineup of L2 features, DXS-1210 switches include port mirroring, Spanning Tree Protocol and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection is used to detect loops created by a specific port and automatically shut down the affected port. The cable diagnostic feature, designed primarily for administrators and customer service representatives, can rapidly discover errors and determine the cable quality, allowing the switch to manage itself for you.

QoS, Bandwidth Control

DXS-1210 switches support Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN technology consolidates data and surveillance video transmission through a single unit, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.

Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic. Furthermore, the DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions that require a larger bandwidth or might have high priority.

Secure your Network

D-Link’s innovative Safeguard Engine® protects the switches against traffic flooding caused by malicious attacks. DXS-1210 switches support 802.1X port based and host based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the network.

The DXS-1210 switches include ARP spoofing prevention, which protects from attacks on the network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To prevent ARP spoofing attacks, the switches use packet control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP server screening feature rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

Versatile Management

The DXS-1210 series switches provide a D-Link Network Assistant Utility that simplifies the configuration for devices supporting D-Link Discovery Protocol. The D-Link network assistant utility easily allows customers to discover multiple D-Link Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC to discover the DXS-1210. It also simplifies the initial setup of the switches. Switches within the same L2 network segment that are connected to the user’s PC are displayed on screen for instant access.

This allows extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades. The switches also support D-View® 7 and Command Line Interface (CLI) through Telnet. D-View 7 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.

Seamless Integration

The DXS-1210 series switches come with Ethernet copper ports capable of connecting to existing CAT5 twisted-pair cables, supporting CAT6 for 10GBASE-T. The DXS-1210-12TC has 8 10GBASE-T ports, 2 SFP+ ports and 2 10GBASE-T/SFP+ combo ports, while the DXS-1210-12SC has 10 10G SFP+ ports and 2 10GBASE-T/SFP+ combo ports. This means they provide a more flexible solution for upstream or downstream server connections, making network administration easy.

Basic
Brand Name: D-Link
Ethernet Technology: 10 Gigabit Ethernet
Expansion Slot Type: SFP+
Form Factor: Desktop
  Rack-mountable
Layer Supported: 3
Manageable: Yes
Media Type Supported: Optical Fiber
  Twisted Pair
Network Technology: 10GBase-T
  10GBase-X
Number of Total Expansion Slots: 12
Port/Expansion Slot Details: 10 Gigabit Ethernet
Power Source: Power Supply
Product Family: SmartSwitch DXS-1210
Product Type: Ethernet Switch
Redundant Power Supply Supported: No
Stack Port: No
Total Number of Network Ports: 12
General Information
Brand Name: D-Link
Manufacturer Part Number: DXS-1210-12SC
Manufacturer Website Address: http://www.dlink.com.au
Manufacturer: D-Link Systems, Inc
Product Line: SmartSwitch
Product Model: DXS-1210-12SC
Product Name: 10G Smart Switch with 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Combo Port
Product Series: DXS-1210
Product Type: Ethernet Switch
I/O Expansions
Expansion Slot Type: SFP+
Number of SFP+ Slots: 12
Number of Total Expansion Slots: 12
Shared SFP Slot: Yes
Interfaces/Ports
Modular: No
Number of Network (RJ-45) Ports: 2
Port/Expansion Slot Details: 10 Gigabit Ethernet
  12 x 10 Gigabit Ethernet Expansion Slot
  2 x 10 Gigabit Ethernet Network
Stack Port: No
Total Number of Network Ports: 12
Uplink Port: No
Management & Protocols
Manageable: Yes
Media & Performance
Ethernet Technology: 10 Gigabit Ethernet
Media Type Supported: Optical Fiber
  Twisted Pair
Network Technology: 10GBase-T
  10GBase-X
Network & Communication
Layer Supported: 3
Physical Characteristics
Depth: 210 mm
Form Factor: Desktop
  Rack-mountable
Height: 44 mm
Weight (Approximate): 2.73 kg
Width: 440 mm
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Marketing TextD-Link’s DXS-1210 series 10 Gigabit Ethernet Smart Switches are cost effective 10 GbE switches capable of servicing a range of network needs in any business. Supporting 10GBASE-T/ SFP+ combo ports, they provide connection flexibility across a network allowing easier network integration.
PI DateAug 2015
Brand NameD-Link
Manufacturer Web Sitehttp://www.dlink.com
Product ModelDXS-1210-12SC
Product TypeGigabit Ethernet Switch
Mac Address16kentries
Forwarding Rate178.56Mpps
Switching Fabric240Gbps
Jumbo Frame Size9KB
Expansion Ports2 x SFP+
Gigabit Ethernet PortYes
No. of Ports10
Type10GBase-T
Virtual LAN* 802.1Q VLAN
* Port-based VLAN
* 4K VLAN Groups
* Voice VLAN
* Auto Surveillance VLAN
* Asymmetric VLAN
Management Features* Web-based GUI
* D-Link Network Assistant Utility
* Compact CLI
* TFTP Client
* System Log
* DHCP Auto Configuration
Security Features* Broadcast/Multicast/Unicast Storm Control
* D-Link Safeguard Engine
* DHCP Server Screening
* IP-MAC-Port Binding
* Traffic Segmentation
* ARP Spoofing Prevention1
Standards* IEEE 802.3u
* IEEE 802.3ab
* IEEE 802.3az
* IEEE 802.3an
* IEEE 802.3ae
* IEEE 802.3z
Quality of Service (QoS)* 802.1p Priority Queues
* 8 queues per port
* Weighted Round Robin (WRR)
* Deficit Round Robin (DRR)
* Weighted Deficit Round Robin (WDRR)
* Port-based (Ingress/Egress, min. granularity 64 Kbps)
Input Voltage100 - 240Volt
Output Power43.81Watt
Depth (mm)440.0
Height (mm)44.0
Width (mm)210.0
Weight (Kg)2.7
Layer Support2 -3
Network Technology10GBase-T
Cabling TypeCAT 6a/CAT 7
