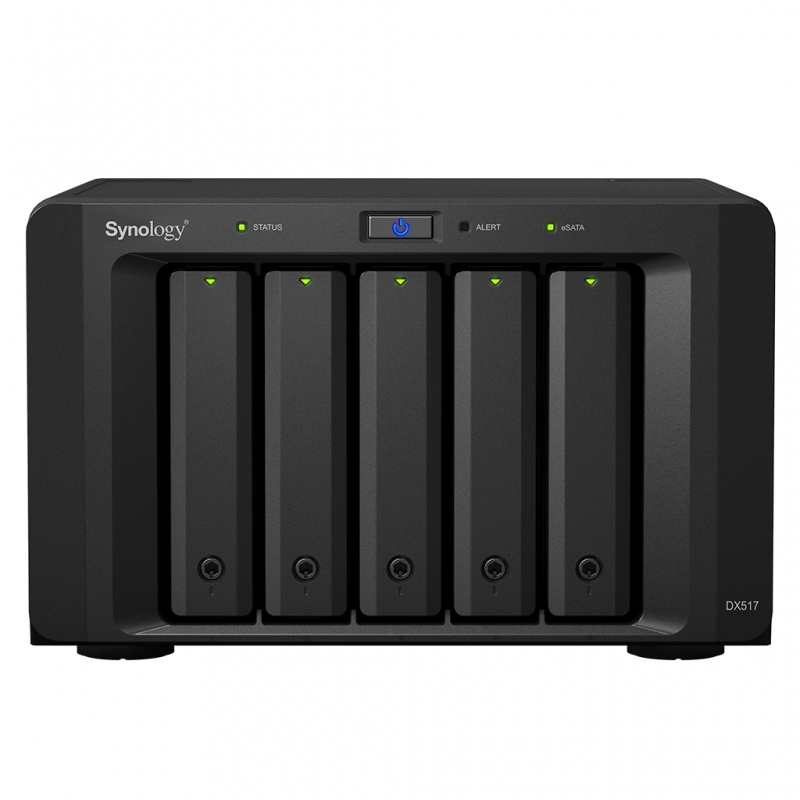

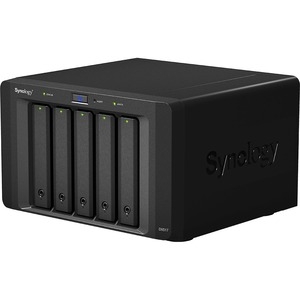

Synology DX517 DiskStation Expansion Add On 5 For X17 Series Only ( DS1517+ & DS1817+) DX517
$824.00
| SKU: | 242128 |
|---|---|
| MPN: | DX517 Link |
| Manufacturer: | https://www.synology.com |
| Brand: | Synology |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Synology® DX517 offers simple storage capacity expansion solution for your DiskStation through its intuitive plug-n-use design. DX517 allows you to instantly scale up to 5 addiontal hard drives, so that you can expaid RAID coume online or deploy the drives as a dedicated local backup destination for your Diskstation. Synology DX517 is backed by Synology's 3-year limited warranty.
Specification:
•Internal HDD: 3.5" or 2.5" SATA x5
•Expansion Port x1
•Hot Swappable HDD
•Size (HxWxD): 157x248x233mm
•Weight: 3.91Kg
•System Fan: 80x80mm x2
•Noise Level: 30 dB(A)
•Power Recovery: Sync with the paired DiskStation (Default Mode)
•AC Input Power Voltage: 100V-240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Operating Temperature: 5°C-35°C
•Storage Temperature: -10°C-70°C
•Relative Humidity: 5%-95% RH
•Maximum Operating Altitude: 6,500 feet
•Supported Models : DS1517+
Specification:
•Internal HDD: 3.5" or 2.5" SATA x5
•Expansion Port x1
•Hot Swappable HDD
•Size (HxWxD): 157x248x233mm
•Weight: 3.91Kg
•System Fan: 80x80mm x2
•Noise Level: 30 dB(A)
•Power Recovery: Sync with the paired DiskStation (Default Mode)
•AC Input Power Voltage: 100V-240V AC
•Power Frequency: 50/60 Hz, Single Phase
•Operating Temperature: 5°C-35°C
•Storage Temperature: -10°C-70°C
•Relative Humidity: 5%-95% RH
•Maximum Operating Altitude: 6,500 feet
•Supported Models : DS1517+
Specifications
▼
| Brand | Synology |
|---|---|
| Model | DX517 |
| Notes | Storage drives sold separately. For best performance, Synology recommends creating storage volumes physically within the same NAS or expansion unit rather than across both. |
| Weight | 3.91 kg (8.62 lb) |
| Warranty | 3-year limited hardware warranty (extendable to 5 years with Extended Warranty Plus where available) |
| Description | The Synology DX517 is a 5-bay external SATA expansion unit for Synology DiskStation NAS systems. It supports 3.5" and 2.5" SATA HDD/SSD drives in hot-swappable, screwless trays and connects to the host NAS via a single eSATA port. Managed through Synology DiskStation Manager (DSM), DX517 enables on-the-fly volume expansion without interrupting services and can also serve as a dedicated local backup volume. Engineered for 24/7 operation, it includes dual 80 mm cooling fans, Synology drive compatibility recommendations, and a 3-year limited hardware warranty (extendable). |
| Noise Level | 21.5 dB(A) (measured, fully loaded idle state per Synology test conditions) |
| Manufacturer | Synology, Inc. |
| Power Supply | 200 W internal |
| Product Type | Drive enclosure / Expansion unit |
| Product Title | Synology DX517 5-Bay SATA Expansion Unit (eSATA) |
| TAA Compliant | Yes |
| Certifications | FCC CE BSMI BIS |
| Power Frequency | 50/60 Hz, single phase |
| RAID Management | Managed through Synology DiskStation Manager (DSM) |
| AC Input Voltage | 100 V to 240 V AC |
| Package Contents | DX517 main unit x1 Accessory pack x1 AC power cord x1 Expansion cable: eSATA x1 Quick Installation Guide x1 |
| Storage Humidity | 5% to 95% RH |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 |
| Power Consumption | Access: 29.9 W HDD Hibernation: 2.4 W |
| Operating Humidity | 8% to 80% RH |
| Compatibility Notes | Refer to Synology compatibility list and knowledgebase for full device support and requirements. For some 15/16 series models DSM 6.2.1-23824-5 or later is required. Synology guarantees full functionality and performance only for validated Synology drives listed on the compatibility list. |
| Storage Temperature | -10°C to 70°C (15°F to 155°F) |
| Hot-Swappable Drives | Yes (screwless drive trays) |
| Number of Drive Bays | 5 |
| System Fan / Cooling | 2 x 80 mm fans (built-in) |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Supported Drive Types | 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD |
| BTU (Heat Dissipation) | Access: 102.02 BTU/hr HDD Hibernation: 8.19 BTU/hr |
| Dimensions (H x W x D) | 157 x 248 x 233 mm (6.2" x 9.8" x 9.2") |
| Environmental Compliance | RoHS Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | DX517 |
| Host Interface / External Ports | eSATA (1) |
| Compatibility / Supported Models | 23 series: DS1823xs+, DS923+, DS723+ 22 series: DS1522+ 21 series: DS1821+, DS1621xs+, DS1621+, DVA3221 20 series: DS1520+, DS920+, DS720+ 19 series: DS1819+, DS1019+, DVA3219 18 series: DS1618+, DS918+, DS718+, NVR1218 17 series: DS1817+, DS1817, DS1517+, DS1517 16 series: DS916+, DS716+II, DS716+ 15 series: DS1815+, DS1515+, DS1515 Supports creating volumes on a single unit only: 18 series DS218+; 16 series DS216+II, DS216+, NVR216; 15 series DS415+ |
| Optional / Recommended Accessories | Enterprise Series 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series |
