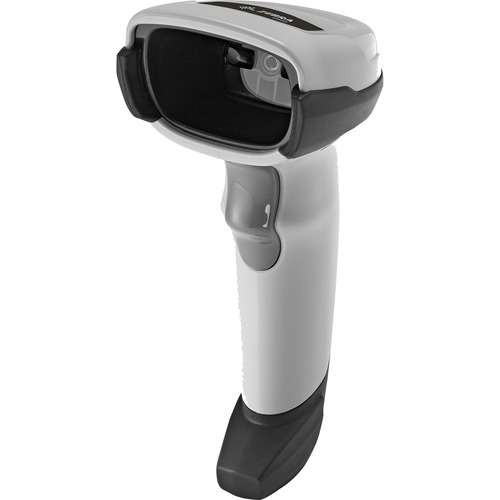

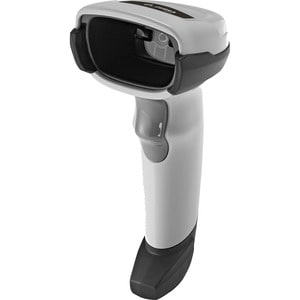

Ds2208-Sr White (With Stand) USB Kit: Ds2208-Sr00006Zzww Scanner. Cba-U21-S07Zbr Shielded USB Cable. 20-71043-04R Stand DS2208-SR6U2100SGW
$127.00
| SKU: | 387456 |
|---|---|
| MPN: | DS2208-SR6U2100SGW Link |
| Manufacturer: | https://www.zebra.com |
| Brand: | Zebra |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
DS2208-SR WHITE (WITH STAND) USB KIT: DS2208-SR00006ZZWW SCANNER. CBA-U21-S07ZBR SHIELDED USB CABLE. 20-71043-04R STAND
Specifications
▼
| Application/Usage | Retail, Transportation, Industrial, Logistics, Government, Hospitality, Light/Clean Manufacturing |
| Host Interface | USB |
| Product Type | Barcode Scanner Kit |
| Connectivity Technology | Cable |
| Form Factor | Handheld |
| Brand Name | Zebra |
| Scanning Distance | 368.30 mm |
| Scanner Range | Standard Range |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Imager |
| Product Family | DS2200 |
| Stand Included | Yes |
| Product Color | Nova White |
| Color Family | White |
| Ingress Protection (IP) Rating | IP42 |
| Cable Type Included | USB |
| Scanning Capability | 1D, 2D |
| Manufacturer Part Number | DS2208-SR6U2100SGW |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Packaged Quantity | 1 |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | DS2208-SR |
| Product Name | DS2208-SR Handheld Barcode Scanner with Stand |
| Product Series | DS2200 |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 161.6 g |
| Height | 165.1 mm |
| Width | 66 mm |
| Depth | 99.1 mm |
| Barcode Symbology Supported | 1D: • Code 39 • Code 128 • Code 93 • Codabar/NW7 • Code 11 • MSI Plessey • UPC/EAN • I 2 of 5 • Korean 3 of 5 • GS1 DataBar • Base 32 (Italian Pharma) 2D: • PDF417 • Composite Codes • TLC-39 • Aztec • DataMatrix • MaxiCode • QR Code • Micro QR • Chinese Sensible (Han Xin) • Postal Codes |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Scan Rate | 30 scan/s |
| Field of View (Horizontal) | 33° |
| Field of View (Vertical) | 25° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 127 mm/s |
| Maximum Ambient Light | 107600 lux |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 0.13 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Maximum Element Resolution (PDF417) | 0.17 mm |
| Shipping Dimensions | Height 14.5, Width 19, Length 23.6, Shipping Weight 0.67 KG |
Vendor Info
▼
DS2208-SR WHITE (WITH STAND) USB KIT: DS2208-SR00006ZZWW SCANNER. CBA-U21-S07ZBR SHIELDED USB CABLE. 20-71043-04R STAND
