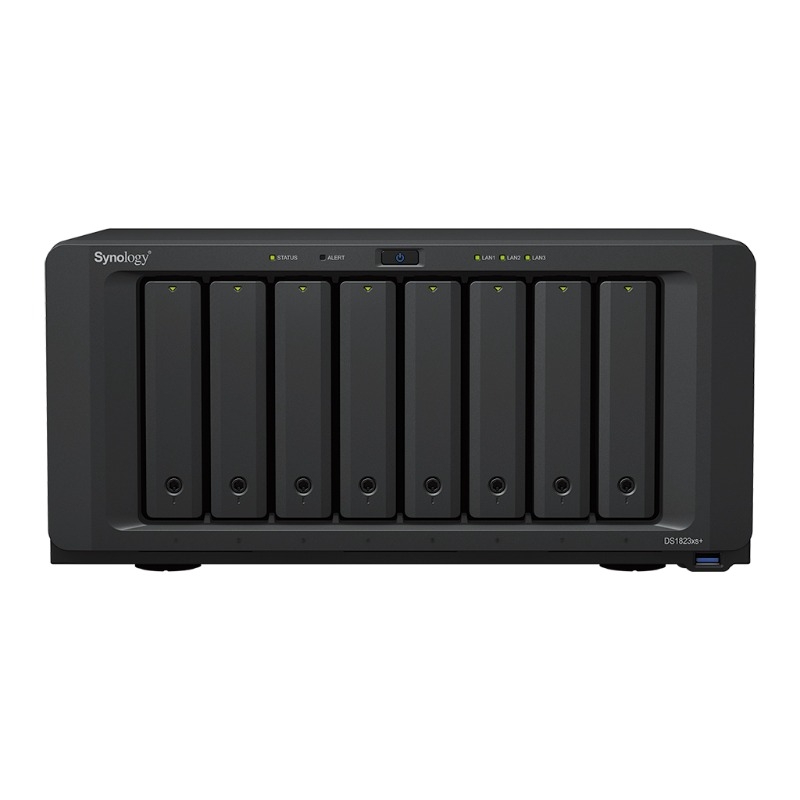

Synology DS1823xs+ DiskStation 8-Bay Nas ( Synology Hdd Only ) DS1823xs+
$3,151.00
| SKU: | 397057 |
|---|---|
| MPN: | DS1823xs+ Link |
| Manufacturer: | https://www.synology.com |
| Brand: | Synology |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Synology® DiskStation DS1823xs+ is a powerful 8-bay storage server that can easily be deployed anywhere to provide central data storage and sharing, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available. With over 3,100/2,600 MB/s sequential read/write performance, 144TB of raw storage, and the option to futher boost I/O speeds through SSD cache, the DS1823xs+ provides powerful and flexible storage.
Specification:
•CPU Frequency: AMD Ryzen 4-core 3.36Ghz,turbo boost up to 3.6Ghz
Floating Point : Yes
•Memory: DDR4 8GB ECC SODIMM (Expandable, up to 32GB
•Internal HDD/SSD: 3.5" or 2.5" SATA x8(Hard drive not included)2 x M.2 2280NVMe SSD ( drives not included )
•Hot Swappable HDD : Yes
•External HDD Interface: USB 3.0 Port x3, Expansion Port x2
•Size (HxWxD): 166x343x243mm
•Weight: 5.3Kg
•LAN: Gigabit x 2, 1 x 10Gbe
Specification:
•CPU Frequency: AMD Ryzen 4-core 3.36Ghz,turbo boost up to 3.6Ghz
Floating Point : Yes
•Memory: DDR4 8GB ECC SODIMM (Expandable, up to 32GB
•Internal HDD/SSD: 3.5" or 2.5" SATA x8(Hard drive not included)2 x M.2 2280NVMe SSD ( drives not included )
•Hot Swappable HDD : Yes
•External HDD Interface: USB 3.0 Port x3, Expansion Port x2
•Size (HxWxD): 166x343x243mm
•Weight: 5.3Kg
•LAN: Gigabit x 2, 1 x 10Gbe
Specifications
▼
| CPU | Cores: 4 Model: AMD Ryzen V1780B (embedded) Threads: 8 Architecture: x86 64-bit Base Frequency: 3.35 GHz Turbo Frequency: Up to 3.6 GHz |
|---|---|
| SKU | DS1823xs+ |
| UPC | 846504004959 |
| Brand | Synology |
| Model | DS1823xs+ |
| Power | AC Input: 100–240 V AC, 50/60 Hz, single phase Power Supply: Internal 250 W Power Consumption: { "Access (active)": "87.93 W (vendor figure)", "HDD Hibernation": "28.37 W (vendor figure)" } |
| Memory | Notes: Synology-branded ECC modules recommended by manufacturer Memory Type: ECC DDR4 SODIMM Memory Slots: 2 Preinstalled: 8 GB DDR4 ECC SODIMM Maximum Memory: 32 GB (16 GB x 2) |
| Series | DiskStation XS+ |
| Network | Notes: Can add additional high-speed networking via PCIe expansion card (10/25GbE or Fibre Channel) Onboard Ports: [ "1 x 10GbE RJ-45 (10GBASE-T)", "2 x 1GbE RJ-45", "1 x Out-of-Band (OOB) management LAN port" ] Link Aggregation: Supported (for 1GbE ports) |
| Physical | Weight: 6.2 kg Fan Modes: [ "Full-Speed", "Cool", "Quiet" ] Noise Level: 23.6 dB(A) (vendor figure) System Fans: 2 x 120 mm Chassis Material: Metal (external) with plastic drive trays Dimensions (H x W x D): 166 mm x 343 mm x 243 mm |
| Warranty | 5 years (limited manufacturer warranty) |
| M.2 Slots | Type: M.2 2280 NVMe Count: 2 Notes: PCIe Gen3 x4 lanes reported; some reviewers observed throughput limits on M.2 slots Usage: Cache or storage pool (NVMe) |
| USB Ports | 3 x USB 3.2 Gen 1 (USB-A) (typically 1 front, 2 rear) |
| Drive Bays | Total Bays: 8 Hot Swappable: Yes Expansion Method: Up to 2 x Synology DX517 expansion units via eSATA (each DX517 adds 5 bays) Supported Drive Types: [ "3.5\" SATA HDD", "2.5\" SATA HDD/SSD", "M.2 2280 NVMe SSD (via M.2 slots)" ] Maximum Expandable Bays: 18 |
| Description | The Synology DiskStation DS1823xs+ is a compact, high-performance 8-bay desktop NAS designed for small and medium-sized businesses and prosumers who need scalable central storage. Powered by an AMD Ryzen V1780B quad-core CPU and 8 GB DDR4 ECC SODIMM (expandable to 32 GB), the DS1823xs+ delivers up to ~3,100 MB/s sequential read and ~2,600 MB/s sequential write performance. It includes two M.2 NVMe slots for caching or storage pools, one PCIe Gen3 x8 (x4 link) expansion slot for 10/25GbE or Fibre Channel cards, and two eSATA expansion ports to attach up to two DX517 units (expandable to 18 total bays). The unit runs Synology DiskStation Manager (DSM) and supports Btrfs and ext4 file systems, multiple RAID types (RAID F1, 0, 1, 5, 6, 10, Basic, JBOD), and enterprise-grade features such as ECC memory, snapshot-based protection, surveillance management, VM storage, and extensive backup solutions. |
| Form Factor | 8-bay desktop (tower) NAS, diskless |
| Product Line | XS+ Series |
| Surveillance | Maximum IP Cameras (vendor example): Supports up to 75 IP cameras (varies by resolution/FPS and configuration) Default Surveillance Station Licenses: 2 |
| Product Title | Synology DiskStation DS1823xs+ 8-Bay NAS (Diskless) |
| Certifications | FCC CE BSMI VCCI RCM EAC CCC KC BIS |
| PCIe Expansion | Slots: 1 x PCIe Gen3 x8 slot (electrically x4 link) Supported Add-ons: 10GbE/25GbE NICs, Fibre Channel cards, other compatible PCIe cards (depends on card compatibility) |
| Package Contents | DiskStation DS1823xs+ main unit x1 Accessory pack x1 AC power cord x1 RJ-45 LAN cable x2 Quick Installation Guide x1 |
| RAID & File System | Supported RAID Types: [ "RAID F1", "Basic", "JBOD", "RAID 0", "RAID 1", "RAID 5", "RAID 6", "RAID 10" ] Internal File Systems: [ "Btrfs", "ext4" ] Synology Hybrid RAID (SHR): Not supported on XS series (DS1823xs+) |
| Operating Environment | Storage Humidity: 5% to 95% RH Operating Humidity: 8% to 80% RH Storage Temperature: -20°C to 60°C (-5°F to 140°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Storage & Performance | Sequential Throughput: Over 3,100 MB/s read / 2,600 MB/s write (vendor figures) Maximum Single Volume Size: 108 TB (200 TB with 32 GB memory requirement noted by Synology) Maximum Raw Storage (native): Depends on drive capacities (commonly listed as up to 144 TB raw with current supported drives) Random IOPS (example vendor figure): Over 173,100 read / 80,800 write (vendor figure) |
| eSATA / Expansion Ports | 2 x eSATA (for DX517 expansion units) |
| Operating System / Software | Synology DiskStation Manager (DSM) — supports DSM 7.x applications including Active Backup, Synology Drive, Surveillance Station, virtualization and snapshot features |
| Notes / Reviewer Observations (sourced) | Two M.2 NVMe slots can be used for caching or as storage pools; some reviewers observed M.2 throughput limitations (~1,000 MB/s observed per slot in tests). Some PCIe/M.2 combo upgrade cards may conflict with onboard M.2 usage; check compatibility before purchase. Synology recommends using drives and memory listed on their compatibility list; third-party drives may be functional but may be flagged as 'unverified' in DSM. |
| Optional / Compatible Accessories (examples from manufacturer listings) | Synology DDR4 ECC SODIMM: D4ES02-8G, D4ES03-16G Synology Expansion Unit: DX517 Synology Enterprise 3.5" SATA HDD: HAT5300 series Synology Plus Series 3.5" SATA HDD: HAT3300 series Synology Enterprise 2.5" SATA SSD: SAT5200 series Synology Enterprise M.2 NVMe SSD: SNV3400 & SNV5400 series Synology 25GbE NIC: E25G30-F2 Synology 10GbE NICs: E10G30-F2, E10G30-T2, E10G18-T1 |
