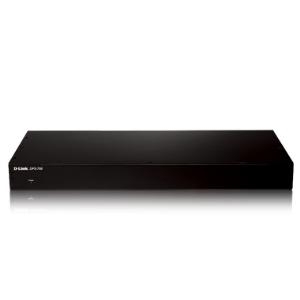

Dlink 589w Redundant Power Supply Unit Dps-700

$2,135.00
SKU:271509
MPN:DPS-700 Link
Manufacturer:https://www.dlink.com.au
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate
Untitled 1

The DPS-700 redundant power supply (RPS) is designed to conform to the wattage requirements of D-Link’s Ethernet and Gigabit switches. It is an external RPS unit enclosed in solid metal case with sockets to AC or DC power sources on one end, and connect to a switch’s internal power supply on the other end. The RPS provides a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switch, the devices attached to its ports, or an entire network. The DPS-700 also supports 1+1 power capabilities. When cascading the DPS-700 with a device’s internal power supply, the power system can provide an additional power budget to the PoE switch.

Redundant Power Backup
Each D-Link RPS is equipped with an integrated detection circuit that continuously monitors the switch’s internal power supply. In the event of a power interruption, the redundant power supply is immediately triggered so that the LAN switch and its connected devices can continue providing service. This results in a more reliable network infrastructure and protects the network from going down due to failure of a single network device power supply.

Easy and Flexible Deployment
Deployment of a DPS series device does not require any change in the configuration of the LAN switch. With the exception of the DPS-500DC, each RPS is equipped with a universal internal power supply, and can be connected to any AC power source from 90 V AC to 264 V AC, 47 Hz to 63 Hz through a standard AC power cable. The DPS-500DC provides the same output power as the DPS-500, but connects to a DC power source instead of an AC power source.

Rack Mounted Power Supply
The DPS-700 is 19-inch standard-size rack mount power supply designed to improve flexibility in supporting PoE (Power over Ethernet) equipment.

Untitled 1
Basic
Brand Name: D-Link
Efficiency: 80%
Form Factor: Rack-mountable
Input Voltage: 220 V AC
Output Power: 589 W
Product Type: Redundant Power Supply
General Information
Brand Name: D-Link
Manufacturer Part Number: DPS-700
Manufacturer Website Address: http://www.dlink.com.au
Manufacturer: D-Link Systems, Inc
Product Model: DPS-700
Product Name: DPS-700 Redundant Power Supply
Product Type: Redundant Power Supply
Miscellaneous
Compatibility:

D-Link DGS-3120 Series Switches:

  • DGS-3120-24PC
  • DGS-3120-48PC
  • DGS-3120-48PC
Physical Characteristics
Depth: 44 mm
Form Factor: Rack-mountable
Height: 441 mm
Hot Swappable Power Supply: Yes
Weight (Approximate): 3.70 kg
Width: 199 mm
Power Description
Input Current: 7.50 A @ 110V
Input Voltage Range: 90 V AC to 264 V AC
Input Voltage Type: AC
Input Voltage: 220 V AC
Output Power: 589 W
Reliability
MTBF: 624961 Hour
Technical Information
Efficiency: 80%
Protection Type: Over Current
Marketing TextBy providing up to 589 watts of redundant power, the DPS-700 provides fail-over protection in order to increase availability and uptime. It also supports 1+1 power capability allowing to increase power budget in PoE/PoE+ switches
PI DateJan 2012
Brand NameD-Link
Manufacturer Web Sitehttp://www.dlink.com
Product TypePower Supply
Depth (mm)199.0
Height (mm)44.0
Width (mm)441.0
Weight (Kg)3.7
Other Features* Output Power : 589 watts
* Input Voltage Range 85 to 264 V AC 90 to 264 V AC
* Input Frequency 47 to 63 Hz 47 to 63 Hz
* Max Input Current 10 A @ 115 V AC
5 A @ 230 V AC
7.5 A @ 115 V AC
3.7 A @ 230 V AC
* Max Inrush Current 30 A @ 115 V AC
60 A @ 230 V AC
30 A @ 115 V AC
30 A @ 230 V AC
* Efficiency 75% 80%
* Provides 589Watts backup or additional power for switch’s built-in power supply
* Supports 1 + 1 power capability
* 19-inch rack mountable
* Solid metal housing
* LED status indicators
* Over-current protection
* Advance Warranty Replacement (24 Hour Cross-shipment
