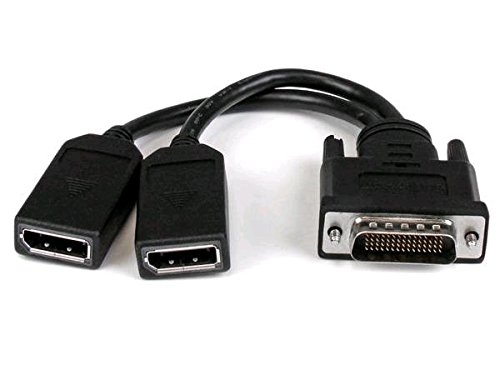

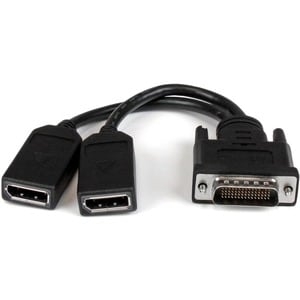

StarTech.com 8" Dms-59 To Dual DisplayPort Adapter Cable, 4K X 2K, Dms 59 Pin (M) To 2x DP 1.2 (F) Splitter Y Cable, Lfh To 2x DP Monitors - 7.8in Dms-59 To Dual DisplayPort Adapter; 4K X 2K (3840x2160p 60Hz)/21.6Gbps/HBR2 - Y-cable To Split The Video Si
gnal From Dms/Lfh 59/Lfh 60 Graphics Card To 2x DP Monitors/displays - Dms 59 To DP Cable Works W/ Ati Radeon X1300/Nvidia Quadro Nvs 440 DMSDPDP1
$39.00
| SKU: | 223646 |
|---|---|
| MPN: | DMSDPDP1 Link |
| Manufacturer: | http://www.startech.com/au |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
The DMSDPDP1 DMS-59 to Dual DisplayPort Cable allows you to split the video from a single LHF graphics card on to two DisplayPort (DP) monitors. The DMS to DP Y cable supports high resolutions of up to 4k x 2k (3840 x 2160) with a maximum HBR2 bandwidth of 21.6 Gbps and is compatible with DMS / LFH 59 or DMS / LFH 60 graphics cards such as Matrox, NVIDIA®; PNY, ATI and HP. Backed by our Lifetime Warranty, the DMSDPDP1 is designed and constructed for maximum durability - making it a reliable and cost-effective replacement for damaged or misplaced DMS to 2x DisplayPort cables. More from the Manufacturer More from the Manufacturer
Specifications
▼
| Cable Length | 20.32 cm |
| Product Type | A/V Cable |
| Shielding | Yes |
| Brand Name | StarTech.com |
| Cable Characteristic | Splitter Cable |
| Cable Type | DMS-59/DisplayPort |
| Connector Type on First End | DMS-59 Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Product Color | Black |
| Color Family | Black |
| Manufacturer Part Number | DMSDPDP1 |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 8in LFH 59 Male to Dual Female DisplayPort DMS 59 Cable |
| Compatibility | • AMD Fire ProW9100/8100, NVS 810/510 Graphic Card • Microsoft- Surface Pro 1-6 |
| Environmentally Friendly | Yes |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/dmsdpdp1_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/dmsdpdp1_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/dmsdpdp1_weee.pdf |
| Weight (Approximate) | 79.4 g |
| Shipping Height | 17.02 mm |
| Shipping Width | 145.03 mm |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Conductor | Copper |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | MacBook Pro, Monitor, MacBook Air, Graphics Card, Audio/Video Device, Tablet |
| Features | Damage Resistant, EMI Protection, Flexible, Fray Resistant, Molded, Multi-Stream Transport (MST) Support, Strain Relief |
| Connector Plating | Nickel |
| American Wire Gauge | 32 AWG |
| Supported Resolution | 3840 x 2400 |
| Connector on First End Details | 1 x 59-pin DMS-59 Video - Male |
| Connector on Second End Details | 2 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female |
| Shipping Dimensions | Height 1.5, Width 6.5, Length 21.5, Shipping Weight 0.08 KG |
Vendor Info
▼
StarTech.com 8" DMS-59 to Dual DisplayPort Adapter Cable, 4K x 2K, DMS 59 pin (M) to 2x DP 1.2 (F) Splitter Y Cable, LFH to 2x DP Monitors - 7.8in DMS-59 to Dual DisplayPort adapter; 4K x 2K (3840x2160p 60Hz)/21.6Gbps/HBR2 - Y-cable to split the video signal from DMS/LFH 59/LFH 60 graphics card to 2x DP monitors/displays - DMS 59 to DP cable works w/ ATI Radeon X1300/NVIDIA Quadro NVS 440
