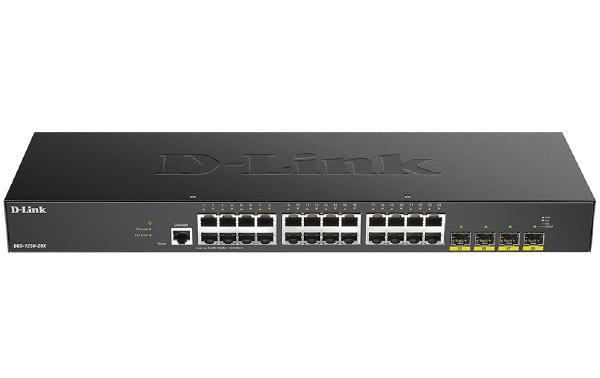

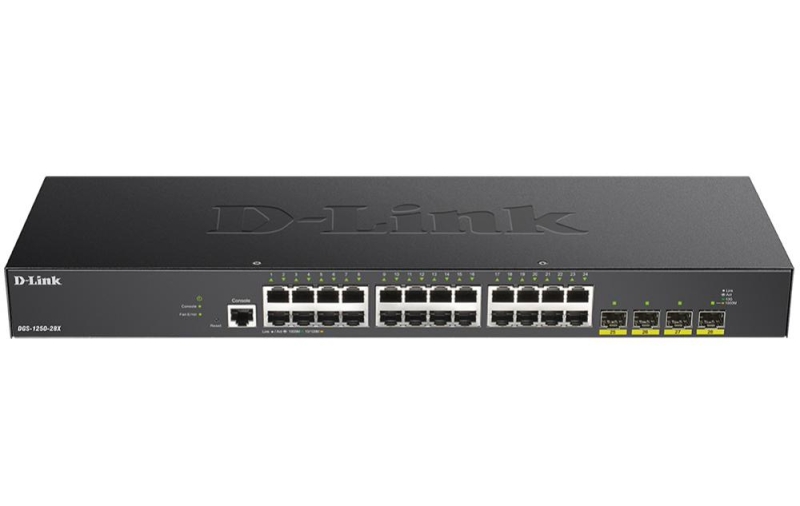

D-Link 28-Port Gigabit Smart Managed Switch with 24 RJ45 and 4 SFP+ 10G Ports (DGS-1250-28X)

$544.00
SKU:304106
MPN:DGS-1250-28X Link
Manufacturer:https://www.dlink.com/en/
Brand: D-link
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate
New Page 1 The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features. The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers, enabling real network horsepower.
  • 24 x 10/100/1000BASE-T ports
  • 4 x 10G SFP+ ports for choosing the most suitable media type for your requirement
  • Lite L3 Static Routing for increased network efficiency
  • Advanced security features such as Access Control List, IMPB, 802.1X Authentication to enhance network security and protect the internet IT network
  • Dual Image & Configuration for reduced downtime
  • Supports STP/RSTP/MSTP to maintain the quality of network
  • Full CLI for for easy management
  • QoS Enablement for performance improvement of critical network traffic
New Page 1
Power Input 100-240 VAC
CPU Speed 800MHz
DRAM Size DDR3 2G
Flash Memory Size 64MB
Packet Buffer Size 12MBits
FAN Yes
Physical Stacking No
1000Base-T Interface 24
10G SFP+ Interface 4
Auto MDI/MDIX Yes
Console Port Yes
RJ-45 Management Port No
Alarm Port No
CompactFlash (CF) Card Slot No
Secure Digital (SD) Card Slot No
USB Port No
Number of Module Slots No
10/100/1000 BASE-T 24
10G SFP + ports 4
Switch Capacity 128 Gbps
Max. Packet Forwarding Rate 95.24 Mpps
Dimension 440mm x 140 mm x 44mm
Maximum Heat Dissipation 104.346 BTU/hr (100 V)100.936 BTU/hr (240 V)
Weight 1.75 kg
Operation Temperature -5 - 50°C
Storage Temperature -20-70°C
Operation Humidity 0% - 95% RH
Storage Humidity 0% ~ 95% RH
Operating Altitude 1500 meters
Maximum Power Consumption 30.6 W/100 V29.6 W/240 V
MTBF 743,482.45 hours
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers, enabling real network horsepower.
