HARDWARE FEATURES
Processor	Qualcomm 1 GHz Quad-core CPU
Interface	2 LAN/WAN Gigabit Ethernet Ports
Button	1 Reset button on the underside
Dimensions	Φ4.33 in. × 4.49 in. (Φ110 mm × 114 mm)
Antenna	4 internal antennas per Deco unit

WIRELESS FEATURES
Wireless Standards	IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2.4 GHz
Frequency	5 GHz 2.4 GHz
Signal Rate	1201 Mbps (5 GHz) 574 Mbps (2.4 GHz)
Transmit Power	FCC: <30 dBm CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz)
Wireless Security	WPA-PSK WPA2-PSK WPA3
Advanced Functions	● Router/ Access Point Mode ● Optional Ethernet Backhaul ● TP-Link Mesh Technology: MU-MIMO OFDMA 1024-QAM BSS Color Auto Path Selection Self-Healing AP Steering Band Steering Beamforming

SOFTWARE FEATURES
Quality of Service	WMM
IPv6	Support
WAN Type	Dynamic IP/Static IP/PPPoE
Management	Local Management, Remote Management
DHCP	Server, Client
Port Forwarding	Support
Access Control	Blacklist
Firewall Security	SPI Firewall
Protocols	Supports IPv4 and IPv6
Advanced Features	Homecare: Antivirus Parental Controls Quality of Service
Advanced Functions	Speedtest Monthly Usage Reports Auto FW Update Expand Coverage by Adding more decos
Guest Network	2.4 GHz guest network * 1 5 GHz guest network * 1
Beamforming	Support
APP	Easy setup by Deco App

OTHERS
Certification	CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS
Package Contents	● Deco X20 (1-pack): 1 Deco X20 units 1 RJ45 Ethernet Cable 1 Power Adapters 1 Quick Installation Guide
Smartphone/Tablet Requirements	iOS 9.0 or later Android 4.4 or later
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

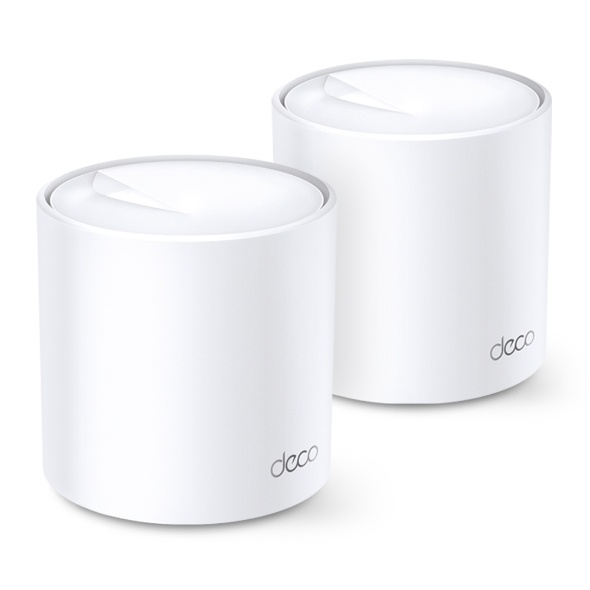

TP-LINK DECO X20 2-PACK AX1800 SMART WHOLE HOME MESH WIFI SYSTEM, 3YR
