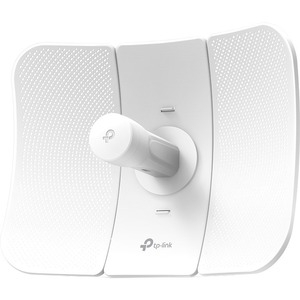

    TP-Link 5 GHz AC867 23 DBi Outdoor Cpe, 1 × Gigabit Shielded Ethernet Port, 867 Mbps At 5 GHz, 3 Year Wty CPE710

    $164.00
    SKU:394274
    MPN:CPE710 Link
    Manufacturer:https://www.tplink.com
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    "TP-Link 5 GHz AC867 23 dBi Outdoor CPE
    Port: 1 × Gigabit Shielded Ethernet Port
    SPEED: 867 Mbps at 5 GHz
    FEATURE: 23dBi, 30+ km, IP65 Weatherproof, Passive PoE, Centralized Management, Spectrum Analyzer, AP/Client/AP Router/AP Client Router"
    PoEType: Passive PoE PoE Pinout: +4,5 pins; -7,8 pins Voltage Range: 16–27 V DC PoE Injector Input: 100–240 VAC, 50/60 Hz PoE Injector Ports: 1 × Gigabit (Power + Data), 1 × Gigabit (Data) Standard Injector Included: Yes (24 V DC, 0.5 A output)
    SKUCPE710
    BrandTP-Link
    ModelCPE710
    PowerPoE Adapter Output: 24 V DC, 0.5 A Max Power Consumption: 7.3 W
    SeriesCPE710
    Weight2.2 lb (approx.)
    CategoryNetworking
    HardwareCPU: Qualcomm 750 MHz (MIPS 74Kc) Flash: 16 MB Memory: 128 MB DDR2 RAM
    WarrantyLimited Warranty: 2 Year
    EnclosureMaterial: Outdoor PC stabilized plastic Weatherproof Rating: IP65 Wind-resistant Construction: Snap-lock assembly and sturdy structural design
    Impedance50 Ohms
    InterfacesReset: 1 × Reset Button Ethernet: 1 × 10/100/1000 Mbps Shielded Ethernet Port (LAN/PoE)
    Modulation256 QAM
    ProtectionESD Protection: 15 kV Lightning Protection: 6 kV
    DescriptionThe TP-Link CPE710 is a long-range outdoor CPE operating on 5.15–5.85 GHz with IEEE 802.11a/n/ac support and up to 867 Mbps (80 MHz) throughput. It integrates a 23 dBi directional 2×2 MIMO antenna with narrow beamwidth for long-distance point-to-point and point-to-multipoint links. Built for outdoor use, the CPE710 features an IP65 weatherproof enclosure, 15 kV ESD and 6 kV lightning protection, a sturdy snap-lock assembly for wind resistance, and centralized management via Pharos Control / PharOS. The unit is powered via passive PoE (24V 0.5A injector included) and provides a single shielded Gigabit Ethernet LAN/PoE port for data and power.
    IdentifiersMPN: CPE710 UPC: [ "845973089702", "840460604888", "0845973089702" ] ASIN: B08D71HC9L
    Antenna Gain23 dBi
    Antenna TypeHigh-gain directional integrated antenna
    Sub-CategoryWireless Networking
    Also Known AsTL-CPE710 TP-LINK CPE710
    Antenna Count2
    EnvironmentalStorage Humidity: 5%–95% non-condensing Operating Humidity: 10%–90% non-condensing Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
    Maximum RangeUp to 5 kilometers (as stated by product listings)
    Product TitleTP-Link CPE710 5GHz 802.11ac 867Mbps 23dBi Outdoor CPE
    CertificationsCE FCC RoHS IP65
    Channel Widths20 MHz 40 MHz 80 MHz
    Number of BandsSingle-Band (5 GHz)
    Package ContentsOutdoor Wireless CPE (CPE710) 24 V 0.5 A Passive PoE Adapter (injector) Pole Mounting Kits AC Power Cord Installation Guide
    Antenna BeamwidthAzimuth: 9° Elevation: 7°
    Transmission PowerMax. 27 dBm (adjustable in 1 dBm steps)
    Wireless Frequency5.15–5.85 GHz
    Wireless StandardsIEEE 802.11a IEEE 802.11n IEEE 802.11ac
    Physical DimensionsInches (W x D x H): 14.4 x 11.0 x 8.1 in Millimeters (W x D x H): 366 x 280 x 207 mm
    Supported TopologiesPoint-to-Point (PtP) Point-to-Multipoint (PtMP)
    Antenna Configuration2 × 2 MIMO
    Software & ManagementFeatures: [ "Discovery and remote management with Pharos Control", "System log, Dynamic DNS, Ping watchdog", "Spectrum analyzer, Speed Test, Ping, Traceroute, Antenna alignment", "Monitors: Signal Strength, Noise, Transmit CCQ, CPU, Memory, Throughput, Stations", "Optimized IGMP Snooping/Proxy" ] Management Platform: Pharos Control (Windows); PharOS web-based management Management Interfaces: [ "HTTP", "HTTPS", "SNMP (v2c)", "SSH" ]
    Maximum Wireless Data RateUp to 867 Mbps (80 MHz)
    POE Adapter CertificationsCE FCC UL IC GS PSB C-tick SAA S-Mark KC-mark
    System Tools & DiagnosticsSpectrum Analyzer Speed Test Ping Traceroute Antenna Alignment Throughput and interface monitoring
    Wireless Security & FeaturesFeatures: [ "Automatic channel selection", "RF transmit power adjustment (1 dB step)", "Dynamic Frequency Selection (DFS)", "WDS enable/disable", "Multi-SSID with VLAN tagging (AP mode)", "Distance / ACK timeout setting", "Wireless MAC address filter", "Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, WMM" ] Security: [ "WPA", "WPA2", "WPA-PSK", "WPA2-PSK (AES/TKIP)" ]
    Wireless Speeds (additional)20 MHz: Up to 173.4 Mbps (dynamic) 40 MHz: Up to 400 Mbps (dynamic)
    TP-Link 5 GHz AC867 23 dBi Outdoor CPE, 1 × Gigabit Shielded Ethernet Port, 867 Mbps at 5 GHz, 3 Year WTY
