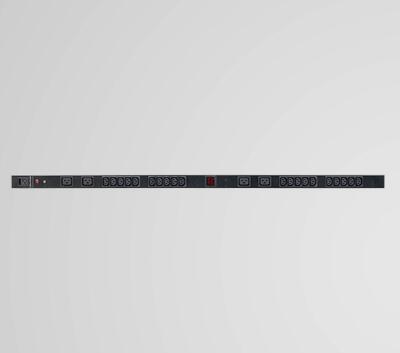

CyberPower- 0U Metered Pdu (PDU20MVHVIEC24F) 16Amp Input/output -24x Iec-320 (4-C19 & 20-C13) Out – Iec-320 C20 In - 2 Years Advanced Replacement Warranty PDU20MVHVIEC24F
$344.00
| SKU: | 256186 |
|---|---|
| MPN: | PDU20MVHVIEC24F Link |
| Manufacturer: | https://www.cyberpower.com |
| Brand: | Cyberpower |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
General
Type: Metered
Phase: Single Phase
Input
Nominal Input Voltage (Vac): 200 ~ 230
Input Frequency (Hz): 50 / 60
Maximum Input Current (A): 16
Input Connector Type: IEC C20 x 1
Power Cord Length (ft.): 10
Power Cord Length (m.): 3.05
Output
Output Voltage (V): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank) (A): 16
Outlet(s) - Total: 24
Outlet(s) - Front: 24
Outlet Type:
IEC C13 x 20
IEC C19 x 4
Management & Communications
LED Indicators: Load
Physical
Installed Rack Height (U): 0
Form Factor: 0U Vertical Rackmount , Undercounter Installation Supported
Enclosure Construction: Steel
Color: Black
Cord Retention Tray: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 3 Set
Physical Size
Dimensions (WxHxD) (in.): 1.75 x 48 x 1.5
Dimensions (WxHxD) (mm.): 44.45 x 1219.2 x 38.1
Weight (lbs.): 5.79
Weight (kg.): 2.63
Shipping Dimensions
Dimensions (WxHxD) (in.): 6.06 x 52.44 x 2.87
Dimensions (WxHxD) (mm.): 154 x 1
Type: Metered
Phase: Single Phase
Input
Nominal Input Voltage (Vac): 200 ~ 230
Input Frequency (Hz): 50 / 60
Maximum Input Current (A): 16
Input Connector Type: IEC C20 x 1
Power Cord Length (ft.): 10
Power Cord Length (m.): 3.05
Output
Output Voltage (V): Depends on Input
Overload Protection: Circuit Breaker
Over Current Protection (Each Bank) (A): 16
Outlet(s) - Total: 24
Outlet(s) - Front: 24
Outlet Type:
IEC C13 x 20
IEC C19 x 4
Management & Communications
LED Indicators: Load
Physical
Installed Rack Height (U): 0
Form Factor: 0U Vertical Rackmount , Undercounter Installation Supported
Enclosure Construction: Steel
Color: Black
Cord Retention Tray: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 3 Set
Physical Size
Dimensions (WxHxD) (in.): 1.75 x 48 x 1.5
Dimensions (WxHxD) (mm.): 44.45 x 1219.2 x 38.1
Weight (lbs.): 5.79
Weight (kg.): 2.63
Shipping Dimensions
Dimensions (WxHxD) (in.): 6.06 x 52.44 x 2.87
Dimensions (WxHxD) (mm.): 154 x 1
Specifications
▼
| UPC | 649532902408 |
|---|---|
| Amps | 20A (derated to 16A) |
| Type | Metered Power Distribution Unit (PDU) |
| Brand | CyberPower |
| Color | Black |
| Model | PDU20MVHVIEC24F |
| Notes | Distributes power from a single IEC-320 C20 plug to 20 x C13 and 4 x C19 receptacles; configured with front-facing outlets for easy access in rack installations. |
| Series | Metered |
| Weight | 6.6 lb |
| Features | Metered PDU with local amperage LCD Unfiltered electrical pass-through Cord retention tray Adjustable mounting brackets (multiple sets) Supports vertical, horizontal and wall/under-counter mounting Rugged industrial metal housing Built-in circuit breaker / overload protection |
| Mounting | Vertical rackmount; supports vertical, horizontal and wall/under-counter installation |
| Warranty | Limited lifetime warranty |
| Frequency | 50 / 60 Hz |
| Monitoring | Front LCD displays current draw in amps (real-time local monitoring) |
| Cord Length | 10 ft (3.05 m) |
| Description | The CyberPower PDU20MVHVIEC24F is a metered 0U vertical rackmount power distribution unit that delivers 200–230V at 20A (derated to 16A) with a single IEC-320 C20 input. It provides 24 front-facing IEC outlets (20 x IEC-320 C13 and 4 x IEC-320 C19) and features a front LCD that displays real-time amperage for connected equipment. Built with an industrial-grade metal housing, a 10 ft power cord, adjustable mounting brackets and a cord retention tray, it supports vertical, horizontal and wall/under-counter installations. Safety and compliance include ETL and RoHS (also listed with CE/UL references on some sources). Limited lifetime warranty. |
| Form Factor | 0U Vertical Rackmount |
| Manufacturer | Cyber Power Systems (USA) Inc. |
| Outlet Types | IEC-320 C13: 20 IEC-320 C19: 4 |
| Input Voltage | 200 - 230 V AC |
| Product Title | CyberPower PDU20MVHVIEC24F 24-Outlet Metered 0U Vertical Rackmount PDU (200-230V, 20A) - 20x IEC C13 / 4x IEC C19, 10 ft Cord |
| Certifications | ETL RoHS CE UL60950 |
| Output Voltage | 200 - 230 V AC (depends on input) |
| Input Connector | IEC 60320 C20 (IEC-320 C20) |
| Outlets - Front | 24 |
| Outlets - Total | 24 |
| Housing Material | Industrial-grade metal / steel |
| Dimensions (inches) | Depth: 2.25 in Width: 1.75 in Height: 48 in |
| Overload Protection | Built-in circuit breaker / overload protection (derated to 16A) |
| Included Accessories | Cord retention tray User manual / product registration card Screw kit Cord clip kit Horizontal mounting brackets Vertical mounting brackets Cable ties |
| Mounting Accessories | Adjustable mounting brackets (multiple sets), horizontal mounting brackets, vertical mounting brackets, screw kit, cord clip kit, cable ties |
| Maximum Input Current | 20A (derated to 16A) |
| External Site Ground Pin | Yes |
| Manufacturer Part Number | PDU20MVHVIEC24F |
| Environmental Specifications | Storage Elevation: 0 to 49,213 ft (0 to 15,000 m) Operating Elevation: 0 to 9,843 ft (0 to 3,000 m) Storage Temperature: 5 to 113 °F (-15 to 45 °C) Operating Temperature: 32 to 95 °F (0 to 35 °C) Storage Relative Humidity: 0% to 95% Operating Relative Humidity: 0% to 95% (non-condensing) |
