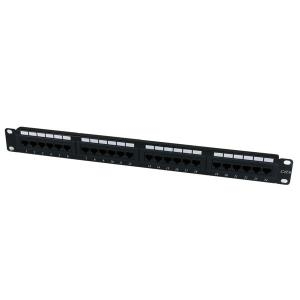

Startech 24 Port 1u Rackmount Cat 6 110 Patch Panel - 24 Port Network Patch Panel - Rj45 Ethernet
110 type Rack Mount Patch Panel 1U C6PANEL24
$140.00
| SKU: | 245241 |
|---|---|
| MPN: | C6PANEL24 Link |
| Manufacturer: | https://www.startech.com/ |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.
For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.
The StarTech.com Advantage
- Organize up to 24 Cat6 patch cables
- Clearly numbered RJ45 ports make it easy to identify your cable runs
- Label each cable run on the writable / erasable marking surface of each port located on the front of the panel for efficient system management
Specifications
▼
| Environmental | |
| Humidity | 10~65% |
| Operating Temperature | -10~60? |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 670 g [23.7 oz] |
| Physical Characteristics | |
| Color | Black |
| Product Height | 44 mm [1.7 in] |
| Product Length | 34 mm [1.3 in] |
| Product Weight | 578 g [20.4 oz] |
| Product Width | 483 mm [19 in] |
| Special Notes / Requirements | |
| Note | IDC Contact : 0.8mm Thickness Phosphor Bronze, Tin Plating Over Nickel |
| What's in the Box | |
| Included in Package | 24 Port 1U Rackmount Cat 6 110 Patch Panel |
| M5 Screws | |
| M6 Screws | |
Vendor Info
▼
| Marketing Text | The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application. |
| PI Date | Jun 2017 |
| Brand Name | Startech |
| Manufacturer Web Site | http://www.startech.com |
| Product Type | Patch Panel |
| Rack Height | 1U |
| Depth (mm) | 34.0 |
| Height (mm) | 44.0 |
| Width (mm) | 483.0 |
| Weight (Grams) | 578.0 |
| Color | Black |
| Package Includes | * 1 - 24 Port 1U Rackmount Cat 6 110 Patch Panel * 4 - M6 Screws * 4 - M5 Screws |
| Compliance Standards | * RoHS Compliant |
| Other Features | * Color coded for both T568A and T568B installations * Terminated using 110-type punch tool * Supports both Cat5e and Cat6 cables |
| Warranty Information | 2 Year |
