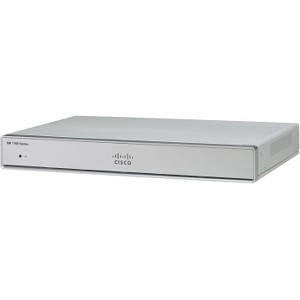

    Cisco (c1117-4p) Isr 1100 4 Ports Dsl Annex A/ M And Ge Wan Router C1117-4p

    $1,380.00
    SKU:262422
    MPN:C1117-4P Link
    Manufacturer:https://www.cisco.com/
    Brand: Cisco
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    Business need

    Features/description

    Lightweight, compact size with low power consumption
    ●  Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors (Including Cisco Pluggable smaller form factor technology).

    High performance to run concurrent services
    ●  High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.

    High availability and business continuity
    ●  Redundant WAN connections for failover protection and load balancing.
    ●  Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).

    Consistent, high application performance levels
    ●  The router can run multiple services simultaneously with minimal performance degradation.

    Risk mitigation with multilevel security
    ●  Network perimeter security with integrated application inspection firewall.
    ●  Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.
    ●  High-performance VPNs: DMVPN, FlexVPN, GETVPN.
    ●  Encrypted Traffic Analytics (ETA) to identify malware communications in encrypted traffic using passive monitoring, extraction of relevant data elements, and supervised machine learning with cloud-based global visibility.
    ●  Cisco Umbrella™ is a cloud security platform that provides the first line of defense against threats on the internet wherever users go.
    ●  Security hardware acceleration.
    ●  Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.

    Unified control of wired and wireless networks from a common console for streamlined operations
    ●  Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
    ●  Supports Mobility Express for WLAN-enabled routers.

    Remote configuration and management to keep local IT staff lean
    ●  Supports separate console/auxiliary and USB ports. Can be configured to work with optional USB token.
    ●  Supports TR-069.

    Performance

    ●  Throughput
    ●  Service reliability
    ●  ISR 1100 can provide encrypted traffic performance greater than 350 Mbps.
    ●  A distributed multicore architecture with the dedicated control plane and service plane.
    ●  Remote installation of application-aware services that run identically to their counterparts in dedicated appliances (Future roadmap).

    Lower WAN expenditures
    ●  Cisco Software-Defined WAN (SD-WAN) support for optimized WAN connection.
    ●  Smaller form factor and Cisco Pluggable technology provide additional protection investment and flexibility.

    Pay as you grow: IPsec performance upgrade model
    ●  Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings and CapEx budget management.

    IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
    ●  Single converged branch platform integrates routing, switching, security, and performance management capabilities.

    Business continuity and increased resiliency
    ●  The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints (Not available on C1101 smaller form factor series).
    Basic
    Brand Name: Cisco
    Ethernet Technology: Gigabit Ethernet
    Form Factor: Rack-mountable
    Network Technology: 10/100/1000Base-TX
    Number of Total Expansion Slots: 1
    Product Family: 1100
    Product Type: Router
    Redundant Power Supply Supported: No
    Total Number of Ports: 6
    General Information
    Brand Name: Cisco
    Manufacturer Part Number: C1117-4P
    Manufacturer Website Address: http://www.cisco.com/c/en_au
    Manufacturer: Cisco Systems, Inc
    Product Model: C1117-4P
    Product Name: C1117-4P Router
    Product Series: 1100
    Product Type: Router
    I/O Expansions
    Number of Total Expansion Slots: 1
    Interfaces/Ports
    Management Port: Yes
    Powerline: No
    Total Number of Ports: 6
    Media & Performance
    Broadband Transmission Technology: VDSL
    Network & Communication
    Ethernet Technology: Gigabit Ethernet
    Network Technology: 10/100/1000Base-TX
    VoIP Supported: No
    Physical Characteristics
    Depth: 243.8 mm
    Form Factor: Rack-mountable
    Height: 44.5 mm
    Weight (Approximate): 2.59 kg
    Width: 322.6 mm
    Power Description
    PoE (RJ-45) Port: Yes
    Redundant Power Supply Supported: No
