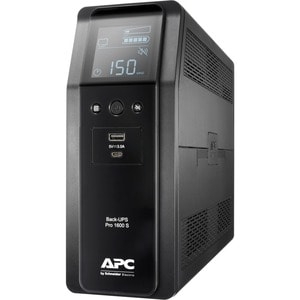

Apc - Schneider Back UPS Pro BR 1600VA. Sinewave.8 Outlets. AVR. LCD interface BR1600SI

$744.00
SKU:368707
MPN:BR1600SI Link
Manufacturer:https://www.apc.com/
Brand: Apc - Schneider
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate

BR1600SI Features

Key Features


Run time for load
Min-max: 96-960 W
W
3m 36s
Max. Capacity Used


100%
Output power capacity
960 Watts / 1.6kVA
Output Connections
(6) IEC 60320 C13 (Battery Backup)
(2) IEC 60320 C13 (Surge Protection)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60320 C14
Back UPS Pro BR 1600VA, Sinewave,8 Outlets, AVR, LCD interface
High Performance Computer and Electronics UPS for Premium Power Protection
Includes: USB cable, User manual
  • Audible alarms
    Provides notification of changing utility power and UPS power conditions
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Battery replacement without tools
    Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
  • Battery-protected and surge-only outlets
    Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
  • Boost and Trim Automatic Voltage Regulation (AVR)
    Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Dataline surge protection
    Provides protection of connected equipment from power surges on the data lines.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • Hot-swappable batteries
    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • PowerChute Personal Edition OS Compatibility
    This software supports numerous operating systems and processors. For further information, please bra href="http://www.apc.com/wp/?um=300"click here./a
  • Safety-agency approved
    The UPS is UL1778 Listed
  • Sine wave output
    Eliminates humming and heat generated when powering tube lights and fans
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).
  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)





Back UPS Pro BR 1600VA, Sinewave, 8 Outlets, AVR, LCD interface. High Performance Computer and Electronics UPS for Premium Power Protection
Guides & Documents
Controls/Indicators
Status Indicators LCD Interface:
    • Utility conditions
    • UPS conditions
Battery Information
Battery Chemistry Lead Acid
Replaceable Battery Yes
Management
Alarm Low Battery
On Battery
Replace Battery
Technical Information
Application/Usage Multimedia Device
Business
Desktop Computer
Electronic Equipment
SOHO Office
Home
Workstation
Dataline Protection RJ-45
Overload Protection Yes
Receptacles 8 x IEC
2 x USB Outlet
Plug/Connector Type IEC
AVR Yes
Number of Battery & Surge Outlets 6
Number of Surge-only Outlets 2
Physical Characteristics
Weight (Approximate) 12.10 kg
Form Factor Tower
Height 368 mm
Width 100 mm
Depth 260 mm
Power Description
Input Voltage 230 V AC
Output Voltage 230 V AC
Load Capacity 1.60 kVA/960 W
Waveform Type Sine Wave
Output Frequency 50 Hz to 60 Hz
Input Frequency 50 Hz to 60 Hz
General Information
Product Type Line-interactive UPS
Manufacturer Website Address http://www.schneider-electric.com.au
Manufacturer Schneider Electric SA
Product Model BR1600SI
Product Name Back-UPS Pro BR1600SI 1600VA Tower UPS
Product Line Back-UPS Pro
Product Series BR
Brand Name APC by Schneider Electric
