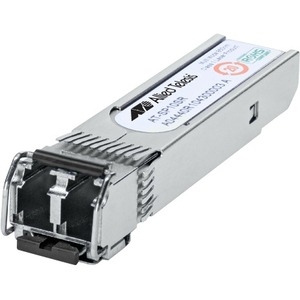

Allied Telesis 850nm Short-haul (300m With Mmf) AT-SP10SR
$289.00
| SKU: | 394241 |
|---|---|
| MPN: | AT-SP10SR Link |
| Manufacturer: | https://www.alliedtelesis.com |
| Brand: | Allied Telesis |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
Allied Telesis Allied Telesis 850nm short-haul (300m with MMF) is a supplier-matched product available from Spot IT.
Use this item for compatible business, office, and IT requirements. Manufacturer part number: ADSP10SR.
Order online for Australia-wide delivery with local support.
Use this item for compatible business, office, and IT requirements. Manufacturer part number: ADSP10SR.
Order online for Australia-wide delivery with local support.
Specifications
▼
| SKU | AT-SP10SR |
|---|---|
| Brand | Allied Telesis |
| Model | AT-SP10SR |
| Notes | Module supports digital monitoring and hot-swap operation. Some listings describe compatible/third-party equivalents with extended temperature ranges or alternate warranty terms; specs above reflect combined OEM and compatible-module reported values. |
| Connector | Duplex LC |
| Data Rate | 10 Gbps (supports up to 10.3 Gbps) |
| Fiber Type | Multi-mode fiber (MMF) |
| Wavelength | 850 nm |
| Description | Hot-pluggable SFP+ optical transceiver for 10 Gigabit Ethernet short-reach links. The Allied Telesis AT-SP10SR supports 10Gbps (up to 10.3Gbps) over multimode fiber at a nominal 850 nm wavelength, with duplex LC connector. It provides digital diagnostics/DOM (temperature, Vcc, Tx optical power, Tx laser bias current and Rx optical power) and is compliant with SFP+ MSA and relevant SFF/IEEE standards for broad interoperability. Typical reach is up to 300 m over OM3 multimode fiber (compatible 3rd‑party modules report up to 400 m on OM4). |
| Form Factor | SFP+ (hot-pluggable, small form-factor) |
| Max Distance | Up to 300 m (OM3 MMF). Compatible modules report up to 400 m on OM4. |
| Product Type | SFP+ transceiver module |
| Compatibility | Allied Telesis platforms and other SFP+ MSA-compatible switches, routers and NICs (MSA-compliant) |
| Product Title | Allied Telesis AT-SP10SR SFP+ 10GBase-SR 850nm 300m LC MMF Transceiver |
| Receiver Type | PIN (reported) |
| Transmitter Type | VCSEL (reported) |
| Protocol/Standard | 10GBase-SR, IEEE 802.3ae |
| Weight (reported) | 0.03 kg (reported) |
| Interface Provided | 1 x LC Duplex 10GBase-SR |
| Network Technology | 10 Gigabit Ethernet |
| Storage Temperature | -40°C to +85°C (reported) |
| TX Power (reported) | -6 to -1 dBm |
| Warranty (reported) | Limited 1 year (reported) |
| Dimensions (reported) | 56.7 × 13.7 × 8.5 mm (module body, reported) |
| Operating Temperature | 0°C to 70°C (commercial). Industrial variants/compatible modules reported -40°C to +85°C. |
| Optical Budget (reported) | 4.6 dB |
| Compliance / Certifications | SFP+ MSA SFF-8431 SFF-8432 SFF-8472 IEEE 802.3ae RoHS CE REACH |
| Country of Origin (reported) | Taiwan |
| Max Transfer Rate (reported) | 10.3 Gbps |
| Power Consumption (reported) | ≈ 1 W |
| Digital Diagnostics (DDM/DOM) | Yes — Temperature, Vcc, Tx optical power, Tx laser bias current, Rx received optical power |
| Receiver Sensitivity (reported) | < -10 dBm |
