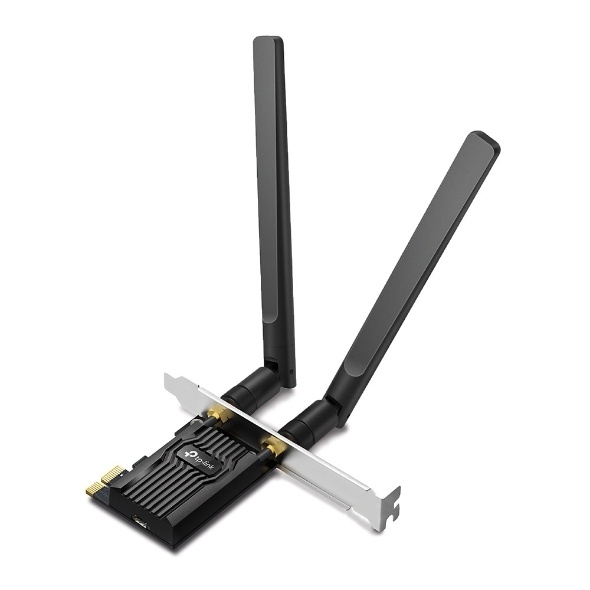

TP-LINK AX1800 WI-FI 6 BLUETOOTH 5.2 PCIE ADAPTER ARCHER-TX20E
$60.00
| SKU: | 398149 |
|---|---|
| MPN: | ARCHER TX20E Link |
| Manufacturer: | https://www.tp-link.com |
| Brand: | Tplink |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Specifications
▼
| HARDWARE FEATURES | |
|---|---|
| Dimensions | 4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm) |
| Antenna Type | Two High-Gain Dual Band Antennas |
| Chipset | Realtek Wi-Fi 6 Chipset |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2 |
| WLAN Signal Rate | 5 GHz 11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 5 GHz : 11ax HE80: -57.0dBm 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11ac VHT80: -59.5dBm 11ac VHT40: -62.5dBm 11ac VHT20: -67.5dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11a 54Mbps: -74.0dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11g 54Mbps: -74.0dBm 11b 11Mbps: -88.0dBm |
| WLAN Transmit Power | 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Archer TX20E Two High-Gain Dual Band Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Windows 11/10(64-bit) only |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Vendor Info
▼
TP-LINK AX1800 WI-FI 6 BLUETOOTH 5.2 PCIE ADAPTER
