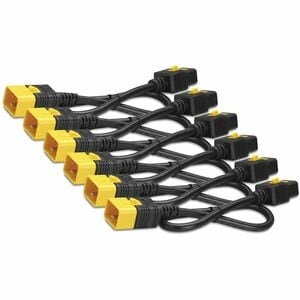

    Apc Power Cord Kit C19 To C20 1.8m Power Cord Kit (6 Ea) Ap8716s

    $308.00
    SKU:82784
    MPN:AP8716S Link
    Manufacturer:http://www.apc.com/
    Brand: Apc
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    AP8716S Features

    Power Cord Kit (6 ea), Locking, C19 to C20, 1.8m

    Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

    Output

    • Cord Length
      6 ft ( 1.83 meters )
    • Maximum Total Current Draw
      16
    • Output Connections
      (1) IEC 320 C19 (Battery Backup)

    Input

    • Input Connections
      IEC-320 C20
    • Cord Length
      6 ft ( 1.83 meters )
    • Number of Power Cords
      6
    • Maximum Input Current
      16 A
    • Maximum Line Current
      16 A

    Physical

    • Maximum Height
      11.81 inches ( 300 , 30.0 CM )
    • Maximum Width
      3.15 inches ( 80 , 8.0 CM )
    • Maximum Depth
      2.76 inches ( 70 , 7.0 CM )
    • Net Weight
      4.75 lbs. ( 2.16 KG )
    • Shipping weight
      4.75 lbs. ( 2.16 KG )
    • Shipping Height
      11.81 inches ( 300 , 30.0 CM )
    • Shipping Width
      3.15 inches ( 80 , 8.0 CM )
    • Shipping Depth
      2.76 inches ( 70 , 7.0 CM )
    • Units per Pallet
      240.0

    Environmental

    • Operating Environment
      32 - 167 °F ( 0 - 75 °C )
    • Operating Relative Humidity
      20 - 80 %
    • Operating Elevation
      0-10000 ft ( 0-3000 meters )
    • Storage Temperature
      -25 - 75 °C
    • Storage Relative Humidity
      20 - 80 %
    • Storage Elevation
      0-50000 ft ( 0-15000 meters )

    Conformance

    • Approvals
      CCC, CSA, PSE, UL Listed, VDE
    • Standard warranty
      2 years repair or replace

    Sustainable Offer Status

    • RoHS
      Compliant
    • REACH
      REACH: Contains No SVHCs
    • PEP
      Available in Documentation tab
    • EOLI
      Available in Documentation tab
