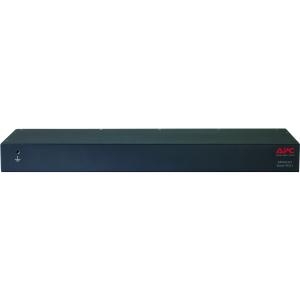

Apc - Schneider Rack Pdu Metered 1u 16a 208/230v (8) C13 Ap7821b
SKU: | 242515 |
---|---|
MPN: | AP7821B Link |
Manufacturer: | http://www.apc.com/ |
Brand: | Apc |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
Overview
The APC by Schneider Electric Metered Rack Power Distribution Unit (PDU) distributes power to
devices in the rack. It has a sensor that measures the current that the Rack PDU and its attached
devices use. It can be monitored through Web, Telnet, SNMP, SSH, or StruxureWare Data Center
Expert® interfaces.
Outlets: The Rack PDU has eight (8) IEC-C13 outlets.
Digital display: A digital display shows aggregate current being used per phase by the Rack
PDU.
Power cord: The 8 ft (2.5 m) power cord terminates with a IEC-20 connector
Specifications
General Information | |
---|---|
Brand Name: | APC by Schneider Electric |
Manufacturer Part Number: | AP7821B |
Manufacturer Website Address: | http://www.schneider-electric.com.au |
Manufacturer: | Schneider Electric SA |
Product Name: | Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13 |
Product Type: | PDU |
Interfaces/Ports | |
---|---|
Network (RJ-45): | Yes |
Management | |
---|---|
Management: |
|
Physical Characteristics | |
---|---|
Depth: | 102 mm |
Form Factor: | Rack-mountable |
Height: | 44 mm |
Rack Height: | 1U |
Weight (Approximate): | 1.74 kg |
Width: | 444 mm |
Power Description | |
---|---|
Input Current: | 20 A |
Input Voltage: | 230 V AC |
Output Voltage: | 230 V AC |
Technical Information | |
---|---|
Input Receptacles: | IEC 60320 C20 |
Output Receptacles: | 8 x IEC 60320 C13 |
Warranty | |
---|---|
Limited Warranty: | 2 Year |
