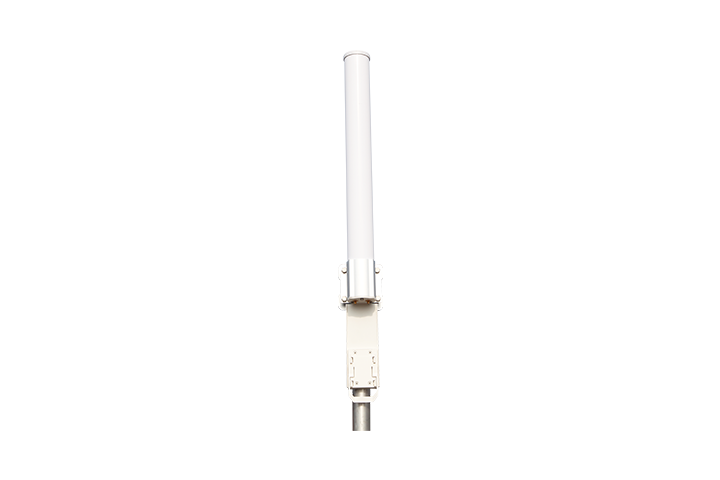

IP-COM (ANT12-5G360) 5GHz 12dBi Dual Polarity Omni Antenna
$197.00
| SKU: | 399993 |
|---|---|
| MPN: | ANT12-5G360 Link |
| Manufacturer: | https://www.ip-com.com.cn |
| Brand: | IP-COM |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
- Dual polarization design
- Two RP-SMA Radio Connector
- Operating frequency at 5100~5850MHz
- Mount pole Diameter 30-70mm
Specifications
▼
| Product Information | |
|---|---|
| Model | ANT12-5G360 |
| Deployment | Pole Mount |
| Application Scenarios | Pair with BS6 to deliver PtMP wireless connection for Privated ISP access or CCTV Surveillance |
| Eletrical Parameters | |
| Frequency Range | 5100~5850MHz |
| Gain | 11~12dBi |
| Polarization | Horizontal and Vertical |
| Horizontal Beamwidth (6dB) | 360° |
| Vertical Beamwidth (6dB) | 360° |
| Elevation Beamwidth | 6° |
| Front-To-Back Ratio | / |
| Isolation | 20dB |
| VSWR | <2 |
| Maximum Power | 20W |
| Impedance | 50Ω |
| Mechanical Parameters | |
| Dimensions | Φ70*870mm |
| Mounting | Pole (D30-70mm) |
| Mechanical tilt capability | / |
| Connector Type | 2*RP-SMA |
| Operating Temperature | -55°C to +70°C |
| Operating Humidity | 10%~90% non-condensing |
