Atdec Dual Monitor Desk Mount (Afs-At-Dc-B)

$278.00
SKU:295592
MPN:AFS-AT-DC-B Link
Manufacturer:https://www.atdec.com.au
Brand: Atdec
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate
New Page 1

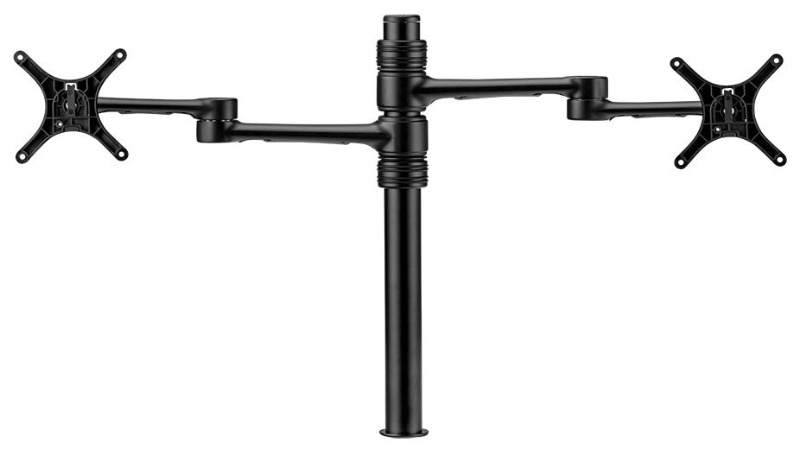

The AFS-AT-DC is designed to support two displays up to 8kg. This desk mount is featuring a 525mm pole with two articulated display arms. The arms can be independently set to the desired height to ensure perfect display alignment be it identical or different size monitors. Easy glare control and focal distance adjustments are possible thanks to three points of articulation on each arm, tilt and pan functions. The rotating function at the VESA head allows applications in either landscape or portrait orientation. The displays can be set in a back-to-back or side-by-side configuration (up to 27" monitors in a side-by-side landscape orientation). Generous cable management completes the sleek and professional look.

This solution consists of the following individual components:

1 x AF-AT single display desk mount and 1 x AF-AA accessory monitor arm.

Product specifications:

  • Flat screen monitors: maximum load up to 8kg per monitor
  • Curved screen monitors: maximum load up to 5.5kg per monitor
  • Optional 360° arm rotation (can be limited to 180°)
  • Supports mini PCs (AC-MP accessory sold separately)
  • Includes c-clamp and bolt through desk fixing options
  • 10-year warranty
  • Installation hardware included



Functionality specifications:

  • Ergonomic
  • Landscape to portrait rotation
  • Screen sharing capability
  • Engineered bearing joints for smooth movement
  • Quick-release display head with security screw
  • Glare control and optimal viewing angle adjustment via tilt and pan capabilities
  • Individual monitor height requirements settings



Additional design considerations:

  • Tool-less height adjustment
  • Advanced, integrated cable management for a clean look
  • Lightweight, durable, recyclable aluminium construction
  • Available in silver, black, or white
  • Sleek, supple design
New Page 1
Minimum display weight, kg 0
Flat screen: maximum supported weight, kg 8
Curved screen: maximum supported weight, kg 5.5
VESA mounting hole pattern, mm 75x75, 100x100
Maximum desk thickness allowed (mm) 76 (Desk Clamp); 40 (Bolt-through)
