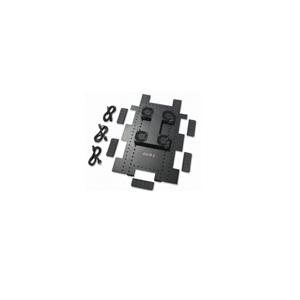

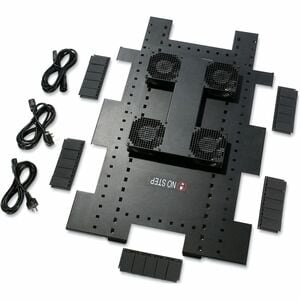

Netshelter Sx Roof Fan Tray 208-230 Vac ACF502
$975.00
| SKU: | 234175 |
|---|---|
| MPN: | ACF502 Link |
| Manufacturer: | http://www.schneider-electric.com.au |
| Brand: | Apc |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.
Specifications
▼
| Application/Usage | Cabinet |
| Product Type | Cooling Fan |
| Product Model | ACF502 |
| Brand Name | APC by Schneider Electric |
| Product Color | Black |
| Maximum Airflow | 186.89m³/h |
| Color Family | Black |
| Airflow Details | 4 x 110CFM |
| Manufacturer Part Number | ACF502 |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |
| Product Name | Netshelter SX Roof Fan Tray |
| Additional Information | • Nominal Input Voltage: 208V, 230V • Cord Length: 8 feet ( 2.40 meters) • Input Frequency: 50/60 Hz • Color: Black • Input Connections: • Schuko CEE 7/7P • British BS1363A • IEC-320 C14 • Features: • Grommeted Edges • Tool-less mounting • Cable pass-through • Ships fully assembled • Powder coat paint finish • Promotes Proper Airflow • Promotes Bottom to Top Airflow • Facilitates overhead cable management |
| Package Contents | • Netshelter SX Roof Fan Tray • Installation Guide • Grommets • 4 x Fans |
| Compatibility | APC NetShelter SX |
| Certifications & Standards | • PSE • VDE • UL 60950 • CSA C22.2 No. 60960 |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758486&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=758486&lang=en-us |
| REACH free of SVHC | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Weight (Approximate) | 8.41 kg |
| Height | 60 mm |
| Width | 574 mm |
| Depth | 893 mm |
| Fan Height | 59.94 mm |
| Fan Width | 574.29 mm |
| Fan Depth | 892.56 mm |
| Fan Material | Plastic |
| Input Voltage | 230 V AC, 208 V AC |
| Shipping Dimensions | Height 16, Width 78, Length 101, Shipping Weight 12.57 KG |
