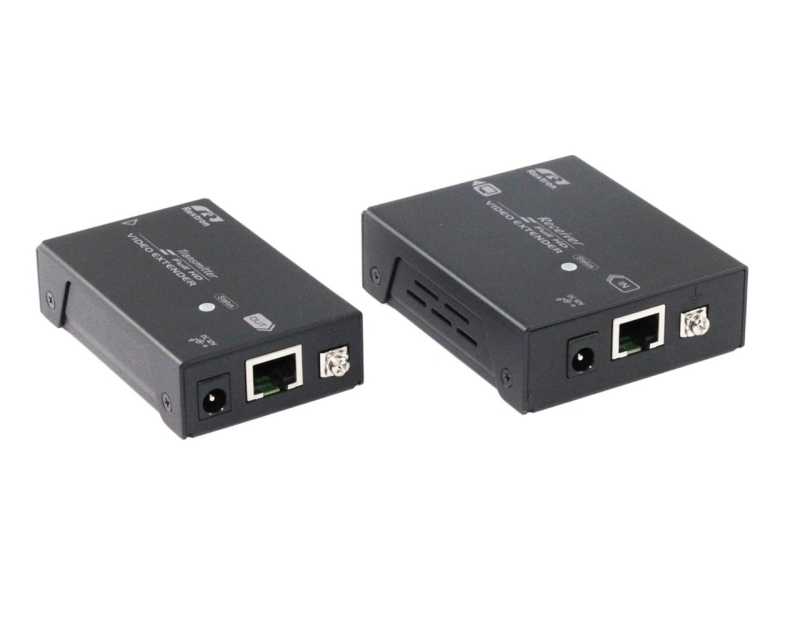

REXTRON 35M HDMI 4K Extender Over CAT 6 (HDBaseT) ACBAUSREX354KCAT6

$328.00
SKU:294489
MPN:ACBAUSREX354KCAT6
Manufacturer:https://www.rextron.com/
Brand: REXTRON
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate
Untitled 1
4KX 2K HDMI EXTENDER OVER CAT 5 (HDBASET)

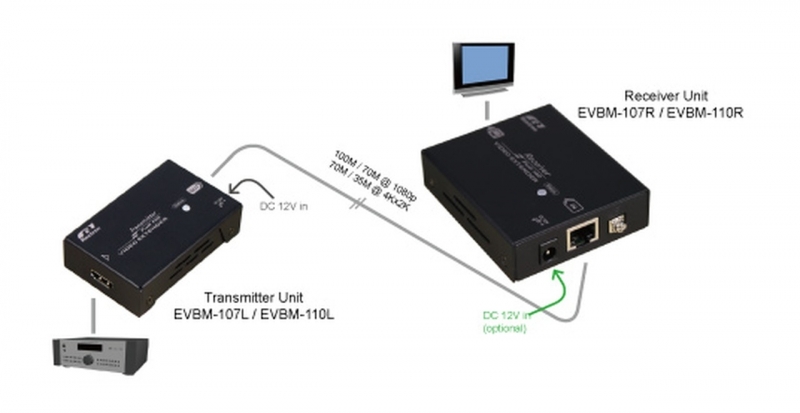

Rextron 3D HDMI Extender transmits full uncompressed 3D HD video and audio over CAT5e / 6 cable of up to 100/70 meters. It not only supports resolution up to Full HD 1080p and 2048 x 1152, but supports Deep Color, HD Audio formats and Audio Return channel as well.

Moreover, the Phantom Power function supports single power supply at either one end of two units (Tx & Rx) which can cut down the need of additional power adapter.

The advanced and inexpensive all-in-one connectivity technology by using low-cost and handy CAT5e / 6 cables, Rextron 3D HDMI Extender is perfect for situations like hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking, and point-to-point consumer applications.

Features

● Send HDMI signal to multimedia display over CAT5e/6 cable
● Transmit full uncompressed HD video and audio over cable
● Low cost standard CAT5e/6 cable
● HDTV, 3D HDTV compatible
● HDCP compliant and Blu-ray ready
● Support Phantom Power -- single power supply at either one end of two units (Tx & Rx)
● HDMI up to 10.2Gps, including support for 1080p 60 / 120, Deep Color, HD-3D, 4Kx2K video, HD Audio Formats and Audio Return Channel
● Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA …Full HD, WUXGA, UHD system
● Ideal for hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking and point-to-point consumer applications
● Compact size. easy to set up; simple to install

Untitled 1

Specification



EVBM-M107
Transmitter Unit
Receiver Unit
EVBM-107L
EVBM-107R
Input → Output
HDMI x 1 → RJ-45 x 1
RJ-45 x 1 → HDMI x 1
LED (Link / Video status)
x 1 (Dual Color)
x 1 (Dual Color)
Video Resolution (max.) 70M (Full HD 1920 x 1080)
35M (UHD 3840 x 2160)
Extension Distance
Power Supply
DC 12V (Phantom Power)
Enclosure
Metal
Weight (gram)
145~155
H x W x D (mm)
22 x 52 x 80
