Brand	VOX
Model	AC10 (includes AC10 Hand-Wired and AC10C1 variants)
Notes	Sources describe two distinct AC10 variants (Hand‑Wired 1x12 and AC10C1 1x10). Specifications that differ between variants are provided per-variant. No pricing, availability, seller-specific warranty, or seller tracking information is included.
Power	10 watt
Cabinet	AC10C1: Thin-panel cabinet (material not explicitly specified) Hand-Wired: 9 mm birch ply (vintage-accurate)
Category	Audio Visuals
Controls	AC10C1: Gain, Bass, Treble, Reverb, Master Volume Common: Top Boost-style voicing; master volume; tone controls vary by variant Hand-Wired: Treble, Bass, Volume (Top Boost), bypass-able master volume, Reverb Level
Variants	{ "Model": "AC10 Hand-Wired", "Power": "10 watt", "Tubes": "ECC83 / 12AX7 x2 (preamp), EL84 x2 (power)", "Reverb": "FET-driven spring reverb with dedicated output transformer", "Weight": "33.16 lbs", "Controls": "Top Boost channel — Treble, Bass, Volume; bypass-able master volume; reverb level", "Construction": "Hand-wired turret-board wiring; custom-wound output transformer; vintage-accurate components and circuit behavior", "Effects Loop": "FET-buffered effects loop, transparent and bypass-able", "Cabinet Material": "9 mm birch ply (vintage-accurate, thin cabinet for resonance)", "Speaker Impedance": "116 Ω (as reported)", "Notable Highlights": [ "Hand-wired, vintage-accurate recreation of 1960s AC10 circuitry", "Custom transformers and circuit design to recreate voltage sag and tonal characteristics", "Designed for stage and studio use with modern refinements" ], "Included Accessories": "Footswitch for reverb bypass (reported)", "Speaker Configuration": "1 x 12\" Celestion G12M Greenback", "Dimensions (W x D x H)": "20.87 x 9.57 x 18.66 in", "Manufacturer Part Number": "AC10HWR1" } { "Model": "AC10C1", "Power": "10 watt RMS", "Tubes": "Power: EL84 x2; Preamp: reported as 2 × 12AX7 (one source) and 3 × 12AX7 (another source)", "Reverb": "Studio-quality reverb (described as digital reverb in one source)", "Weight": "12.3 kg (≈27.12 lbs)", "Controls": "Gain, Bass, Treble, Reverb, Master Volume (simple 2-band EQ configuration); Top Boost circuitry referenced", "Construction": "Compact/thinner cabinet for improved harmonic content and portability", "Effects Loop": "Not reported", "Cabinet Material": "Thin-panel construction (exact material not specified in sources)", "Notable Highlights": [ "Smaller, highly portable AC10 combo variant suitable for practice, recording and small gigs", "Simplified control layout for straightforward tone shaping" ], "Included Accessories": null, "Speaker Configuration": "1 x 10\" Celestion VX10 (reported)", "Dimensions (W x D x H)": "520 x 210 x 410 mm (≈20.47 x 8.27 x 16.14 in)", "Manufacturer Part Number": null }
Description	The VOX AC10 is a 10-watt tube guitar combo that recreates the classic 1960s VOX Top Boost voice in compact, stage- and studio-ready packages. Two main variants appear in the sources: the AC10 Hand‑Wired (1x12") — a meticulous re-creation with turret-board hand wiring, custom-wound transformers, FET-driven spring reverb, and an FET-buffered, bypass-able effects loop — and the AC10C1 (1x10") — a simpler, more portable 10" speaker model with master volume, gain, 2‑band EQ and studio-quality reverb. Both variants use EL84 power tubes and 12AX7 (ECC83) preamp tubes in configurations reported by their respective sources, offer the signature VOX chime and touch sensitivity at manageable volume levels, and employ relatively thin cabinets to enhance resonance and harmonic content.
Sub-Category	Digital Audio Video Devices
Product Title	VOX AC10 10W Tube Guitar Amplifier (Hand-Wired & AC10C1 Variants)
Tubes (general)	Power: EL84 x2; Preamp: 12AX7 / ECC83 (configuration varies by variant — see Variants)
Features (general)	Classic VOX Top Boost voicing Tube-driven tone with touch sensitivity and harmonic complexity Master volume for cranked-tube sound at lower output Compact combo design suitable for home, studio and small venues

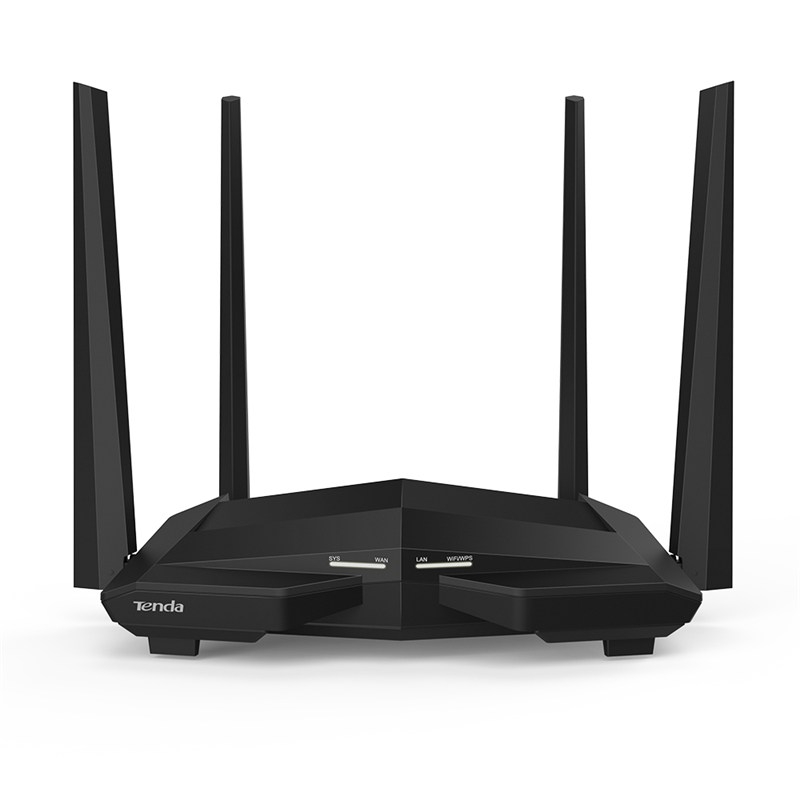

Tenda TENDA (AC10) C1200 Dual-band Gigabit Wi-Fi router is a supplier-matched product available from Spot IT. Use this item for compatible business, office, and IT requirements. Manufacturer part number: TD84003. Order online for Australia-wide delivery with local support.
