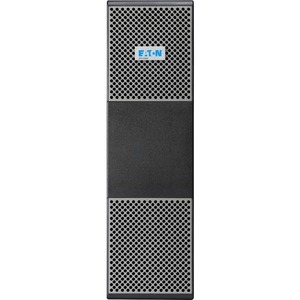

Eaton 9PX 2000VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included) 9PX2000iRTAU
Special Price $3,528.00 Regular Price $4,058.00
| SKU: | 221700 |
|---|---|
| MPN: | 9PX2000iRTAU Link |
| Manufacturer: | https://www.eaton.com |
| Brand: | Eaton |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Eaton 9PX 2000VA Rack/Tower, 10Amp Input, 230V (Rail Kit Included)
Specifications
▼
| SKU | 9PX2000iRTAU |
|---|---|
| Brand | Eaton |
| Model | 9PX2000iRTAU |
| Power_W | 1800 W |
| Category | Power and Rack Equipment |
| Warranty | 3 years |
| Efficiency | Up to 93% (online mode); up to 98% (Hi-efficiency mode) |
| Technology | Online double-conversion with Power Factor Correction (PFC) |
| Capacity_VA | 2000 VA |
| Description | The Eaton 9PX2000iRTAU is a 2000 VA / 1800 W online double-conversion UPS with a 0.9 power factor, designed for rack or tower deployments (RT2U). Energy Star qualified and offering high efficiency (up to 93% online, up to 98% in Hi-efficiency mode), the 9PX provides regulated voltage and frequency, advanced battery management, and scalable runtime via up to four hot-swappable external battery modules (EBMs). It includes a graphical LCD, load segment control, kWh metering, internal bypass for service continuity, USB/RS232 connectivity plus an expansion slot for network or relay cards — making it suitable for servers, storage, networking equipment and enterprise infrastructure. |
| Form_Factor | Rack/Tower convertible (RT2U); pedestal and rail kits included |
| Noise_Level | Approximately 40 dB |
| Applications | Servers Switches Routers Storage devices Corporate & Enterprise infrastructure Security & CCTV |
| Power_Factor | 0.9 |
| Sub-Category | Power Equipment |
| EMC_Standards | IEC/EN 62040-2 FCC Class B CISPR22 Class B |
| Product Title | Eaton 9PX 2000VA / 1800W Rack/Tower UPS (9PX2000iRTAU) |
| Expansion_Slot | 1 slot (compatible with Network-MS, ModBus-MS or Relay-MS cards) |
| Internal_Bypass | Yes (service continuity for internal fault/service) |
| Nominal_Voltage | 200 / 208 / 220 / 230 / 240 V |
| Input_Connection | 1 × IEC C14 (10 A) |
| Safety_Standards | IEC/EN 62040-1 UL 1778 CSA 22.2 |
| Battery_Management | Eaton ABM battery management; temperature-compensated charging (user selectable); automatic battery test; deep-discharge protection; automatic recognition of external battery units |
| Hot_Swappable_EBMs | Yes |
| Output_Connections | 4 × IEC C13 (10 A); 2 × Australian GPO (10 A) |
| Communication_Ports | 1 × USB, 1 × RS232, mini-terminal blocks for Remote ON/OFF, Remote Power Off and Output Relay |
| Input_Voltage_Range | 176-276 V (up to 100-276 V with derating) |
| Dimensions_mm_Weight | EBM_2U: { "Depth_mm": 605, "Width_mm": 440, "Height_mm": 86.5, "Weight_kg": 39.2 } UPS_2U: { "Depth_mm": 605, "Width_mm": 440, "Height_mm": 86.5, "Weight_kg": 27.4 } |
| Input_Frequency_Range | 40-70 Hz; 50/60 Hz auto-selection; frequency converter mode |
| Operating_Temperature | 0-40 °C |
| Approvals_and_Markings | CE CB report (TUV) cULus EAC RCM KC Energy Star |
| Manageability_Features | Graphical LCD, kWh energy metering, load segment control, Eaton Intelligent Power Software compatibility |
| Switched_Outlet_Groups | 2 (switched outlets include 2 × IEC C13 and 2 × AUS GPO) |
| Typical_Backup_Times_minutes | UPS_only: 23 / 12 / 4 UPS_plus_1_EBM: 114 / 65 / 29 UPS_plus_4_EBM: 453 / 261 / 118 |
| External_Battery_Modules_Supported | Up to 4 hot-swappable EBMs |
