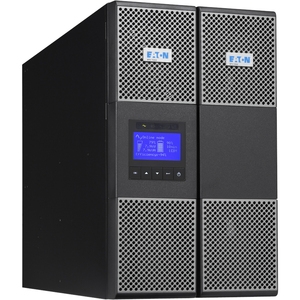

    main product photo

    Eaton Powerware 9PX 11kVA 1:1 Power Module (no Internal Batteries,Rack Kit Not Included) 9PX11KiPM

    $9,569.00
    SKU:228478
    MPN:9PX11KiPM Link
    Manufacturer:https://www.eaton.com
    Brand: Eaton
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare
    The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
    UPC743172039378
    BrandEaton
    ColorBlack/silver
    InputConnection: Hardwired / terminal block (up to 16 mm²) Phase (Input): Single Nominal Voltage: 230 V (default) — configurable: 200/208/220/230/240/250 V Nominal Frequency: 50/60 Hz Input Power Factor: >0.99 Input Voltage Range: 176-276 V (100-276 V with derating) Input Frequency Range: 40-70 Hz Input Voltage Min/Max: 100 V min / 276 V max
    Model9PX11KIPM
    NotesDelivered without internal batteries. External battery runtime varies with configuration, battery age and temperature. For installations requiring more than 6 EBMs, a supercharger is required.
    OutputFeed Type: 1 Connection: Hardwired / terminal block Phase (Output): Single Nominal Voltage: 230 V (default) — configurable: 200/208/220/230/240/250 V Output Waveform: Pure sine wave Output Frequency: 50/60 Hz Output Power Factor: 0.9 Output Voltage Range: ±1% over selectable nominal voltages (200/208/220/230/240/250 V) Output Voltage Min/Max: 200 V min / 250 V max Voltage Distortion (linear load): ≤ 2%
    Weight21 kg
    BatteryInternal Battery: None (no internal batteries) Battery Management: ABM® & temperature-compensated charging (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units Max External Battery Packs: Up to 12 EBMs (supercharger required for more than 6) Extended Battery Capability: Yes — supports external battery modules (EBMs) Hot-swappable External EBMs: Supported
    Wattage10 kW
    CategoryPower and Rack Equipment
    TopologyOnline / Double-conversion
    Warranty2 year
    Rack Size3U
    VA Rating11 kVA
    DescriptionEaton 9PX11KIPM is a 11 kVA / 10 kW online double-conversion UPS power module designed for rack or tower installation (3U). It provides a 0.9 output power factor and pure sine-wave output with high efficiency (up to 95% online, up to 98% in eco-mode). The unit is delivered without internal batteries and supports external hot-swappable battery modules (up to 12 EBMs, supercharger required for more than 6). Standard communications include USB (HID), RS232, dry contacts (DB9), mini terminal blocks for remote ON/OFF and remote power off, and a DB15 port for parallel operation; one slot is available for an optional communications card. A multilingual graphical LCD provides status and measurements, and Eaton Intelligent Power management software is supported. Hardwired input and output connections (terminal block) and an internal bypass ensure service continuity during maintenance.
    Form FactorRack/tower convertible (3U)
    Sub-CategoryPower Equipment
    EnvironmentalNoise Level: < 50 dB at 1 m Maximum Altitude: 3000 m Relative Humidity: 0-95% non-condensing Operating Temperature: 0° to 40°C (32° to 104°F)
    Product TitleEaton 9PX11KIPM 11 kVA / 10 kW 230V Online UPS Power Module (3U Rack/Tower, No Internal Batteries)
    Catalog Number9PX11KIPM
    Hot Swap PowerNo
    Package ContentsPower Module (UPS) USB cable Serial cable (2) Supports for tower mounting Safety instructions Quickstart guide
    Construction TypeFree standing / rack-mountable
    Safety & FeaturesInternal bypass for service continuity Automatic shutdown function Meter energy consumption at UPS level Constant voltage and frequency regulation Provides more real power with 0.9 power factor
    Dimensions (H x W x D)440 mm x 130 mm x 700 mm (44 cm x 13 cm x 70 cm)
    Performance & EfficiencyOverload Capacity: 102-110%: 120s; 110-125%: 60s; 125-150%: 10s; >150%: 500 ms BTU Rating (online): 2047 Short Circuit Current: 150 A Power Consumption (nominal): 600 W Efficiency (typical / online): 95% (online) Efficiency (eco / hi-efficiency mode): 98%
    Rack Mounting Kit IncludedNo
    Certifications & ComplianceIEC/EN 62040-1 IEC/EN 62040-2 UL 1778 CE cULus Listed CSA 22.2 TUV EAC FCC Class A (per manufacturer listing)
    Communications & ManagementPorts: USB (HID), RS232 (serial), DB9 dry contacts (4 outputs, relay), mini terminal block for remote ON/OFF, mini terminal block for remote power off, DB15 for parallel operation Expansion Slot: One slot for optional communications card (e.g., Network-M2, INDGW-M2, Relay-MS) User Interface: Multilingual graphical LCD display Includes Network Card: No Software Compatibility: Eaton Intelligent Power Manager; Eaton Intelligent Power Protector Potential Free Switch Contact: Yes
    Runtime (example with external EBMs, load 5088 W)Standard (no EBMs): 0 With 1 EBM (minutes): 8.8 With 2 EBMs (minutes): 21.6 With 3 EBMs (minutes): 35.4 With 4 EBMs (minutes): 51.1 With 5 EBMs (minutes): 67.8 With 6 EBMs (minutes): 84.5 With 7 EBMs (minutes): 102.2 With 8 EBMs (minutes): 120.8 With 9 EBMs (minutes): 139.4 With 10 EBMs (minutes): 159.1 With 11 EBMs (minutes): 178.7 With 12 EBMs (minutes): 198.5
    EATON Powerware 9PX 11kVA 1:1 Power Module (no internal batteries,Rack Kit not included)
