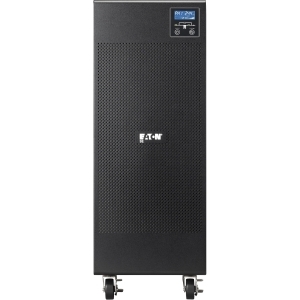

    Eaton 9e 10kva/ 8kw Online Tower Ups Hw 9e10ki

    $6,326.00
    SKU:232996
    MPN:9E10Ki Link
    Manufacturer:http://powerquality.eaton.com
    Brand: Eaton
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    E10Ki

    　
    Eaton 9E 10kVA 1:1 and 3:1

    General
    Topology Online double conversion
    Configuration Tower
    Part Number 9E10Ki
    Rating (VA/Watts) 10000/8000
    Dimensions (H x W x D, mm) 708.5 x 262.4 x 612.9
    Weight (kg) 85.4
    Warranty 1 year

    Electrical Input
    Connection
    Hardwired - see manual for terminal block layout
    Hardwired - example layout only
    Input Voltage Range 176-276V without derating (up to 110-276V with derating)
    Nominal Voltage 220/230/240V
    Frequency 50/60 Hz autoselection
    Frequency Range 45-66 Hz
    Short Circuit Current 137 A

    Electrical Output
    Voltages 220V/230V/240V ±2 %
    Voltage THD <3%
    Outlets
    Hardwired - see manual for terminal block layout
    Hardwired - example layout only
    Overload Capacity 105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, >150% : 100ms
    Efficiency (Normal Mode) Up to 93% in Online mode, 97% in ECO mode
    Output Frequency 50/60 Hz autoselect

    Communications
    Communication Ports 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
    Communication Slot 1 slot for Network-MS, ModBus-MS or Relay-MS cards
    Power Management Software Intelligent Power Software

    Environmental & Standards
    Audible Noise <55dB
    Operating Temperature 0 to 40°C
    Safety markings IEC/EN 62040-1
    EMC Markings IEC/EN 62040 -2
    Approvals CE, CB report (TUV)
    Basic
    Brand Name: Eaton
    Form Factor: Tower
    Load Capacity (VA): 10000 VA
    Load Capacity (Watt): 8000 W
    Product Type: Dual Conversion Online UPS
    Receptacles: Hardwired
    General Information
    Brand Name: Eaton
    Manufacturer Part Number: 9E10KI
    Manufacturer Website Address: http://www.eatoncorp.com.au
    Manufacturer: Eaton Corporation
    Product Name: 10000VA Tower UPS
    Product Type: Dual Conversion Online UPS
    Physical Characteristics
    Depth: 612.9 mm
    Form Factor: Tower
    Height: 708.5 mm
    Weight (Approximate): 85.40 kg
    Width: 262.4 mm
    Power Description
    Input Voltage: 220 V AC
    　 230 V AC
    　 240 V AC
    Load Capacity (VA): 10000 VA
    Load Capacity (Watt): 8000 W
    Output Voltage: 220 V AC
    　 230 V AC
    　 240 V AC
    Technical Information
    Receptacles: Hardwired
    9E 10KVA/8kW Online Tower UPS HW
