Logitech CC3500e ConferenceCam 960-001054
Special Price $1,814.00 Regular Price $2,086.00
| SKU: | 227823 |
|---|---|
| MPN: | 960-001054 Link |
| Manufacturer: | https://www.logitech.com |
| Brand: | Logitech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼

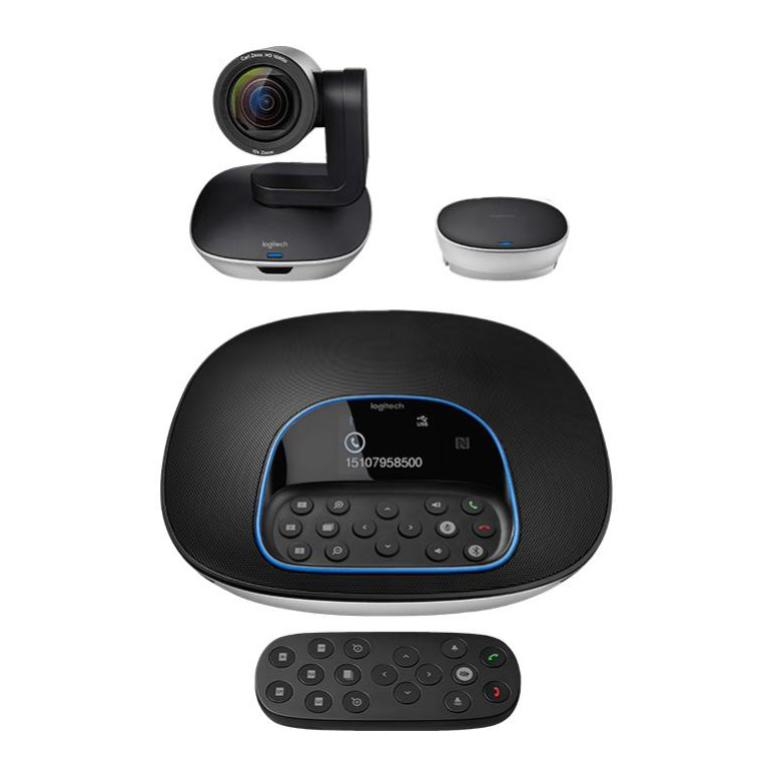

Logitech CC3500e ConferenceCam GROUP FHD Video Conferencing System for mid to large-sized meeting rooms. [960-001054] - Limited stock
Logitech CC3500e ConferenceCam GROUP FHD Video Conferencing System - Smooth motorized pan with tilt and 10x lossless HD zoom - 90-degree Field of View - Full HD 1080p 30fps - Far-end control (PTZ) of ConferenceCam product - Full-duplex, ultra-wideband speakerphone performance with acoustic echo cancellation and noise reduction technology - 960-001054 - 2 Years Limited Warranty
GROUP the video conferencing solution for rooms that seat 14-20 people, delivers high quality HD video and crystal clear audioUSB plug-and-play connectivity makes GROUP a breeze to deploy and use.Customise the setup to match the layout and size of your room. Mount the camera on a table, tripod, or wall.Bring meetings into focus with GROUP's premium lens, 10x lossless zoom, and HD 1080p/30 performance.Hear and be heard with life-like clarity. GROUP's full-duplex speakerphone provides 360 coverage with four omnidirectional mics.GROUP's speakerphone provides a convenient dock for the handheld remote control, and features an LCD status screen and tactile buttons to mute audio, adjust volume, move the camera, and more.Extend the range of the GROUP video conferencing system with Logitech GROUP Expansion Mics.With tactile mute buttons on the speakerphone, handheld remote, and optional expansion mics, GROUP makes it easy to assure your privacy.When muted, GROUP's LED status ring lights up red, a subtle yet obvious assurance thatĀ’s easily seen throughout the room.With regular firmware updates, Logitech continuously improves the GROUP video conferencing experience.CameraSmooth motorized pan, tilt and zoom controlled from remote or consolePan +/- 90°Tilt +35° / -4510x lossless HD zoomField of ViewDiagonal: 90°Horizontal: 82.1°Vertical: 52.2°Full HD 1080p 30fpsH.264 UVC 1.5 with Scalable Video Coding (SVC)Autofocus5 camera presetsFar-end control (PTZ) of ConferenceCam product (with supported services)Kensington security slotVideo mute/unmute LED indicatorStandard tripod threadRemote ControlCamera, speakerphone, and call control5 camera presetsDocks on speakerphoneIR 8.5 m rangeCR2032 battery (included)SPEAKERPHONEFull-duplex performanceAcoustic echo cancellationNoise reduction technologyUltra-wideband audioPairs with mobile devices via Bluetooth and NFCLCD for caller ID, call duration and other functional responseLEDs for speakerphone streaming, mute, hold, and BluetoothTactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls5 camera presets for pan, tilt, and zoom settingsKensington security slotMicrophonesPickup Range: 6 mPickup range with expansion mics: 8.5 mFour omnidirectional, beamforming microphonesFrequency Response: 100Hz – 11KHzSensitivity: -28 dB +/-3dBDistortion: <5% from 200HzHUB / CABLES / POWERCentral Hub connects and powers all componentsUnder-table mounting adhesive includedOne cable to camera: 5 mOne cable to speakerphone: 5 mExtended cables available: 10 and 15 mOne USB cable for connection to PC/Mac: 2 mAC Power adapter with regional plugsPower cable: 3 mMOUNTDual-purpose bracket works for both wall mounting and tabletop elevationCOMPATIBILITY AND CERTIFICATIONSPlug-and-play USB connectivityCertified for Skype for Business and Microsoft TeamsZoom CertifiedFuze® CertifiedMicrosoft CortanaCisco Jabber®Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
GROUP the video conferencing solution for rooms that seat 14-20 people, delivers high quality HD video and crystal clear audio
USB plug-and-play connectivity makes GROUP a breeze to deploy and use.
Customise the setup to match the layout and size of your room. Mount the camera on a table, tripod, or wall.
Bring meetings into focus with GROUP's premium lens, 10x lossless zoom, and HD 1080p/30 performance.
Hear and be heard with life-like clarity. GROUP's full-duplex speakerphone provides 360 coverage with four omnidirectional mics.
GROUP's speakerphone provides a convenient dock for the handheld remote control, and features an LCD status screen and tactile buttons to mute audio, adjust volume, move the camera, and more.
Extend the range of the GROUP video conferencing system with Logitech GROUP Expansion Mics.
With tactile mute buttons on the speakerphone, handheld remote, and optional expansion mics, GROUP makes it easy to assure your privacy.
When muted, GROUP's LED status ring lights up red, a subtle yet obvious assurance thatĀ’s easily seen throughout the room.
With regular firmware updates, Logitech continuously improves the GROUP video conferencing experience.
Camera
Smooth motorized pan, tilt and zoom controlled from remote or console
Pan +/- 90°
Tilt +35° / -45
10x lossless HD zoom
Field of View
Diagonal: 90°
Horizontal: 82.1°
Vertical: 52.2°
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus
5 camera presets
Far-end control (PTZ) of ConferenceCam product (with supported services)
Kensington security slot
Video mute/unmute LED indicator
Standard tripod thread
Remote Control
Camera, speakerphone, and call control
5 camera presets
Docks on speakerphone
IR 8.5 m range
CR2032 battery (included)
SPEAKERPHONE
Full-duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Pairs with mobile devices via Bluetooth and NFC
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mute, hold, and Bluetooth
Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
5 camera presets for pan, tilt, and zoom settings
Kensington security slot
Microphones
Pickup Range: 6 m
Pickup range with expansion mics: 8.5 m
Four omnidirectional, beamforming microphones
Frequency Response: 100Hz – 11KHz
Sensitivity: -28 dB +/-3dB
Distortion: <5% from 200Hz
HUB / CABLES / POWER
Central Hub connects and powers all components
Under-table mounting adhesive included
One cable to camera: 5 m
One cable to speakerphone: 5 m
Extended cables available: 10 and 15 m
One USB cable for connection to PC/Mac: 2 m
AC Power adapter with regional plugs
Power cable: 3 m
MOUNT
Dual-purpose bracket works for both wall mounting and tabletop elevation
COMPATIBILITY AND CERTIFICATIONS
Plug-and-play USB connectivity
Certified for Skype for Business and Microsoft Teams
Zoom Certified
Fuze® Certified
Microsoft Cortana
Cisco Jabber®
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
Logitech CC3500e ConferenceCam GROUP FHD Video Conferencing System - Smooth motorized pan with tilt and 10x lossless HD zoom - 90-degree Field of View - Full HD 1080p 30fps - Far-end control (PTZ) of ConferenceCam product - Full-duplex, ultra-wideband speakerphone performance with acoustic echo cancellation and noise reduction technology - 960-001054 - 2 Years Limited Warranty
GROUP the video conferencing solution for rooms that seat 14-20 people, delivers high quality HD video and crystal clear audioUSB plug-and-play connectivity makes GROUP a breeze to deploy and use.Customise the setup to match the layout and size of your room. Mount the camera on a table, tripod, or wall.Bring meetings into focus with GROUP's premium lens, 10x lossless zoom, and HD 1080p/30 performance.Hear and be heard with life-like clarity. GROUP's full-duplex speakerphone provides 360 coverage with four omnidirectional mics.GROUP's speakerphone provides a convenient dock for the handheld remote control, and features an LCD status screen and tactile buttons to mute audio, adjust volume, move the camera, and more.Extend the range of the GROUP video conferencing system with Logitech GROUP Expansion Mics.With tactile mute buttons on the speakerphone, handheld remote, and optional expansion mics, GROUP makes it easy to assure your privacy.When muted, GROUP's LED status ring lights up red, a subtle yet obvious assurance thatĀ’s easily seen throughout the room.With regular firmware updates, Logitech continuously improves the GROUP video conferencing experience.CameraSmooth motorized pan, tilt and zoom controlled from remote or consolePan +/- 90°Tilt +35° / -4510x lossless HD zoomField of ViewDiagonal: 90°Horizontal: 82.1°Vertical: 52.2°Full HD 1080p 30fpsH.264 UVC 1.5 with Scalable Video Coding (SVC)Autofocus5 camera presetsFar-end control (PTZ) of ConferenceCam product (with supported services)Kensington security slotVideo mute/unmute LED indicatorStandard tripod threadRemote ControlCamera, speakerphone, and call control5 camera presetsDocks on speakerphoneIR 8.5 m rangeCR2032 battery (included)SPEAKERPHONEFull-duplex performanceAcoustic echo cancellationNoise reduction technologyUltra-wideband audioPairs with mobile devices via Bluetooth and NFCLCD for caller ID, call duration and other functional responseLEDs for speakerphone streaming, mute, hold, and BluetoothTactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls5 camera presets for pan, tilt, and zoom settingsKensington security slotMicrophonesPickup Range: 6 mPickup range with expansion mics: 8.5 mFour omnidirectional, beamforming microphonesFrequency Response: 100Hz – 11KHzSensitivity: -28 dB +/-3dBDistortion: <5% from 200HzHUB / CABLES / POWERCentral Hub connects and powers all componentsUnder-table mounting adhesive includedOne cable to camera: 5 mOne cable to speakerphone: 5 mExtended cables available: 10 and 15 mOne USB cable for connection to PC/Mac: 2 mAC Power adapter with regional plugsPower cable: 3 mMOUNTDual-purpose bracket works for both wall mounting and tabletop elevationCOMPATIBILITY AND CERTIFICATIONSPlug-and-play USB connectivityCertified for Skype for Business and Microsoft TeamsZoom CertifiedFuze® CertifiedMicrosoft CortanaCisco Jabber®Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
GROUP the video conferencing solution for rooms that seat 14-20 people, delivers high quality HD video and crystal clear audio
USB plug-and-play connectivity makes GROUP a breeze to deploy and use.
Customise the setup to match the layout and size of your room. Mount the camera on a table, tripod, or wall.
Bring meetings into focus with GROUP's premium lens, 10x lossless zoom, and HD 1080p/30 performance.
Hear and be heard with life-like clarity. GROUP's full-duplex speakerphone provides 360 coverage with four omnidirectional mics.
GROUP's speakerphone provides a convenient dock for the handheld remote control, and features an LCD status screen and tactile buttons to mute audio, adjust volume, move the camera, and more.
Extend the range of the GROUP video conferencing system with Logitech GROUP Expansion Mics.
With tactile mute buttons on the speakerphone, handheld remote, and optional expansion mics, GROUP makes it easy to assure your privacy.
When muted, GROUP's LED status ring lights up red, a subtle yet obvious assurance thatĀ’s easily seen throughout the room.
With regular firmware updates, Logitech continuously improves the GROUP video conferencing experience.
Camera
Smooth motorized pan, tilt and zoom controlled from remote or console
Pan +/- 90°
Tilt +35° / -45
10x lossless HD zoom
Field of View
Diagonal: 90°
Horizontal: 82.1°
Vertical: 52.2°
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus
5 camera presets
Far-end control (PTZ) of ConferenceCam product (with supported services)
Kensington security slot
Video mute/unmute LED indicator
Standard tripod thread
Remote Control
Camera, speakerphone, and call control
5 camera presets
Docks on speakerphone
IR 8.5 m range
CR2032 battery (included)
SPEAKERPHONE
Full-duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Pairs with mobile devices via Bluetooth and NFC
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mute, hold, and Bluetooth
Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
5 camera presets for pan, tilt, and zoom settings
Kensington security slot
Microphones
Pickup Range: 6 m
Pickup range with expansion mics: 8.5 m
Four omnidirectional, beamforming microphones
Frequency Response: 100Hz – 11KHz
Sensitivity: -28 dB +/-3dB
Distortion: <5% from 200Hz
HUB / CABLES / POWER
Central Hub connects and powers all components
Under-table mounting adhesive included
One cable to camera: 5 m
One cable to speakerphone: 5 m
Extended cables available: 10 and 15 m
One USB cable for connection to PC/Mac: 2 m
AC Power adapter with regional plugs
Power cable: 3 m
MOUNT
Dual-purpose bracket works for both wall mounting and tabletop elevation
COMPATIBILITY AND CERTIFICATIONS
Plug-and-play USB connectivity
Certified for Skype for Business and Microsoft Teams
Zoom Certified
Fuze® Certified
Microsoft Cortana
Cisco Jabber®
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
Specifications
▼
SPECS & DETAILS
Dimensions
- Camera:
- Height x Width x Depth: 130 mm x 170 mm x 138 mm
Weight: 585 g
Speakerphone: - Height x Width x Depth: 240 mm x 65 mm x 240 mm
Weight: 1223 g
Hub: - Height x Width x Depth: 94 mm x 34 mm x 74 mm
Weight: 83 g
Remote: - Height x Width x Depth: 50 mm x 120 mm x 12 mm
Weight: 51 g
Wall/Table Mount: - Height x Width x Depth: 210 mm x 120 mm x 99 mm
Weight: 255 g
Expansion Mics: - Height x Width x Depth: 83 mm x 83 mm x 21 mm
Weight: 230 g
System Requirements
-
Windows® 7, 8.1 or 10
Mac® OS X 10.7 or higher
Technical Specifications
Camera:
- Smooth motorized pan
- Tilt and zoom
- Controlled from remote or console 260°pan
- 130-degree tilt
- 10x lossless HD zoom
- 90-degree field of view
- Full HD 1080p 30fps
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Autofocus 5 camera presets
- Far-end control (PTZ) of ConferenceCam product
- ZEISS lens certification
- Kensington security slot
- LED to confirm video streaming
- Standard tripod thread
Remote control:
- Dockable 8.5 m/28-foot range
Speakerphone:
- Full-duplex performance
- Acoustic echo cancellation
- Noise reduction technology
- Ultra-wideband audio
- Bluetooth and NFC enabled
- LCD for caller ID, call duration and other functional response
- LEDs for speakerphone streaming, mute, hold, and Bluetooth
- Touch controls for call answer/end, volume and mute, Bluetooth – plus camera
- PTZ, “home” preset and far-end control
- Microphones (Tx)
- Four omni-directional microphones supporting 6 m/20-foot diameter range
- Frequency response: 100Hz – 11KHz
- Sensitivity: -28dB +/-3dB
- Distortion: <5% from 200Hz
- Kensington security slot
Hub / Cable:
- Central mountable hub for connection of all components
- Included adhesive solution for under-table mounting
- Two cables for connection between hub and camera/ speakerphone (Length: 5m/16 ft)
- One USB cable for connection to PC/Mac (Length: 2 m/6.6 ft)
- AC Power adapter (Length: 3 m/9.8 ft)
Mount:
Dual purpose mount for wall placement or for elevating camera on table
Compliance and tools:
- USB 2.0 compliant
- UVC-compliant video and audio for broad application compatibility
- Skype for Busines certified, Microsoft® Lync®, Cisco Jabber® and WebEx® compatible
- Enhanced integration with Logitech Collaboration Program (LCP) members
- Downloadable diagnostic tool
- Field upgradeable firmware tool
- Downloadable app plug-ins for advanced feature support
Package Contents
- Camera
Speakerphone
Remote control
Two 5m/16.4’ cables for connection between speakerphone and hub and camera and hub
One 3m/9.8’ meter cable between hub and PC
Velcro for cable management
Velcro for hub to table securing
Powered hub
Power adapter with regional plugs
Mount
Quick start guide
Warranty card
Warranty Information
2-Year Limited Hardware Warranty
Part Number
GROUP
- PN 960-001054
GROUP + Expansion Mics
- PN 960-001054/989-000171
