Ergotron Low Profile, Lift 70, Ergotron, Black 61-128-085
$815.00
| SKU: | 245229 |
|---|---|
| MPN: | 61-128-085 Link |
| Manufacturer: | http://www.ergotron.com/ |
| Brand: | Ergotron |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼

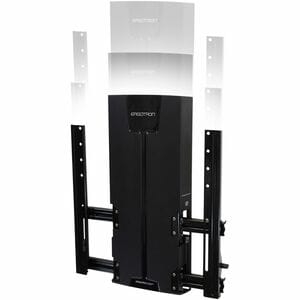

Glide Wall Mount, VHD
Large Display or TV Mount
Effortlessly raise and lower your TV or large display 16" (40 cm) and tilt the screen up to 10° to avoid glare. This revolutionary design delivers unprecedented height adjustability in an extremely low profile module. Move your display with only a light touch; down to watch from a seated position or up for viewing while standing.
Product Benefits
- Lift, lower and tilt for the perfect picture and comfortable viewing
- Display/TV moves with only a light touch with patented CF™ technology
- Discreet mounting hardware nearly disappears
- Raise TV during standing activities
- Display stays close to the wall, out of the way; mount depth is 2.5" (6.4 cm)
- Easy to use—simple installation and effortless operation
- Ratchet-free tilting
Specifications
▼
Tech Specs
-
SCREEN 46" - 63" †
-
CAPACITY 45–70 lbs
20.4–31.8 kg -
LIFT 16"
40.6 cm -
TILT 10°
-
PAN -
-
ROTATION -
-
MIS-D/E/F*
-
5 years
- Part Number: 61-128-085
- Description: Glide Wall Mount, VHD, Very Heavy Duty (black)
- Includes low-profile lift module, mounting template, tilt brackets, installation and mounting hardware, cable management hardware
- † Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility
- Glide Wall Mount will be hidden behind display in most cases when used with screen size of 46" or greater; when used with screens smaller than 46", the mount may be visible
- * Mounting holes must fit within spacing range below:
Horizontal = 100 mm (min.) to 400 mm (max.)
Vertical = 100 mm (min.) to 400 mm (max.) - Distance from wall to back of display = 2.5" (6.4 cm)
-
UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use) - Shipping Dimensions: 29" x 4" x 20.7" (77 x 11 x 54 cm)
- Shipping Weight: 36.4 lbs (16.5 kg)
- Warranty: Five (5) years
Vendor Info
▼
| Marketing Text | This revolutionary design delivers unprecedented height adjustability in an extremely low profile module. |
| PI Date | Feb 2014 |
| Brand Name | Ergotron |
| Manufacturer Web Site | http://www.ergotron.com |
| Product Type | Wall Mount |
| Display Size Supported | 46inch |
| Weight Capacity | 20.4 - 32Kg |
| Tilt | 10degree |
| Color | Black |
| Package Includes | Low-profile lift module, mounting template, tilt brackets, installation and mounting hardware, cable management hardware |
| Other Features | * Lift, lower and tilt for the perfect picture and comfortable viewing * Display/TV moves with only a light touch with patented CF Technology * Discreet mounting hardware nearly disappears * Raise TV during standing activities * Ratchet-free tilting |
| Warranty Information | 5 Years |
