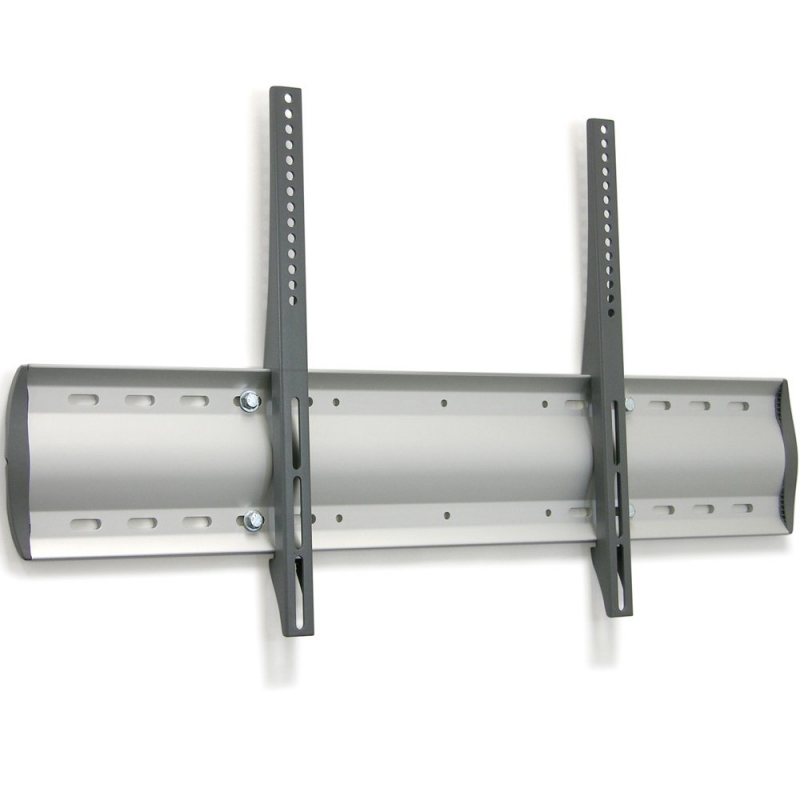

Ergotron Wm Medium Low Profile Lcd Plasma Wall Mount Min 32inmax 65in 79kg 60-604-003
| SKU: | 247070 |
|---|---|
| MPN: | 60-604-003 Link |
| Manufacturer: | http://www.ergodirect.com/ |
| Brand: | Ergotron |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
Description
The WM’s wall-hugging design hangs your large flat panel display just over an inch from the wall for an extremely slim profile. Yet this TV wall mount costs about half that of competing models. Engineered to install in three easy steps, the WM is sturdy and stable.
Technical Drawing
Technical Specifications
| | | | | | | |
| LCD Size | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| 32" and above | Up to 175 lbs 79 kg | - | - | - | - | MIS-D/E/F |
Product Information
| Part Number | 60-604-003 (replacement for 60-578-003) |
| Description | WM Low Profile Wall Mount (silver) |
| Includes |
|
| Universal Display Attachment | Mounting holes must fit within spacing range below... Horizontal = 100 mm (min.) to 600 mm (max.) Vertical = 100 mm (min.) to 450 mm (max.). |
| Premium Construction | Composed of extruded aluminum and steel. |
| Mounting Options | Wall plate attaches to vertical wall surfaces. Includes hardware for mounting to wood studs (16" centered studs) or concrete walls. |
| Note |
|
| Profile off the Wall | 1.25" (32 mm) |
| UL Certified and Listed | To UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use). |
| Shipping Dimensions | 33.3"W x 10.4"H x 2.2"D (84.5 x 26 x 5.5 cm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Warranty | Five (5) years |
Benefits
-
Installs in three simple steps.
-
Extremely slim profile - just over an inch from the wall.
-
Fits most screens greater than 32" up to 175 lbs (79 kg).
-
Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display.
-
Includes fasteners for mounting to wood studs or concrete walls.
Specifications
| Model | 60-604-003 |
| Manufacturer | Ergotron |
| Part Number | 60-604-003 |
| UPC | 698833011661 |
| Color | Silver |
| Monitor Size | 32" and above |
| Weight Capacity | Up to 175 lbs (79 kg) |
| Mounting Pattern | Universal Display Attachment: Mounting holes must fit within spacing range below... Horizontal = 100 mm (min.) to 600 mm (max.) Vertical = 100 mm (min.) to 450 mm (max.) |
| Mounting Options | Fixed Wall |
| Profile off the Wall | 1.25" (32 mm) |
| Shipping Dimensions | 33.3"W x 10.4"H x 2.2"D (84.5 x 26 x 5.5 cm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Warranty | Five (5) years |
Vendor Info
| Marketing Text | The WM's wall-hugging design hangs your large flat panel display just over an inch from the wall for an extremely slim profile. Yet this TV wall mount costs about half that of competing models. Engineered to install in three easy steps, the WM is sturdy and stable. |
| PI Date | Jul 2017 |
| Brand Name | Ergotron |
| Manufacturer Web Site | http://www.ergotron.com |
| Product Type | TV Mount |
| Display Size Supported | 32 - 90inch |
| Weight Capacity | 79.4Kg |
| Mounting Hole Pattern | 100 - 600 x 100 - 450mm |
| Color | Silver |
| Material | Aluminum and Steel |
| Other Features | * Installs in three simple steps * Extremely slim profile -just over an inch from the wall |
